Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

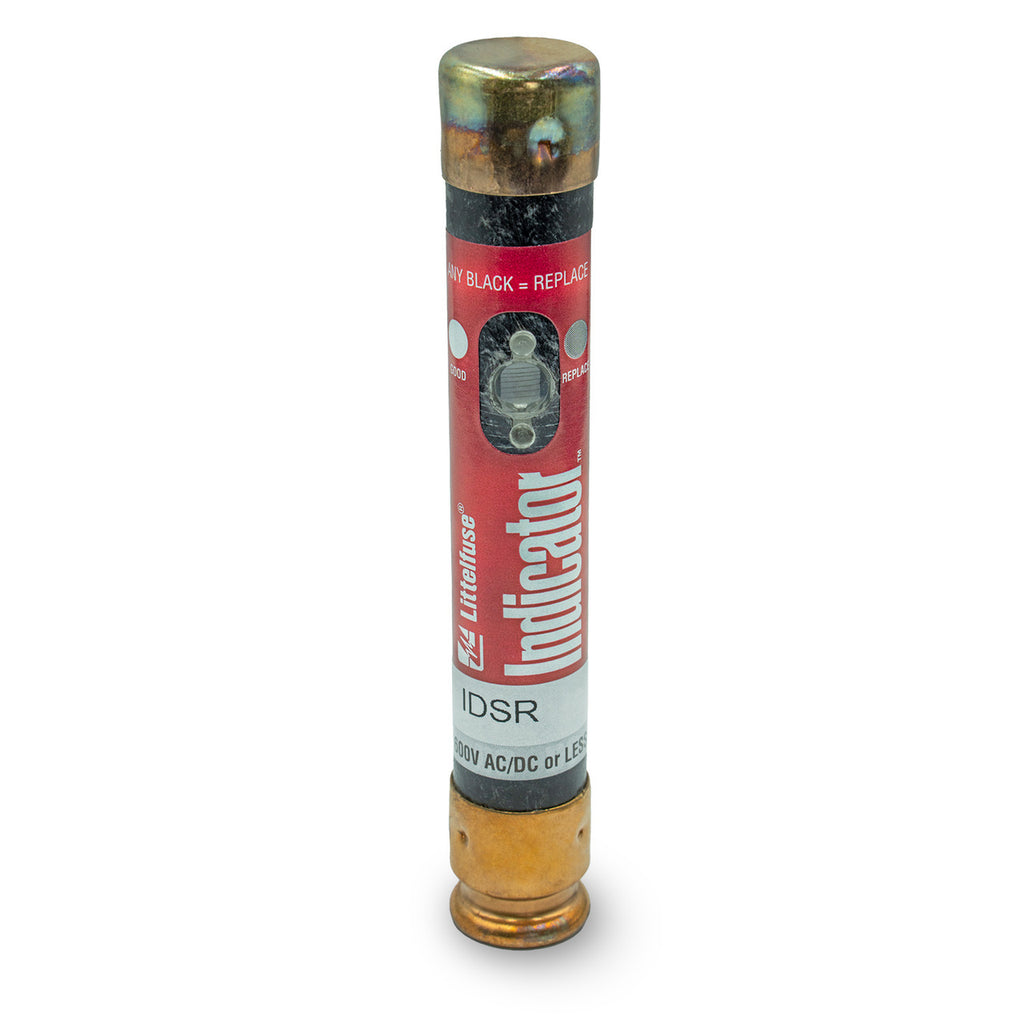

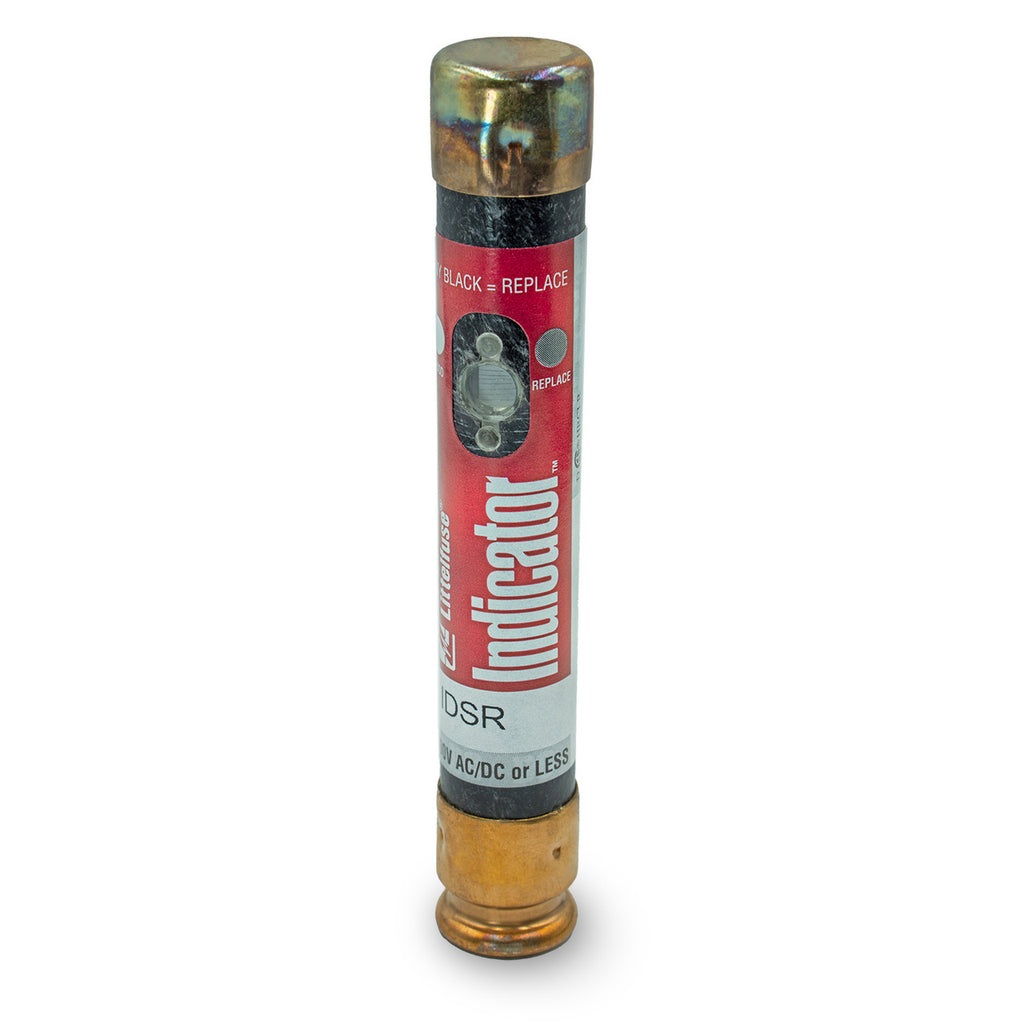

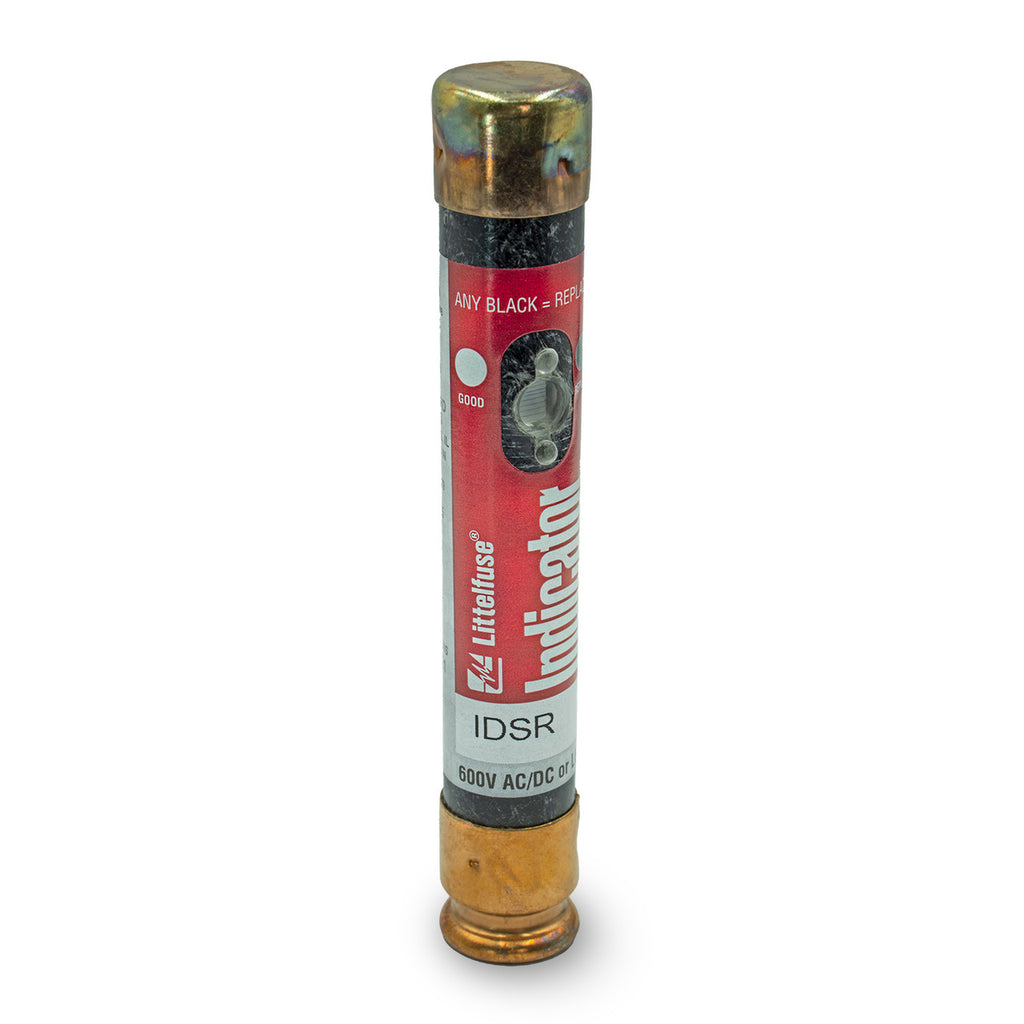

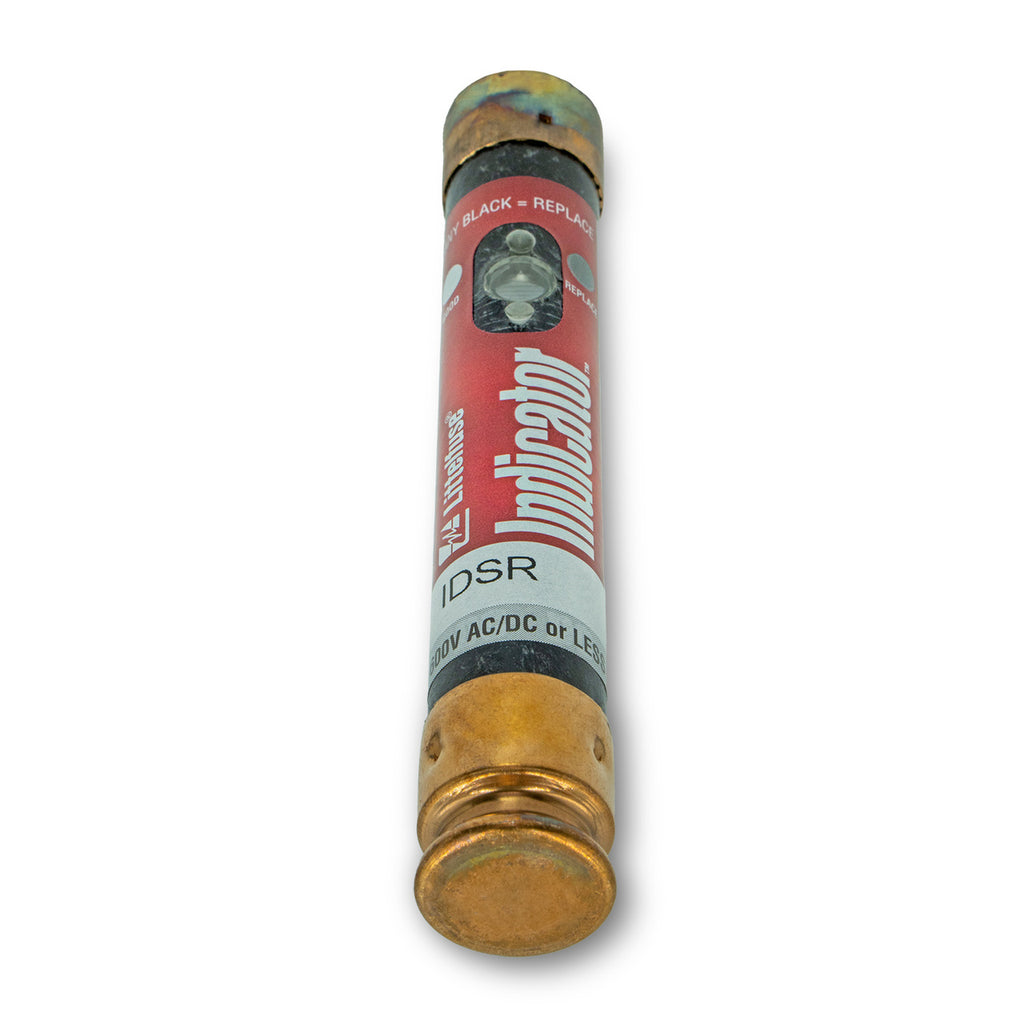

IDSR007
IDSR007 is a 7 amp, 600 volt AC/DC Class RK5 time-delay indicating fuse designed for reliable overcurrent protection.This Littelfuse IDSR007 fuse features a dual-element, time-delay design with visual blown fuse indication for fast fault identification. It is rated for 600 V AC and 600 V DC operation with a 20 kA interrupt rating at 600 V DC. The cylindrical cartridge fuse measures 5 inches in length and 13/16 inch in diameter, fitting rejection-style fuse blocks such as the LFR60 series. It meets UL 248-12 Class RK5 standards and is CSA and cUL certified, making it suitable for DC circuits, solar inverters, motors, transformers, solenoids, and fluorescent lighting.
- Amperage: 7 A
- Voltage Rating: 600 V AC / 600 V DC
- Interrupt Rating: 20 kA at 600 V DC
- Fuse Class: RK5
- Speed: Time-Delay (Dual Element)
- Visual Indication: Yes (Indicating)
- Mounting Type: Cartridge, Rejection Style
- Fuse Size: 5 in length x 13/16 in diameter
- Standards: UL 248-12, CSA, cUL
- Body Style: Cylindrical
Specifications
- Part Number: IDSR007
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 7
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801552
- GTIN : 00079458015522
- Country of Origin : Mexico
- Weight : 0.18
- Certification : IEC 60127-2
