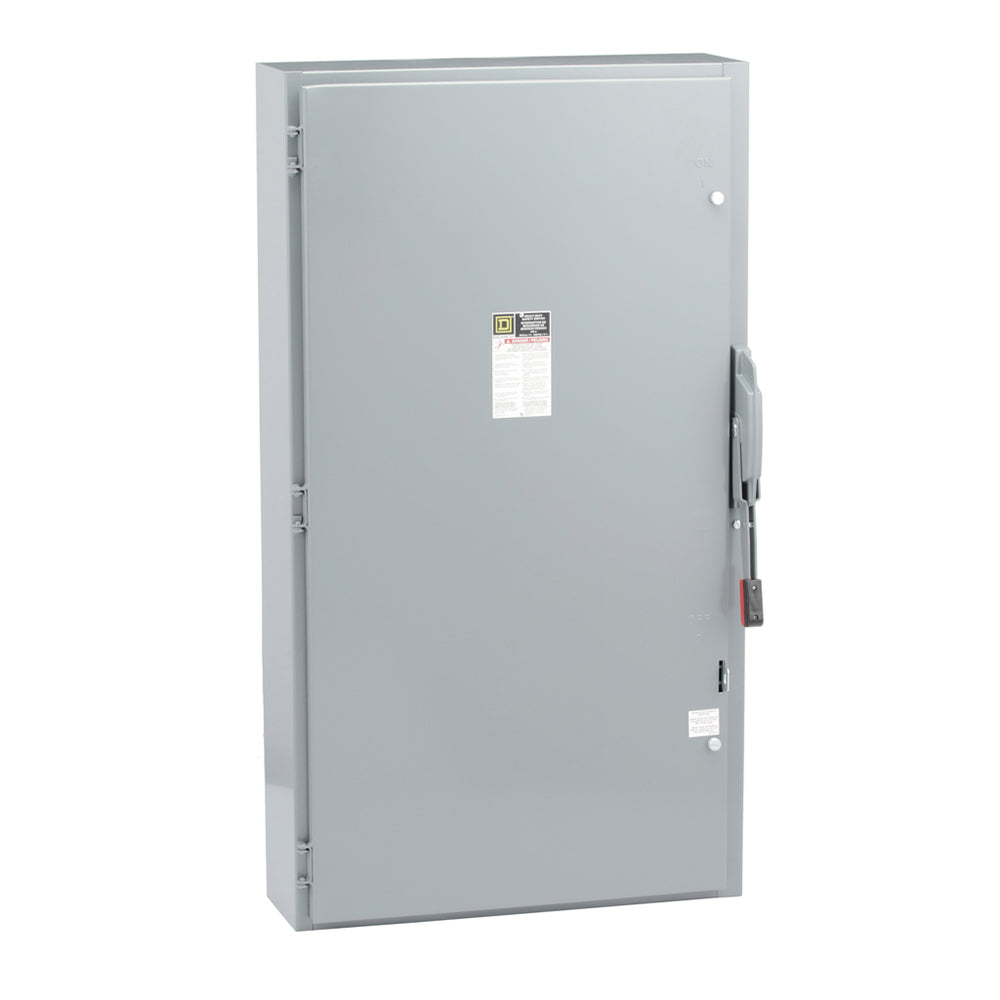

HU465 - Square D 400A 600VAC 4-Pole Heavy Duty Non-Fusible Safety Switch NEMA 1 Surface Mount

HU465

HU465 is a Square D heavy duty non-fusible safety switch rated for 400 amps and 600 volts AC/DC with 4 poles and NEMA 1 enclosure.This safety switch features a 4-pole configuration designed for surface mounting, suitable for industrial and commercial applications. It supports 3-phase systems with a 400 amp current rating and 600 VAC/DC voltage rating. The enclosure is made of cold rolled steel with a painted finish, providing durability and protection. It has a short circuit current rating of 200 kA and is UL 98 listed, compliant with ARRA, Buy American Act, and RoHS standards. The switch is designed for indoor use with a temperature rating from -22 to 104 degrees Fahrenheit.

Key Specifications
• Amperage: 400 A
• Voltage Rating: 600 VAC/DC
• Poles: 4
• Mounting Type: Surface
• Enclosure Type: NEMA 1
• Interrupt Rating: 200 kA
• Series/Frame: E4
• Material: Cold Rolled Steel
• Contact Form: Single Throw
• Certifications: UL 98, ARRA, Buy American Act, RoHS Compliant
• Horsepower Rating: 50 hp at 600 VDC
• Temperature Rating: -22 to 104 °F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HU465
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 4
• AIC rating : 200kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Wire : 4
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 1
• Protection : Solid State
• Compatible Frames : ED



Product Data

• UPC : 785901259190
• Dimensions : 50.25 in (1276.35 mm) x 33.88 in (860.55 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 250
