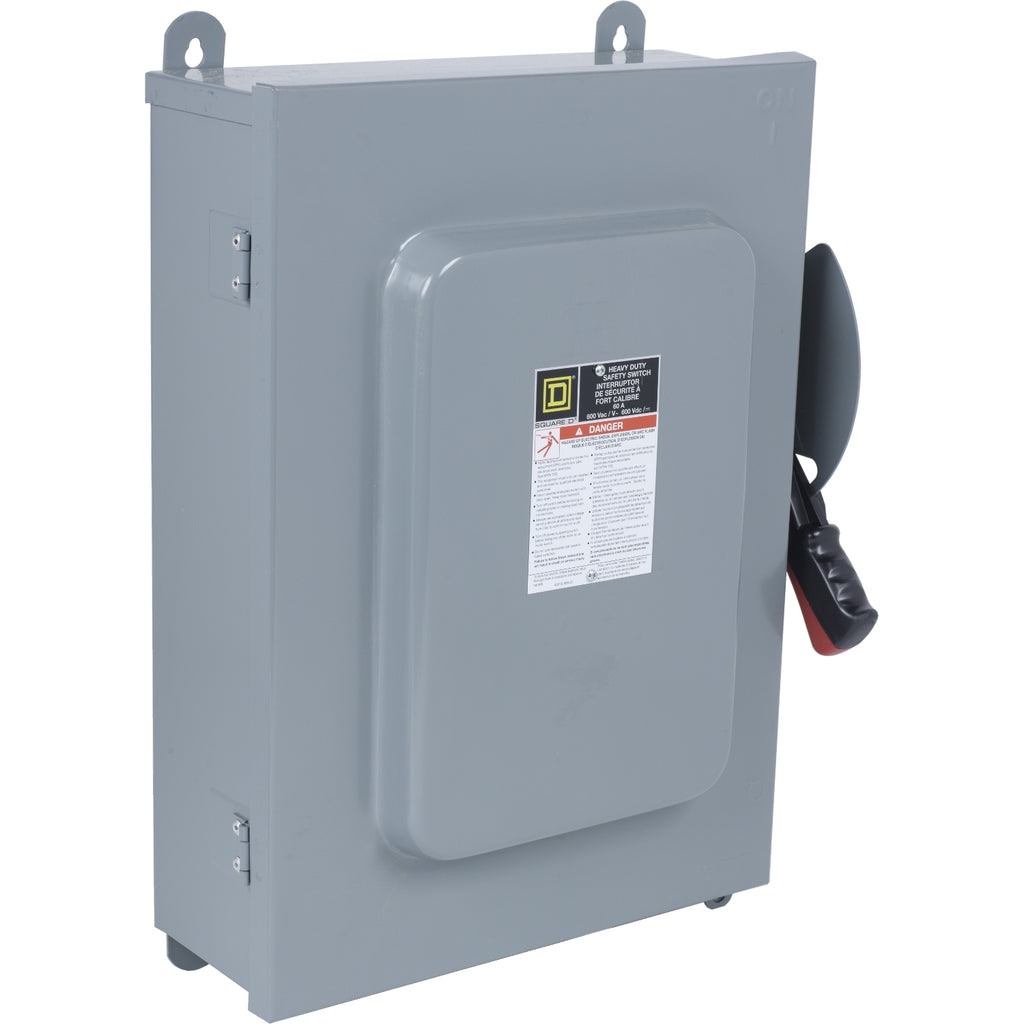

HU462AWK - Square D 60A 600V 4-Pole Heavy Duty Safety Switch NEMA 3R/12 Galvannealed

HU462AWK

HU462AWK is a Square D heavy duty safety switch rated for 60 amps and 600 volts with 4 poles and a NEMA 3R/12 galvannealed enclosure.This single throw, non-fusible safety switch features a galvannealed/painted steel enclosure designed for indoor/outdoor use. It has a quick make/quick break operating mechanism with visible blades for positive OFF indication. The switch supports up to 60 hp at 600 VAC three phase and includes a dual cover interlock and handle lock-off provision for enhanced safety. Dimensions are 16.13 in W x 6.8 in D x 20.5 in H.

Key Specifications
• Amperage: 60 A
• Voltage: 600 V AC/DC
• Poles: 4
• Mounting Type: Surface mount
• Interrupt Rating: 50 hp at 600 VAC two phase, 60 hp at 600 VAC three phase, 30 hp at 600 VDC
• Enclosure Type: NEMA 3R/12
• Finish: Galvannealed/Painted steel
• Actuator Type: Single Throw
• Certifications: UL Listed
• Dimensions: 16.13 in W x 6.8 in D x 20.5 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU462AWK
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600 AC/DC
• Amperage : 60
• Phase : 3
• Poles : 4
• Configuration : Single
• Nema Rating : NEMA 12
• Compatible Frames : ED

Product Data

• UPC : 785901505105
• Country of Origin : United States
• Dimensions : 20.5 in (520.7 mm) x 16.13 in (409.70 mm) x 6.8 in (172.7 mm) (Height x Width x Depth)
• Weight : 29.599
• Certification : UL listed
