Product Info
- Manufacturer:Square D
- Sub-Category:Disconnect
Description
HU366NR

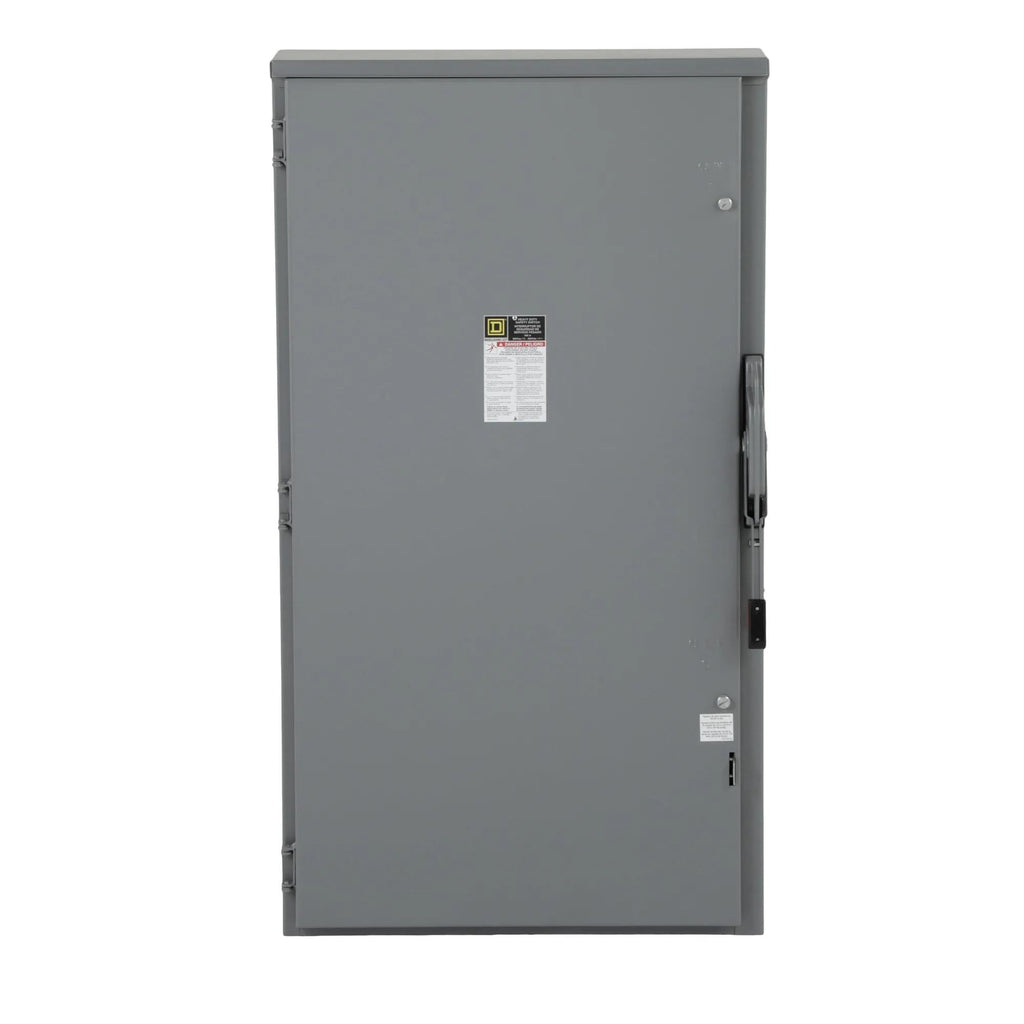

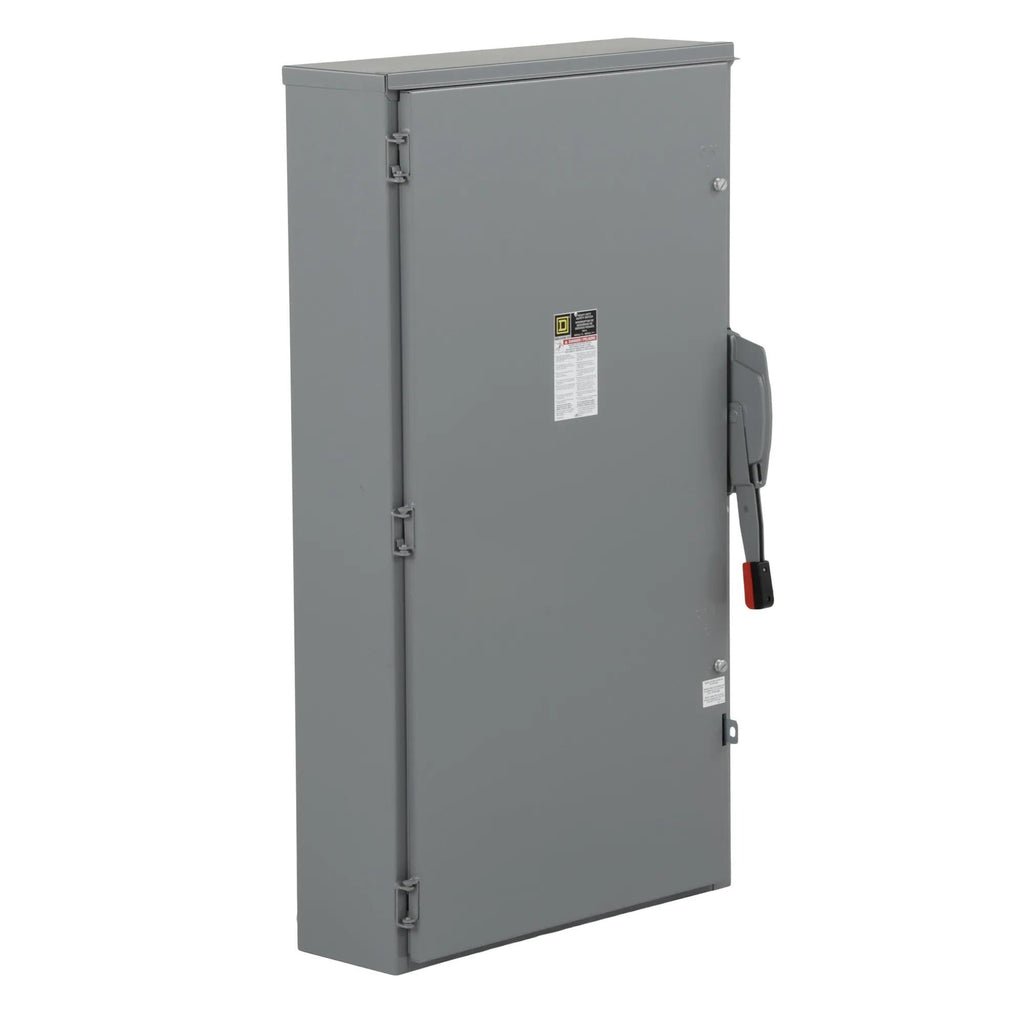

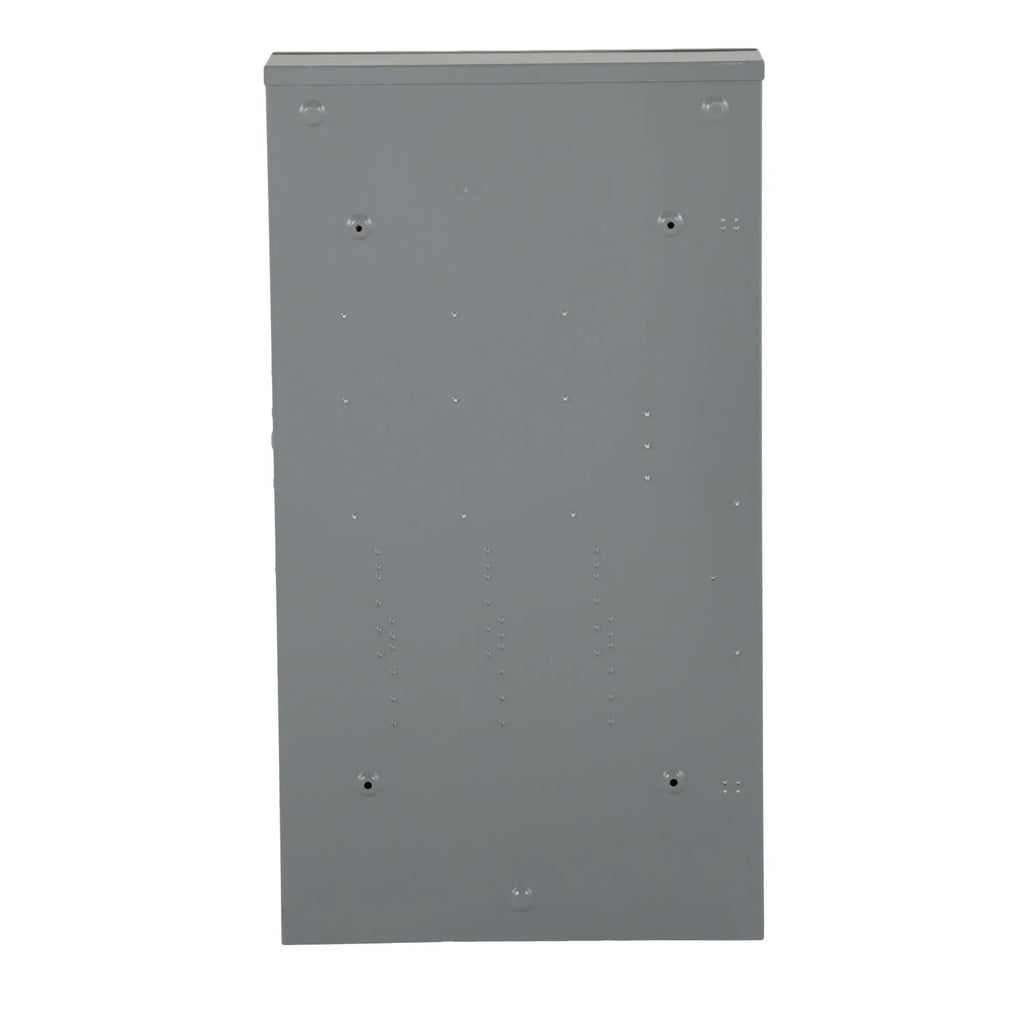

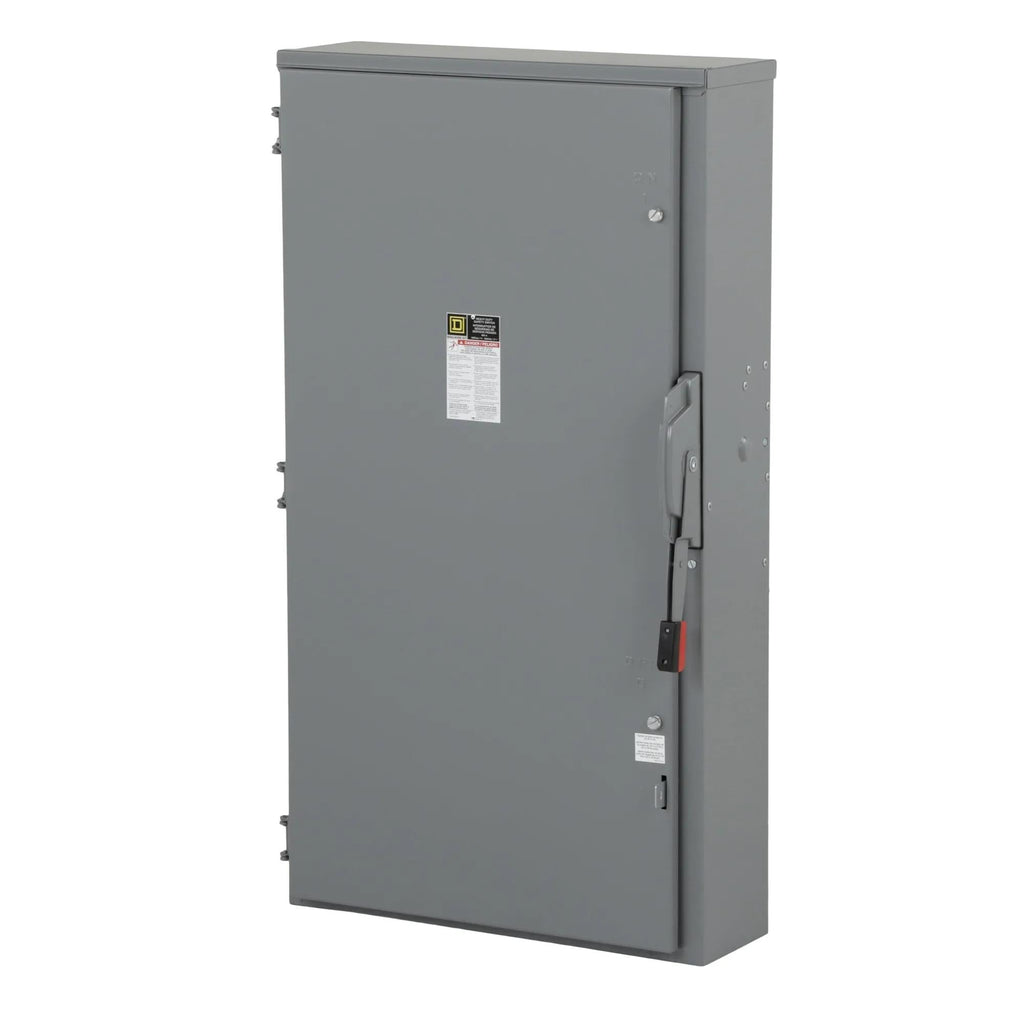

HU366NR is a heavy-duty, non-fusible safety switch designed for reliable circuit disconnect in demanding industrial and commercial applications. This 3-pole switch features a robust construction and is suitable for both AC and DC systems.Engineered for surface mounting, the HU366NR offers a 600A current rating and 600VAC/DC voltage rating. It supports a 3-phase, 4-wire configuration and is equipped with a factory-installed neutral. The switch is rated for 500 horsepower and is built to NEMA 3R standards for durability in harsh environments.
- Part Number: HU366NR
- Manufacturer: Square D
- Type: Safety Switch, Non-Fusible
- Amperage: 600A
- Voltage: 600VAC, 600VDC
- Poles: 3
- Mounting Type: Surface
- Horsepower: 500HP
- Configuration: 3 Phase, 4 Wire
- Neutral: Factory Installed
- Enclosure Rating: NEMA 3R
Specifications
- Part Number: HU366NR
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Switch Type : Non-Fusible
Product Data
- UPC : 785901112211
- GTIN : 00785901112211
- Country of Origin : Mexico
- Dimensions : 50.31 in (1277.87 mm) x 27.88 in (708.15 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
- Weight : 177.999 lb
- Certification : UL
