Product Info
- Manufacturer:Square D
- Sub-Category:Disconnect
Description
HU365NR

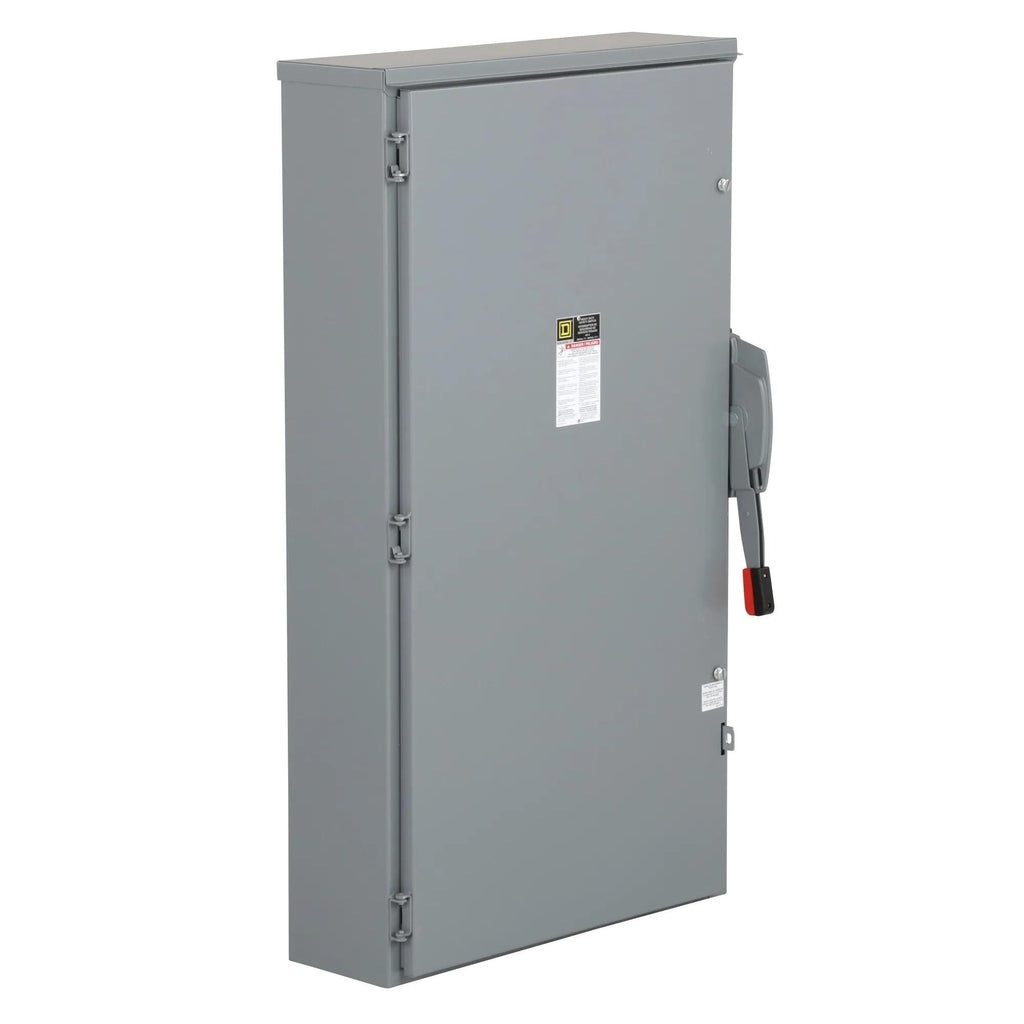

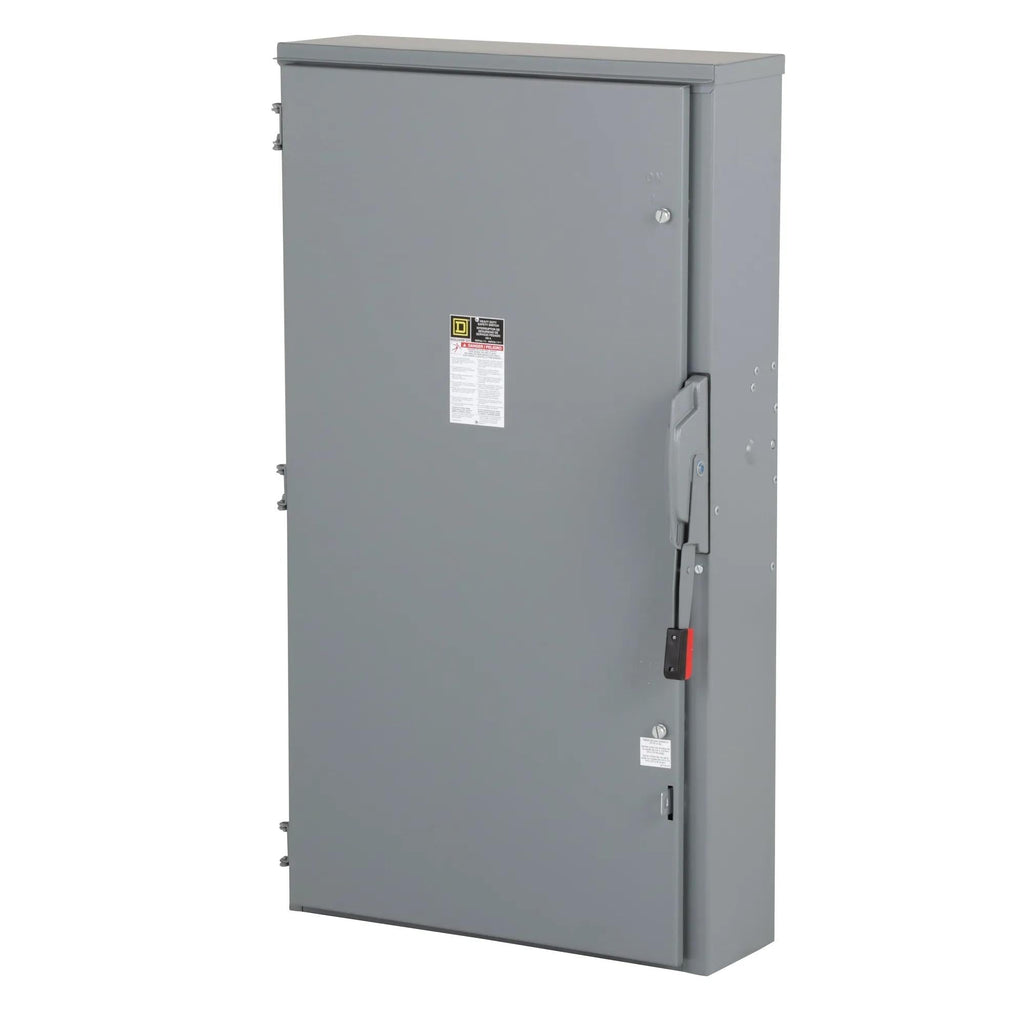

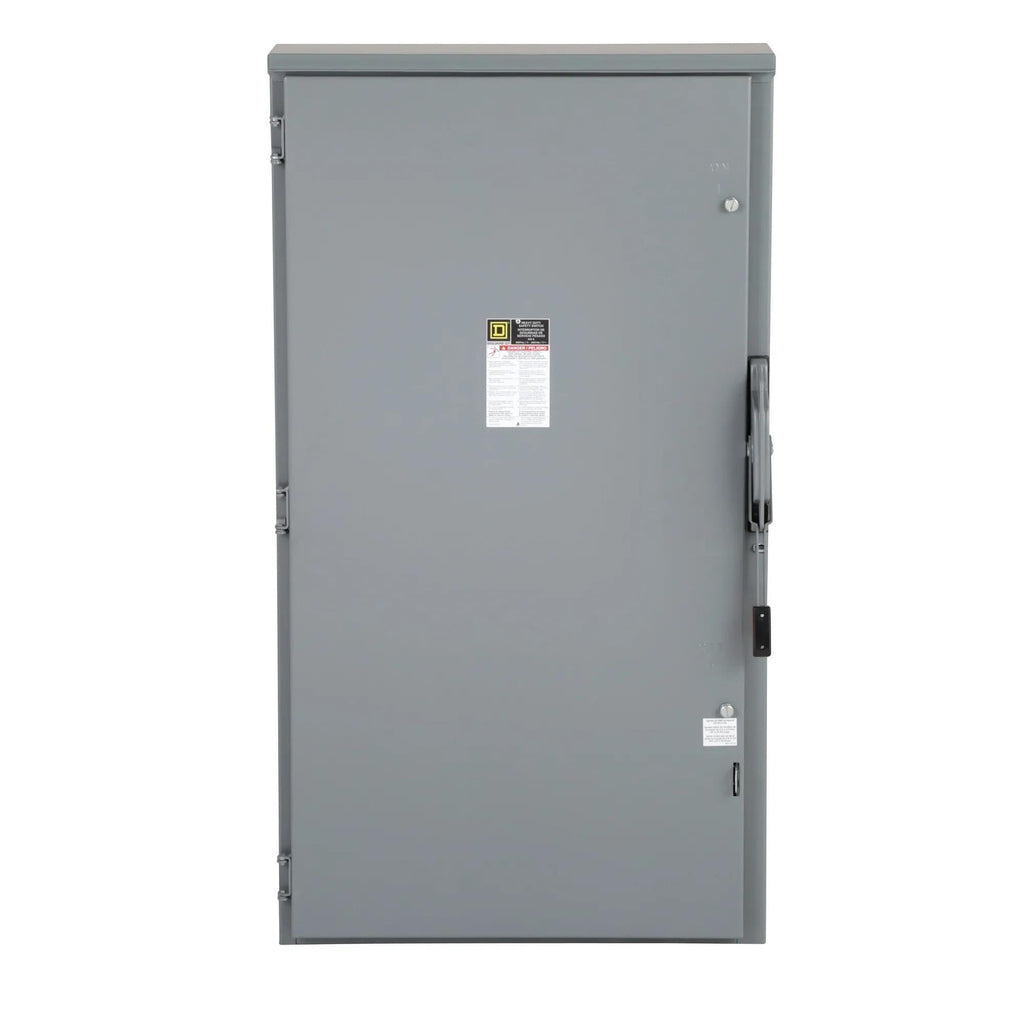

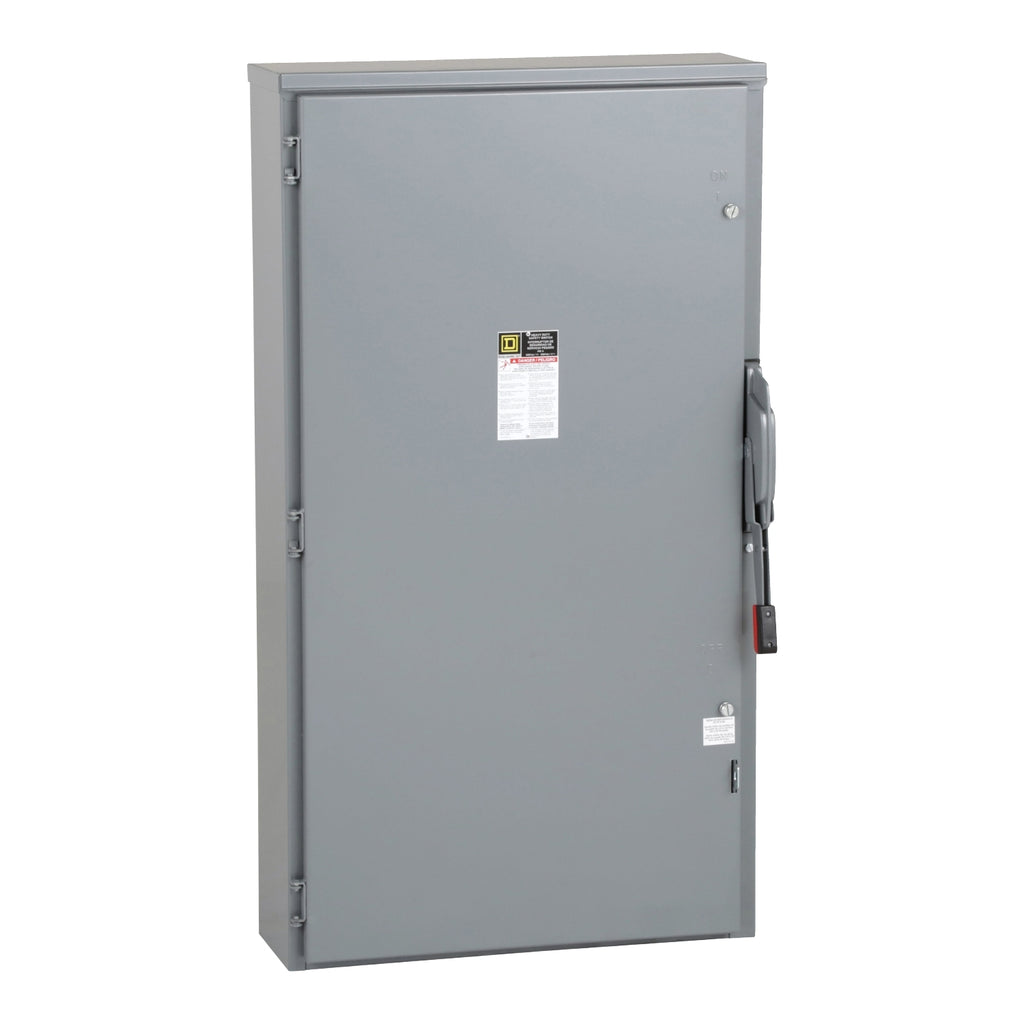

HU365NR is a heavy duty, 400 Amp, 3-pole, non-fusible safety switch designed for reliable power distribution and protection.This Square D safety switch features a single throw mechanism with a NEMA 3R rated enclosure, suitable for outdoor and indoor use. It supports 600 VAC operation and is constructed with a galvannealed steel enclosure for durability. The switch is designed for heavy duty applications with a 3-pole configuration and a 400 Amp rating, providing robust performance in demanding electrical environments.
- Key Specifications
- Amperage: 400 Amp
- Voltage: 600 VAC
- Poles: 3
- Type: Single Throw Safety Switch
- Fusible: Non-Fusible
- Enclosure Rating: NEMA 3R
- Material: Galvannealed Steel
- Mounting: Heavy Duty
- Part Number: HU365NR
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Switch Type : Non-Fusible
- UPC : 785901675822
- GTIN : 00785901675822
- Country of Origin : Mexico
- Dimensions : 50.31 in (1277.87 mm) x 27.88 in (708.15 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
- Weight : 167 lb
- Certification : UL
