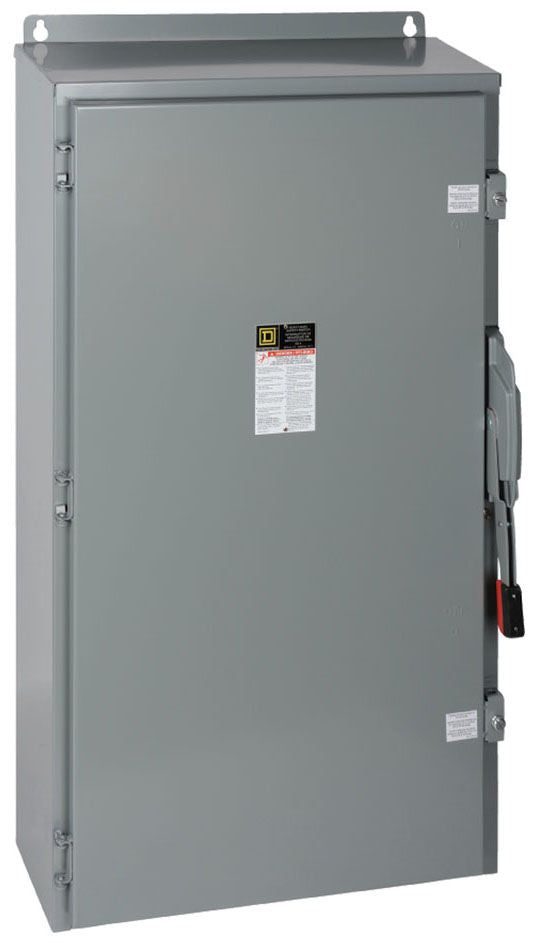

HU365AWK - Square D Heavy Duty Non-Fusible Safety Switch, 400A, 600VAC/VDC, 3 Pole, NEMA 3R/12, Series E, Indoor/Outdoor, Single Throw, 200kA Interrupt

HU365AWK

HU365AWK is a Square D heavy duty, non-fusible safety switch designed for reliable power distribution in demanding environments.

This single throw safety switch features a robust steel enclosure with galvannealed finish, suitable for both indoor and outdoor applications. It offers a high interrupting rating, dual cover interlock for safety, and accepts a wide range of wire sizes. The switch is rated for heavy industrial use and is certified for NEMA 3R/12 environments.

Key Specifications
• Amperage: 400A
• Voltage: 600V AC/DC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 200kA at 600V
• Series/Frame: Series E, Type HU
• Trip Unit: Not applicable (non-fusible)
• Certifications: UL listed, NEMA 3R/12
• Enclosure: Steel, galvannealed finish
• Wire Range: 1/0 AWG to 750 kcmil (copper/aluminum)
• Horsepower Rating: 50 hp at 250 VDC, 125 hp at 240 VAC, 250 hp at 480 VAC, 350 hp at 600 VAC
• Dimensions: 26.25" W x 10.13" D x 46.25" H
• Features: Dual cover interlock, front removable mechanical lugs, quick-make/quick-break mechanism, highly visible ON/OFF markings

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU365AWK
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 12
• Compatible Frames : ED

Product Data

• UPC : 785901452096
• GTIN : 00785901452096
• Country of Origin : Mexico
• Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 175.001 lb
• Certification : UL listed
