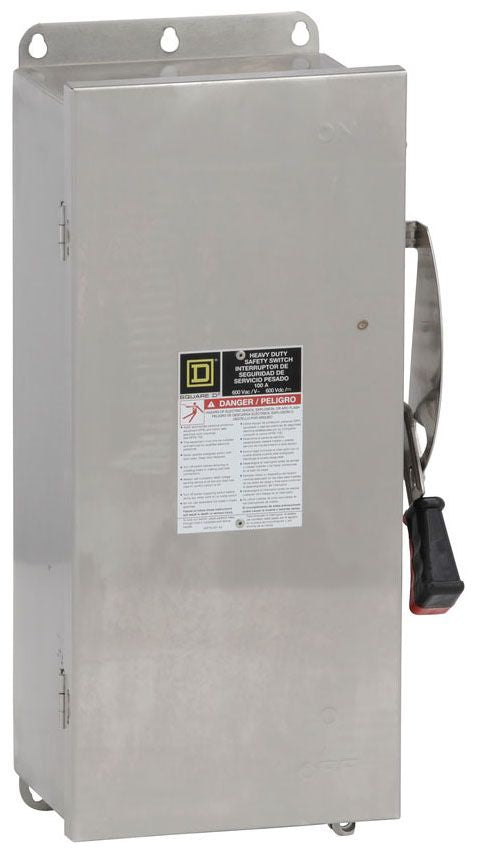

HU363DS - Square D 100 Amp 600V 3-Pole Heavy Duty Non-Fusible Safety Switch, NEMA 4/4X/5, 304 Stainless Steel, HU Series, Quick Make/Break, Dual Cover Interlock

HU363DS

HU363DS is a Square D heavy duty, non-fusible safety switch designed for reliable power distribution in demanding environments.

This 3-pole safety switch is rated for 100A at 600V AC/DC, housed in a 304 stainless steel enclosure with NEMA 4, 4X, and 5 certifications for watertight, dust-tight, and corrosion-resistant performance. It features a quick make, quick break operating mechanism and a dual cover interlock that prevents the cover from opening when the switch is on and prevents the switch from being turned on when the cover is open. Suitable for indoor and outdoor use, this switch is ideal for service entrance applications when equipped with a neutral assembly or equipment grounding kit.

Key Specifications
• Amperage: 100A
• Voltage: 600V AC/DC
• Poles: 3
• Mounting Type: Flush or surface (enclosure type not specified)
• Interrupt Rating: 200 kA
• Series/Frame: HU
• Trip Unit: Not applicable (non-fusible)
• Certifications: NEMA 4, 4X, 5
• Enclosure Material: 304 stainless steel
• Operation: Quick make, quick break
• Interlock: Dual cover interlock
• Environmental: Watertight, dust-tight, corrosion resistant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU363DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 4/4X
• Compatible Frames : NSX

Product Data

• UPC : 785901023715
• GTIN : 00783164089318
• Dimensions : 20.82 in (528.83 mm) x 11.25 in (285.75 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
• Weight : 0.21 lb
• Certification : UL
