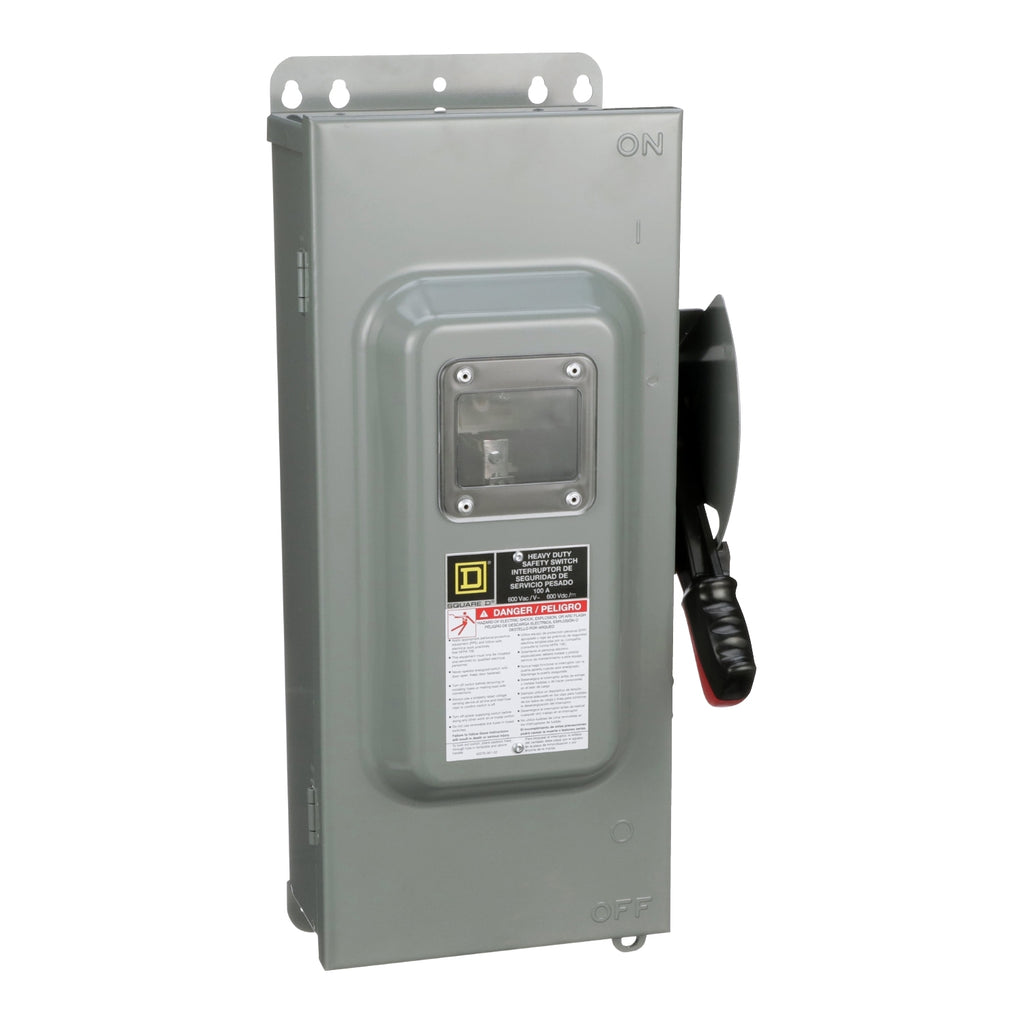

HU363AWKVW - Square D 100A 600VAC/VDC 3 Pole Heavy Duty Non-Fusible Safety Switch NEMA 12 & 3R Viewing Window

HU363AWKVW

HU363AWKVW is a Square D heavy duty non-fusible safety switch rated for 100 amps and 600 volts AC/DC with 3 poles and a viewing window.This switch features a NEMA 12 indoor dust and drip tight enclosure that also meets NEMA 3R requirements when the drain plug is removed. It supports up to 100 horsepower at 600 volts AC and DC, suitable for both single and three-phase applications. The switch is UL listed and designed for heavy duty industrial use with a Type TPST (Triple Pole Single Throw) configuration.

• Amperage: 100 A
• Voltage: 600 VAC/VDC
• Number of Poles: 3
• Enclosure Type: NEMA 12 & 3R
• Non-fusible design
• Horsepower Rating: 100 HP at 600 VAC
• Viewing window for easy status check
• UL Listed
• Frame Type: HU Series
• Suitable for service entrance with proper grounding

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU363AWKVW
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 3R/12

Product Data

• UPC : 78590120888
• GTIN : 00785901208884
• Dimensions : 20.5 in (520.7 mm) x 10.5 in (266.7 mm) x 7 in (177.8 mm) (Height x Width x Depth)
• Weight : 19.44
