Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU362RB

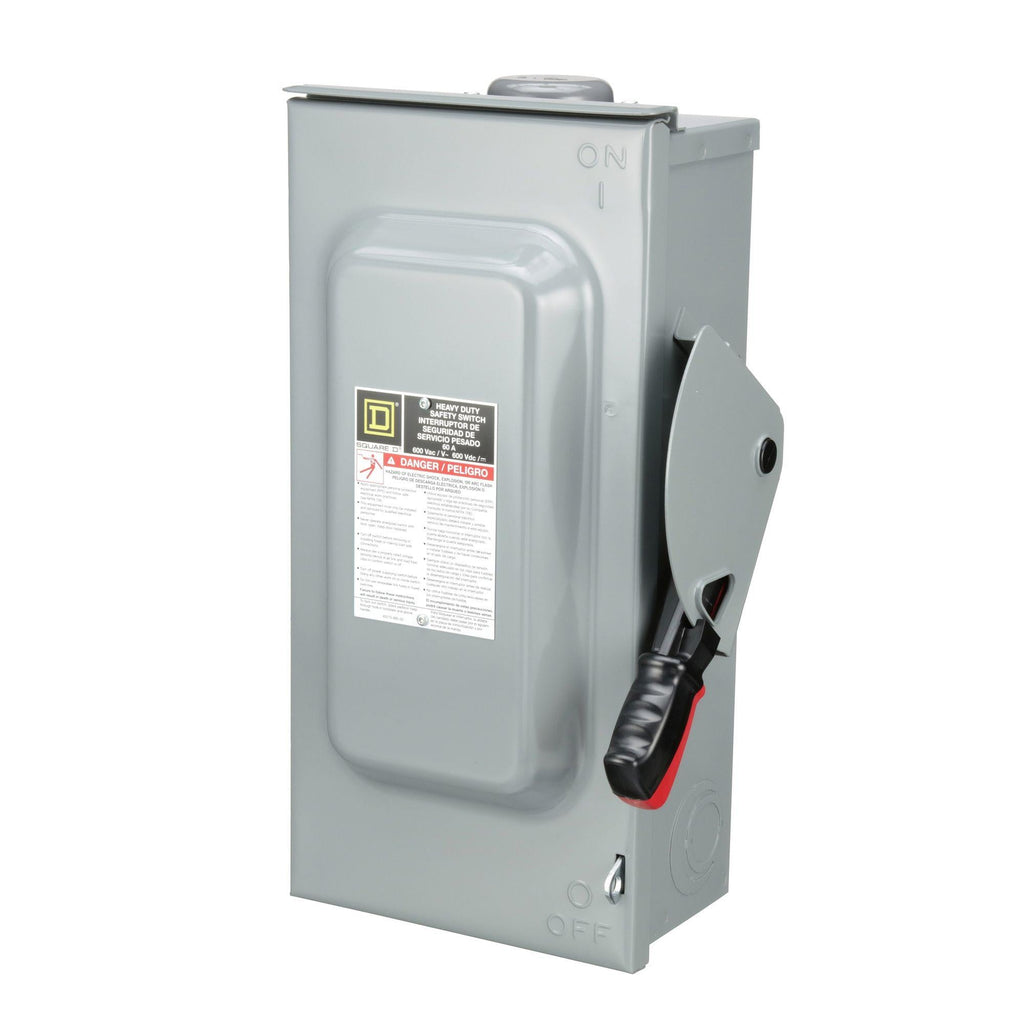

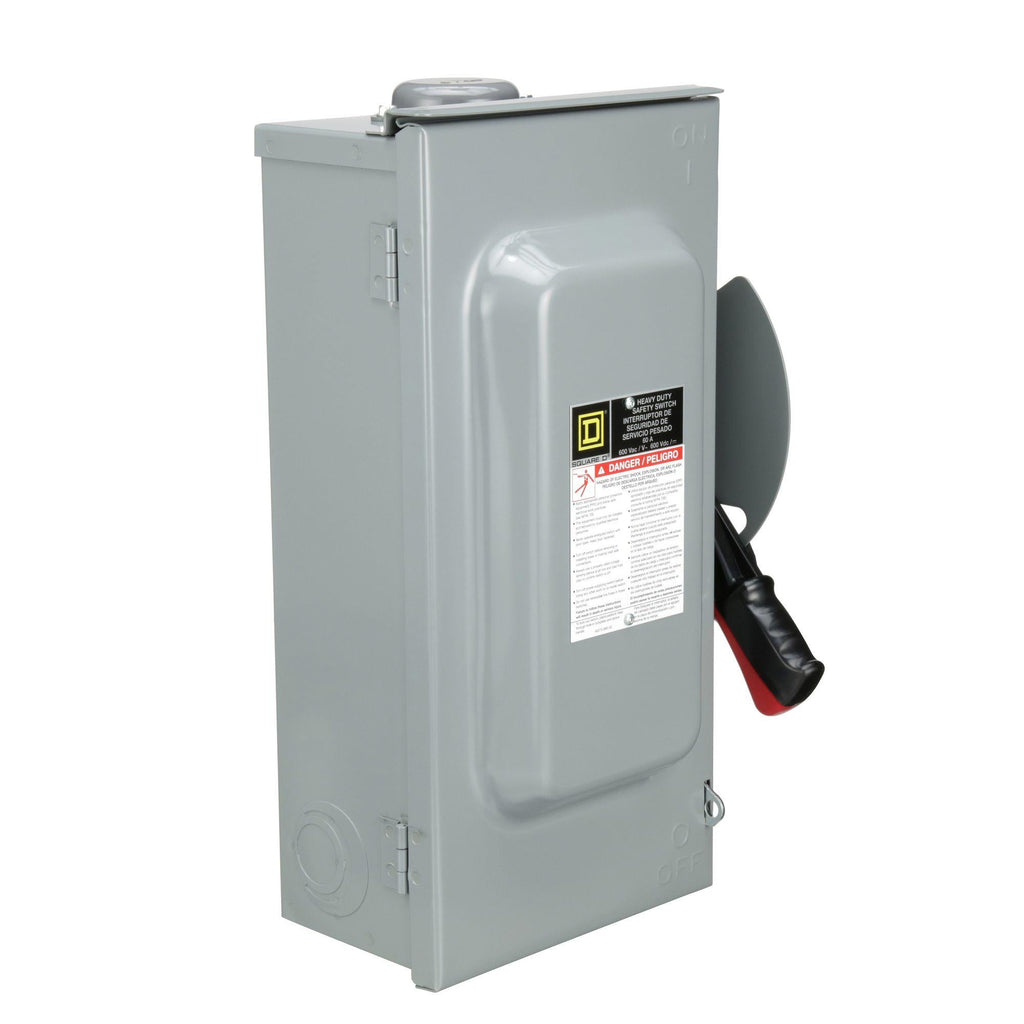

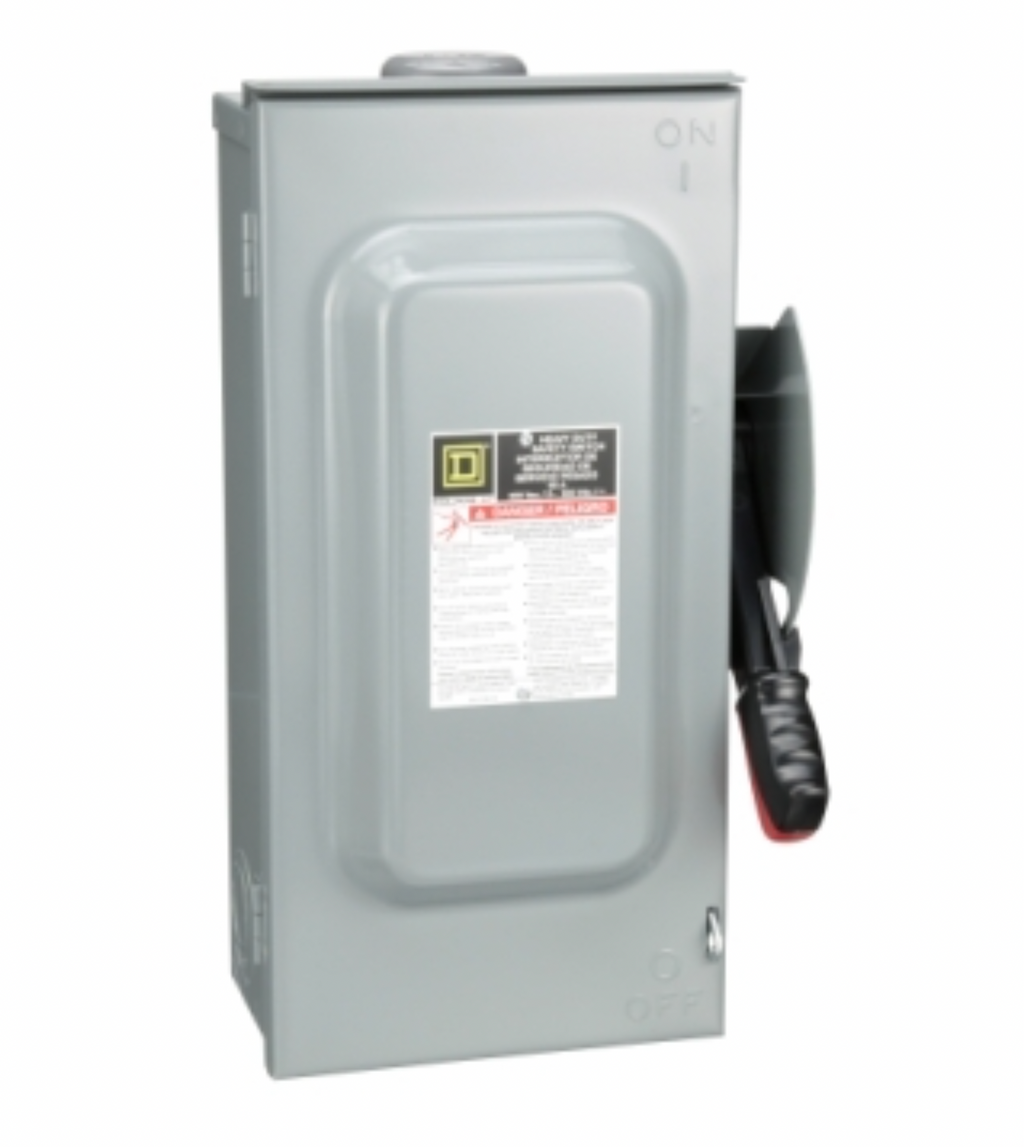

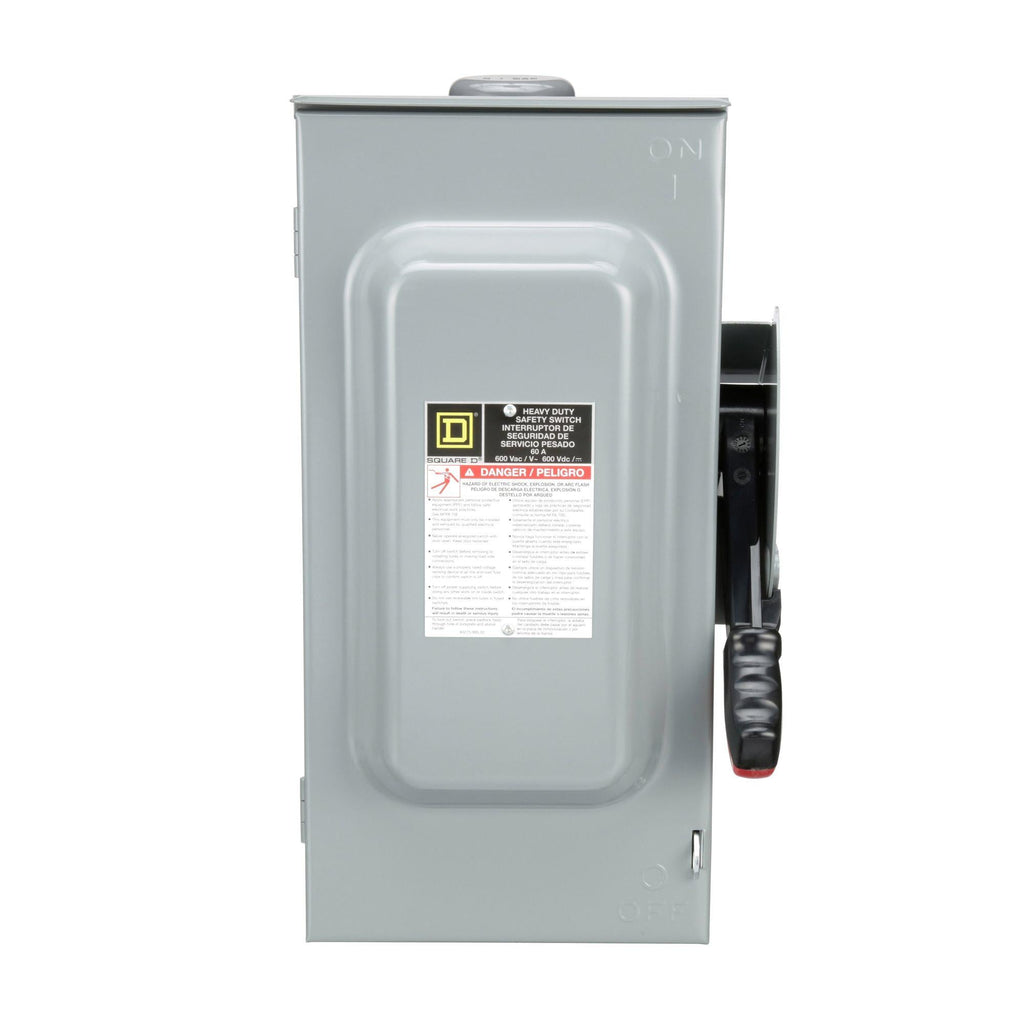

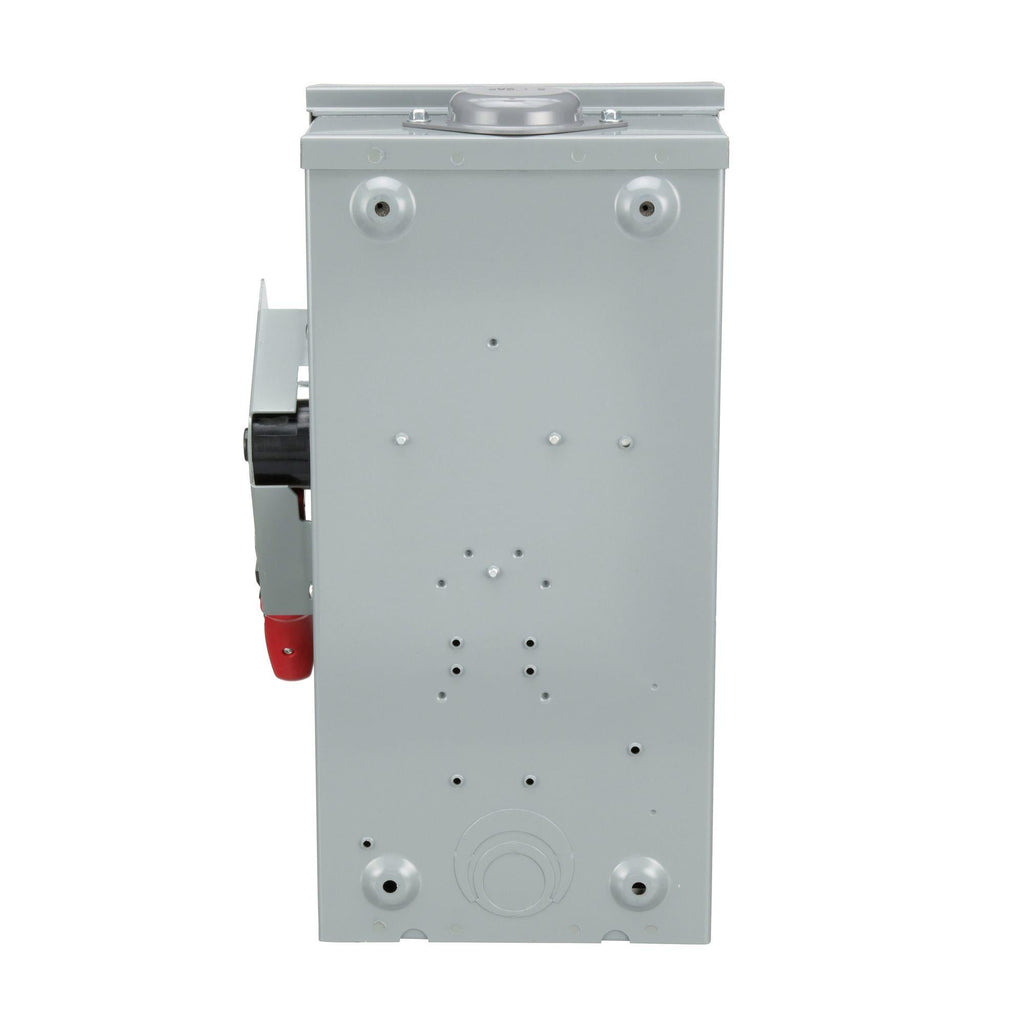

HU362RB is a 3-pole, 60 amp, 600V AC/DC non-fusible safety switch designed for heavy-duty applications and service disconnects. This Square D model features a quick-make/break mechanism and is rated for 3-phase systems. The HU362RB is constructed with a galvannealed steel enclosure and is NEMA 3R rated for indoor or outdoor use. It is suitable for use as a service disconnect in commercial and industrial installations where a reliable, non-fusible disconnect is required.
- Part Number: HU362RB
- Manufacturer: Square D
- Amperage: 60A
- Voltage: 600V AC/DC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 200kA
- Series/Frame: E
- Enclosure Rating: NEMA 3R
- Material: Galvannealed Steel
- Fusibility: Non-Fusible
- Certifications: UL Listed
Specifications
- Part Number: HU362RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 3R
Product Data
- UPC : 785901505617
- GTIN : 00783164008838
- Dimensions : 21.25 in (539.75 mm) x 10.5 in (266.7 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
- Weight : 15.201 lb
