Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU362NRB

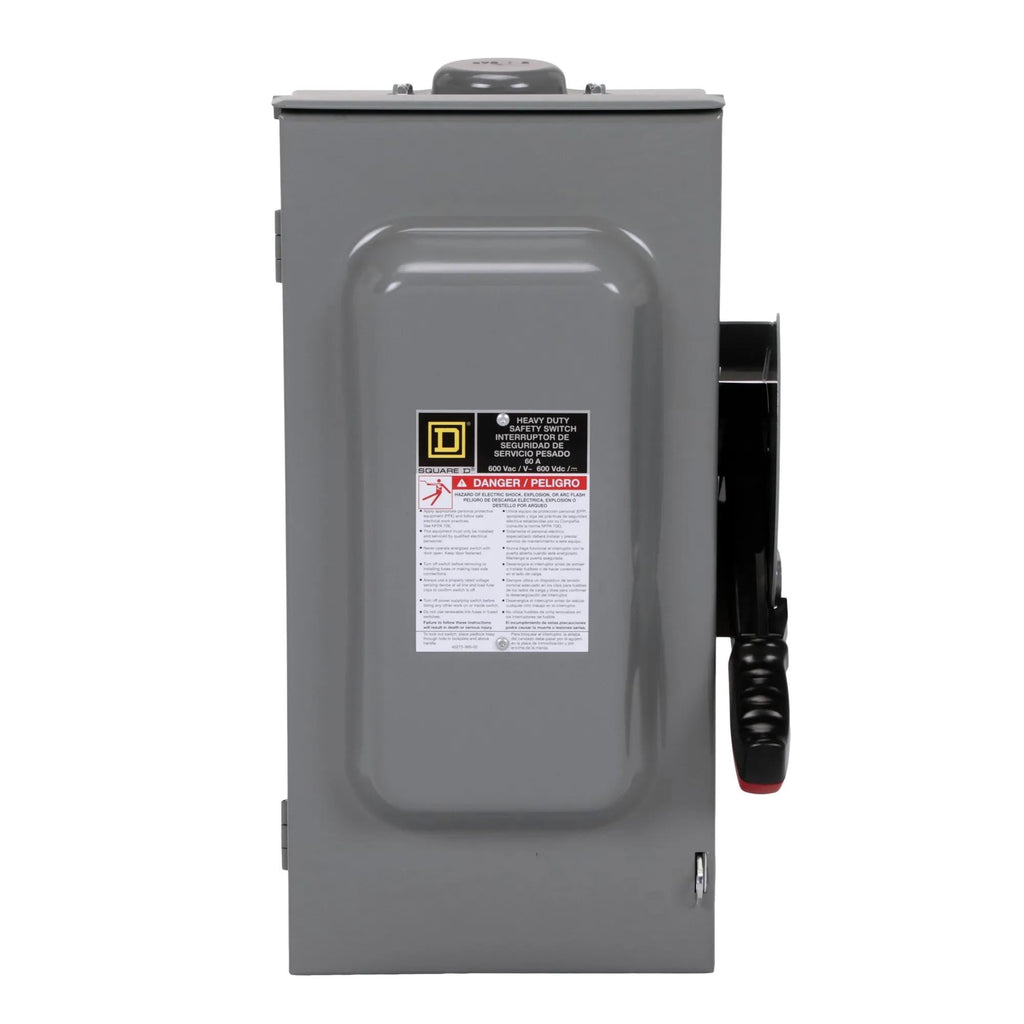

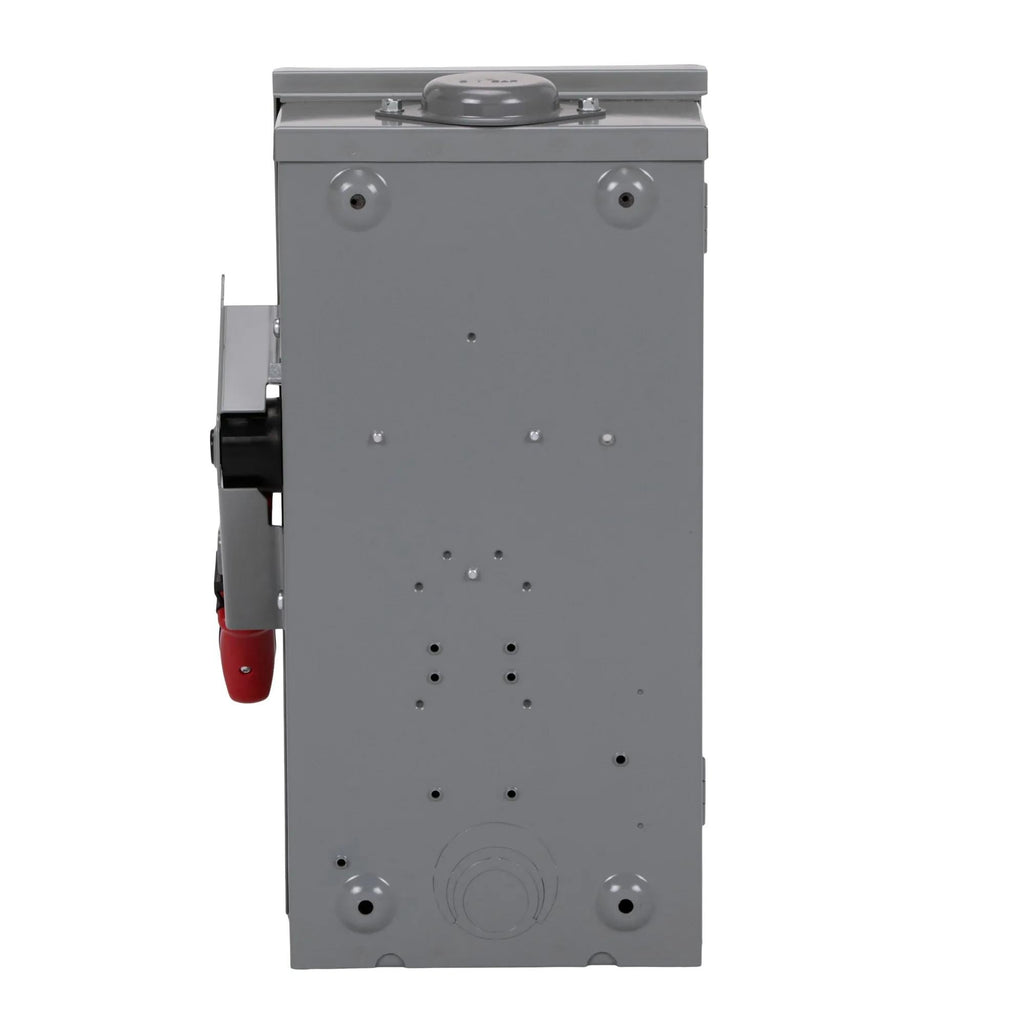

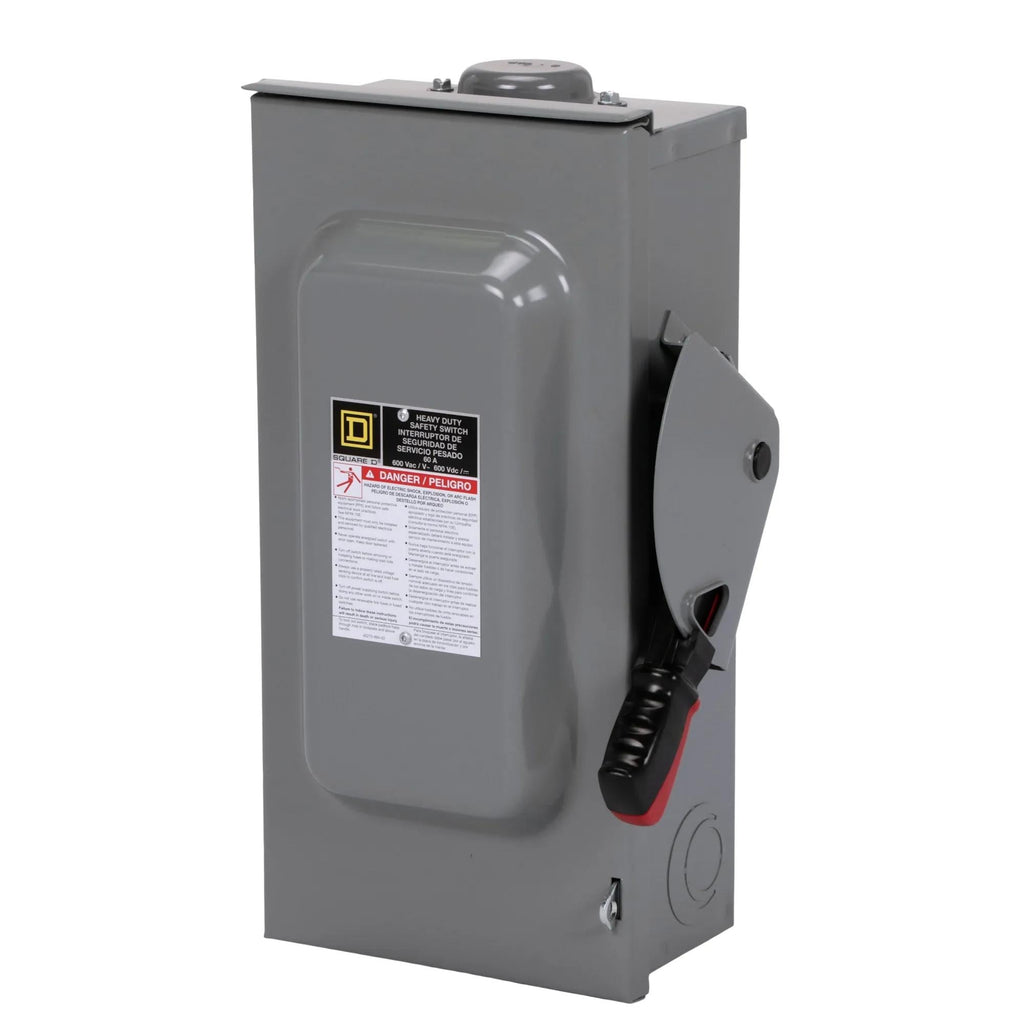

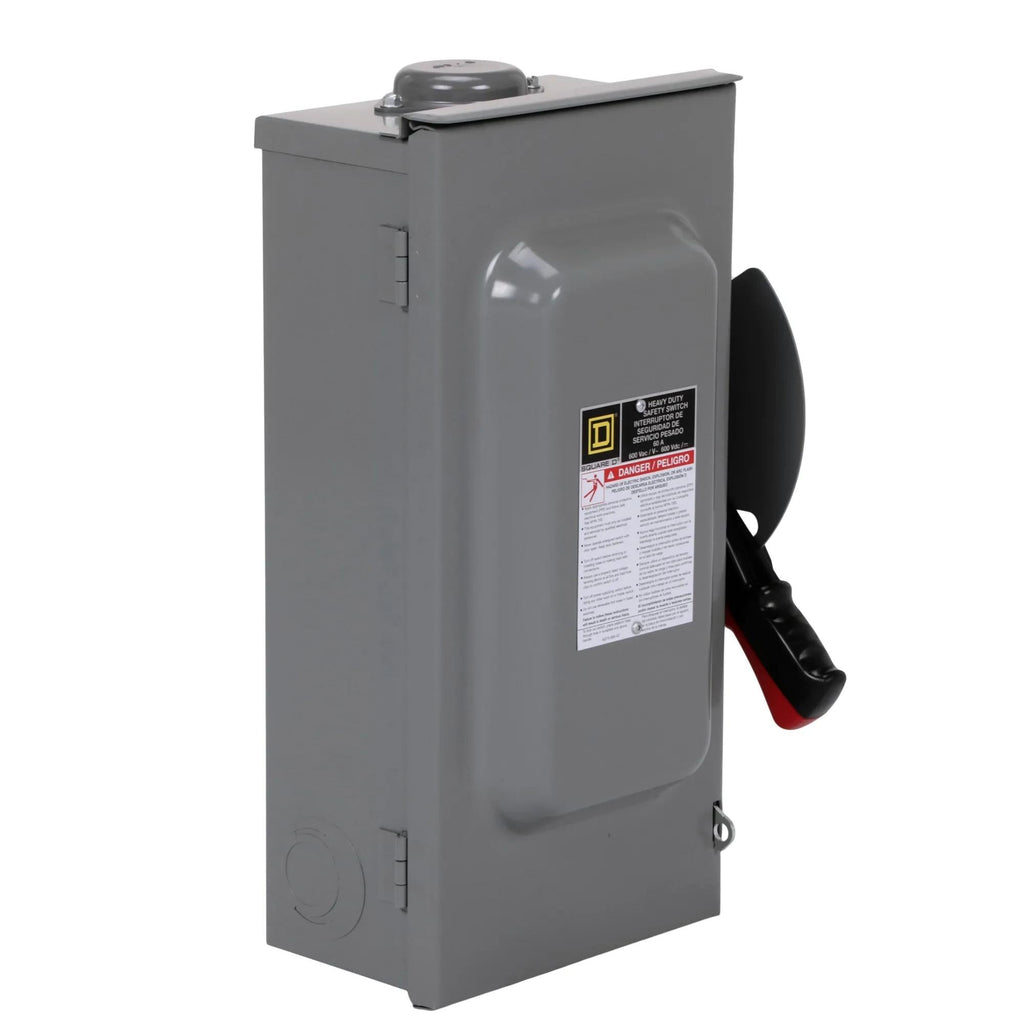

HU362NRB is a heavy-duty, non-fusible safety switch designed for reliable circuit isolation in industrial and commercial applications. This Square D safety switch features a robust stainless steel construction and is rated for 60A at 600VAC/600VDC, making it suitable for demanding environments. The switch is a 3-pole, single throw design with a factory-installed neutral and is surface mountable for flexible installation options. It is built to NEMA 3R standards for protection against rain, sleet, and dust, ensuring durability in harsh conditions. This safety switch is part of the Square D HU series and is constructed with an H frame for added strength and reliability. The unit is non-fusible, providing a straightforward disconnect solution without integrated overcurrent protection. It is designed for use in applications requiring a heavy-duty disconnect with a high short circuit rating.
- Part Number: HU362NRB
- Manufacturer: Square D
- Amperage: 60A
- Voltage: 600VAC, 600VDC
- Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: 200kA @ 600VAC
- Series/Frame: HU Series, H Frame
- Neutral: Factory Installed
- Construction: Stainless Steel
- Protection: NEMA 3R
- Application: Heavy Duty Disconnect
Specifications
- Part Number: HU362NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
Product Data
- GTIN : 785901278269
- Dimensions : 17.5 in (444.5 mm) x 10.5 in (266.7 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
- Weight : 15.659
- Certification : UL
