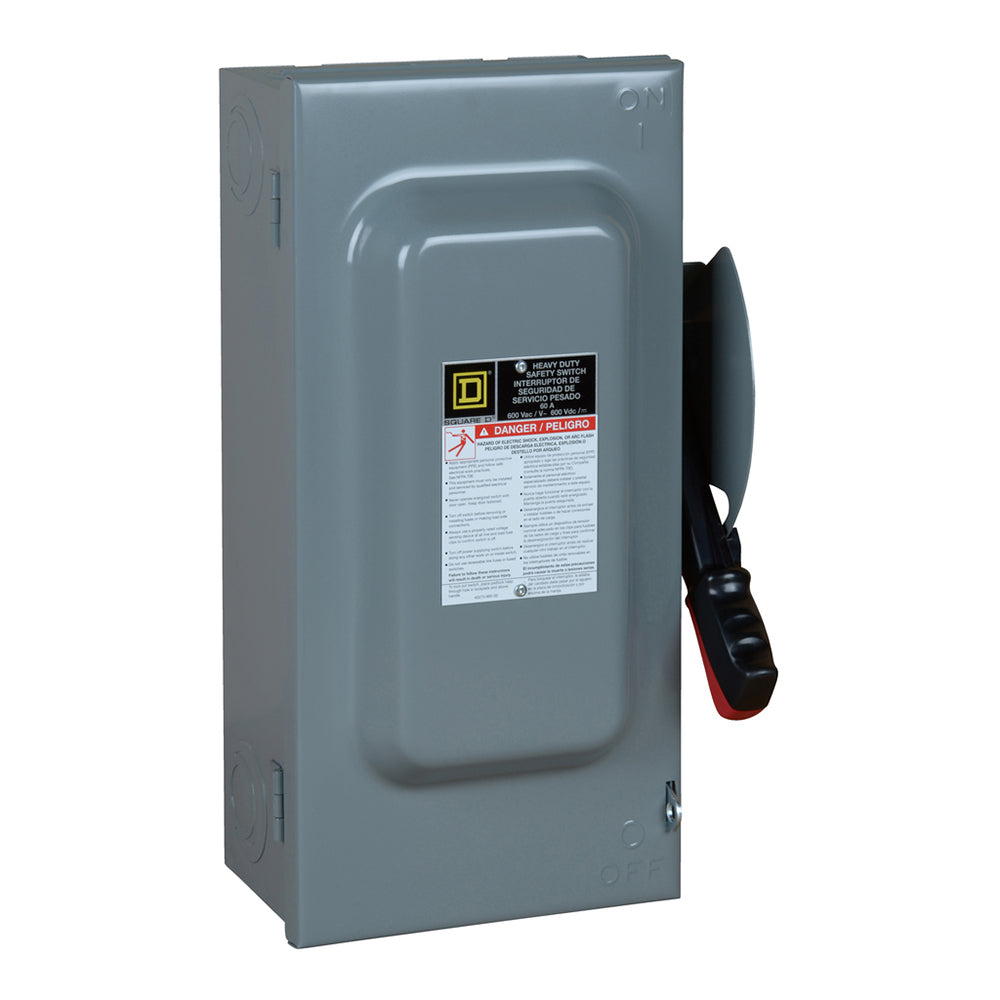

HU362EI - Square D Heavy Duty Safety Switch 60A 600V 3-Pole NEMA 1 Non-Fusible

HU362EI

HU362EI is a Square D heavy duty safety switch rated for 60 amps and 600 volts AC/DC with a 3-pole configuration and NEMA 1 steel enclosure.This non-fusible safety switch features a quick-make, quick-break mechanism with a dual cover interlock and color-coded handle. It supports a motor power rating up to 60 HP at 600 VAC and is designed for surface mounting. The enclosure is made of durable steel and the switch is suitable for general duty applications without a neutral. It has a short circuit interrupt rating of 200kAIC at 600V.

• Current Rating: 60 Amps
• Voltage Rating: 600 V AC/DC
• Number of Poles: 3
• Enclosure Rating: NEMA 1 Steel
• Mounting Type: Surface Mount
• Interrupt Rating: 200kAIC at 600V
• Fuse Provision: Non-Fusible
• Series/Frame: HU
• Motor Power Rating: 60 HP at 600 VAC
• Trip Unit: Non-Fusible
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU362EI
• Manufacturer : Schneider Electric
• Brand : Square D

Product Data

• UPC : 78590115655
• GTIN : 00785901156550
• Dimensions : 21.25 in (539.75 mm) x 10.5 in (266.7 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 15.999
