2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU362

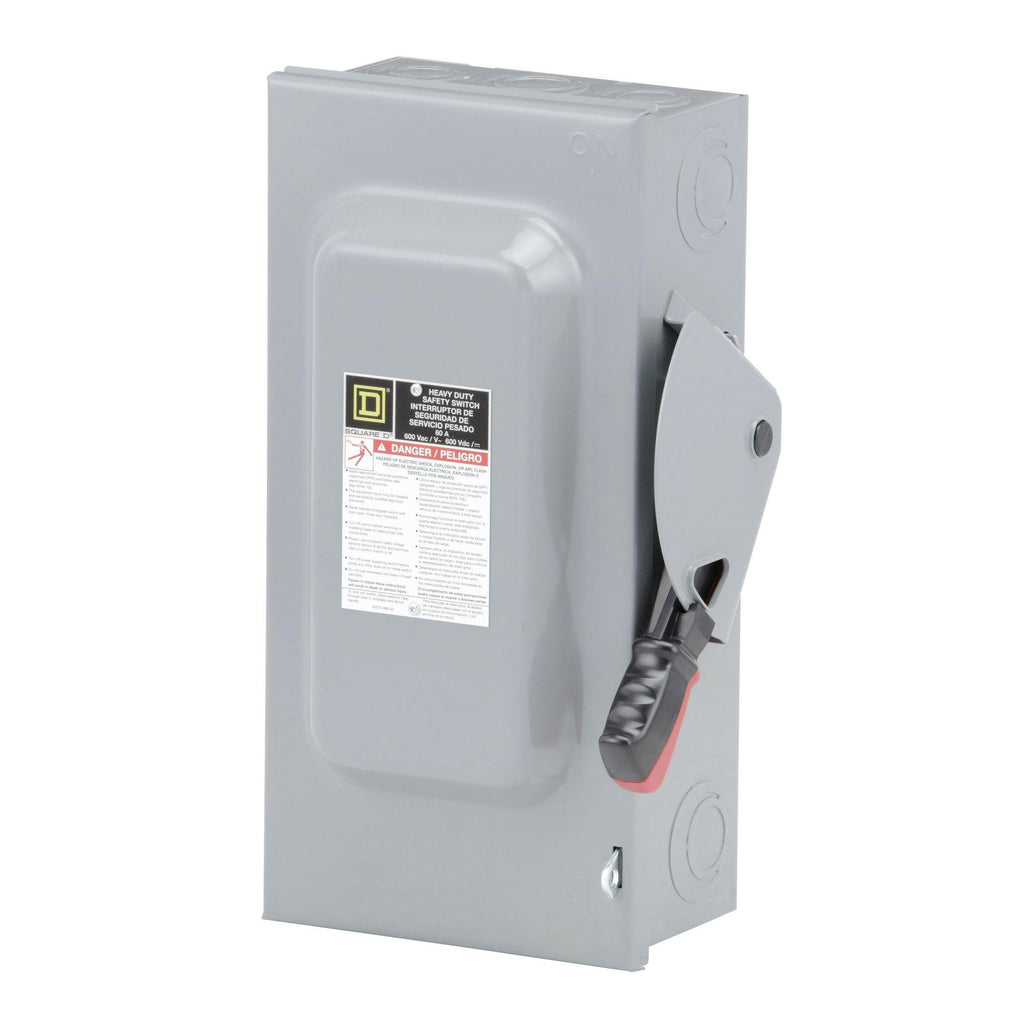

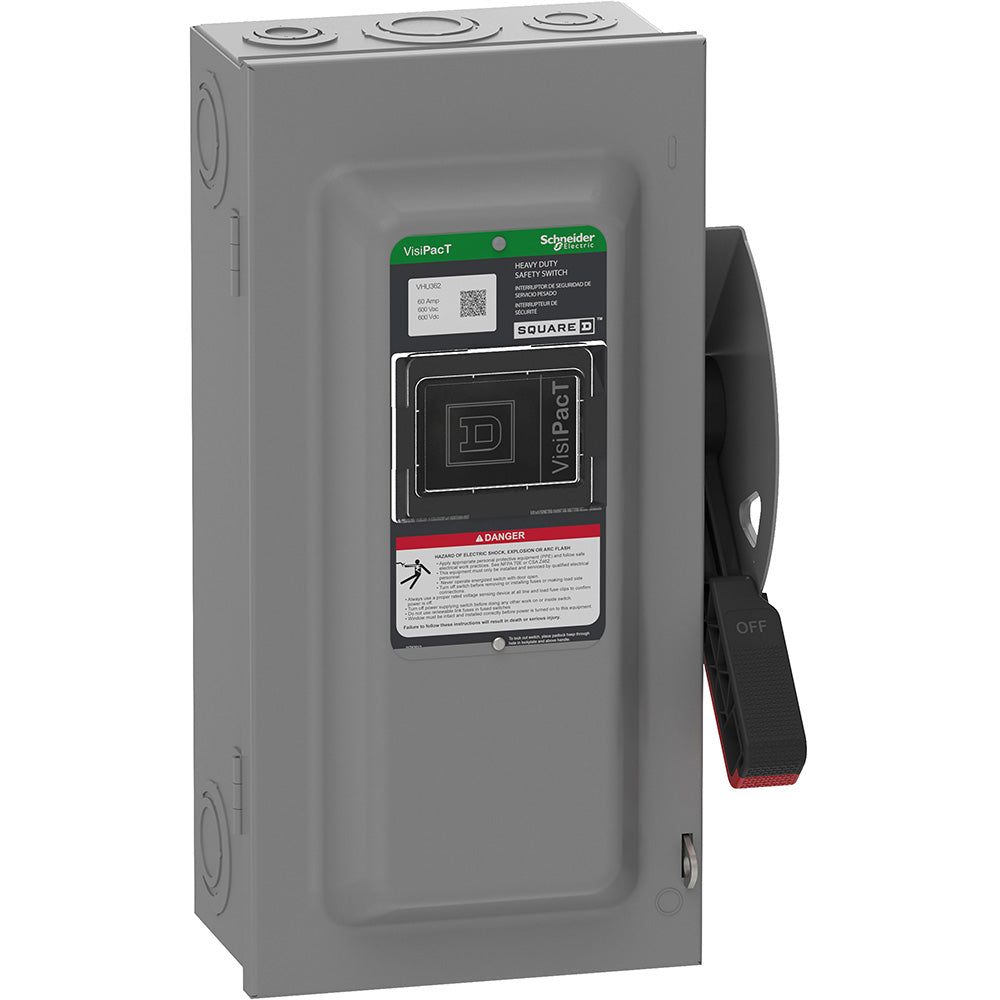

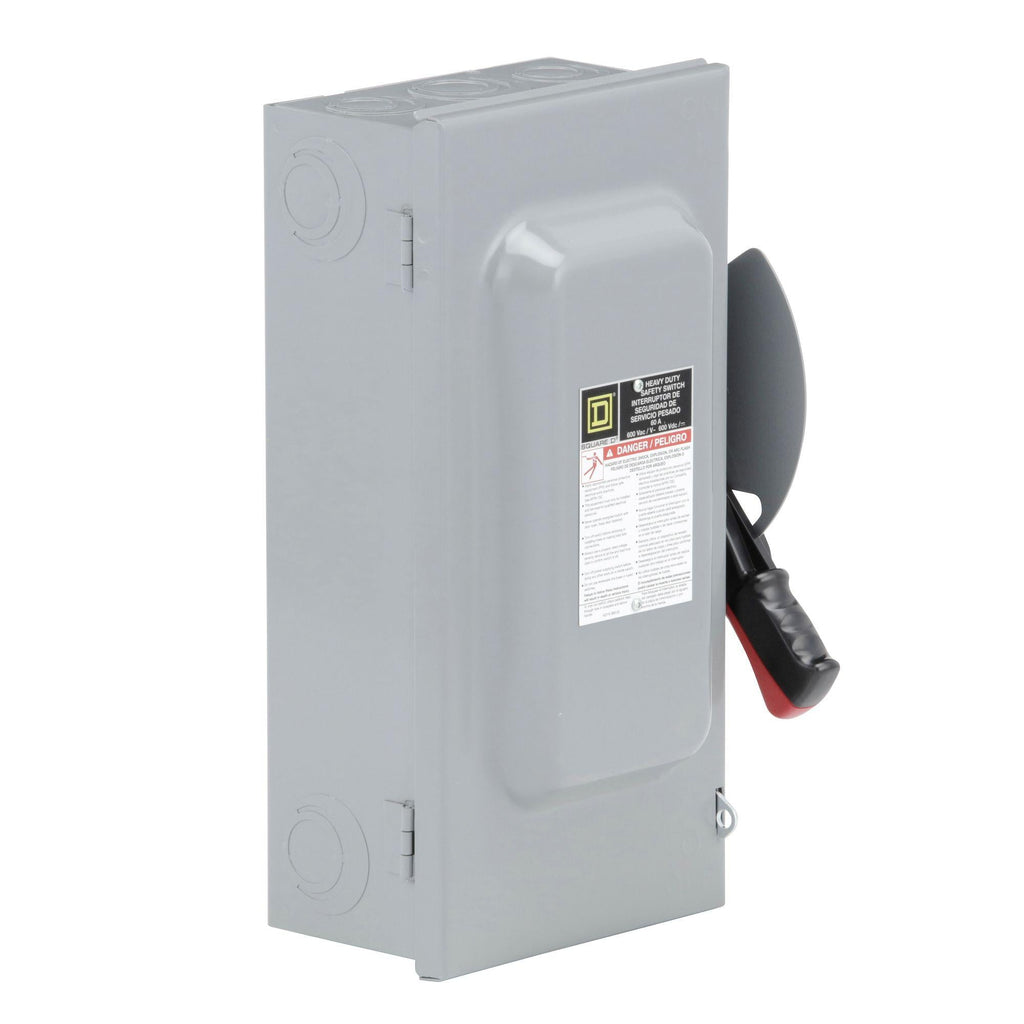

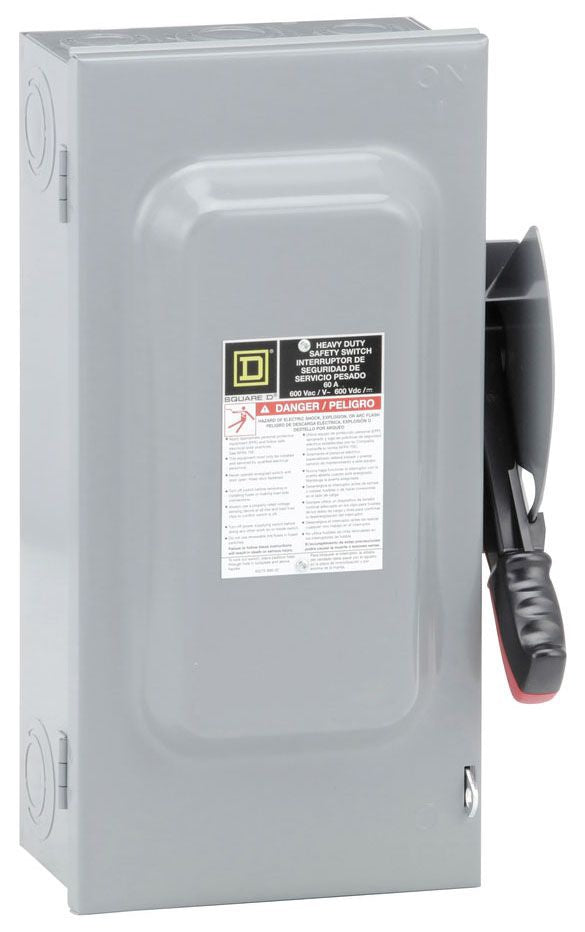

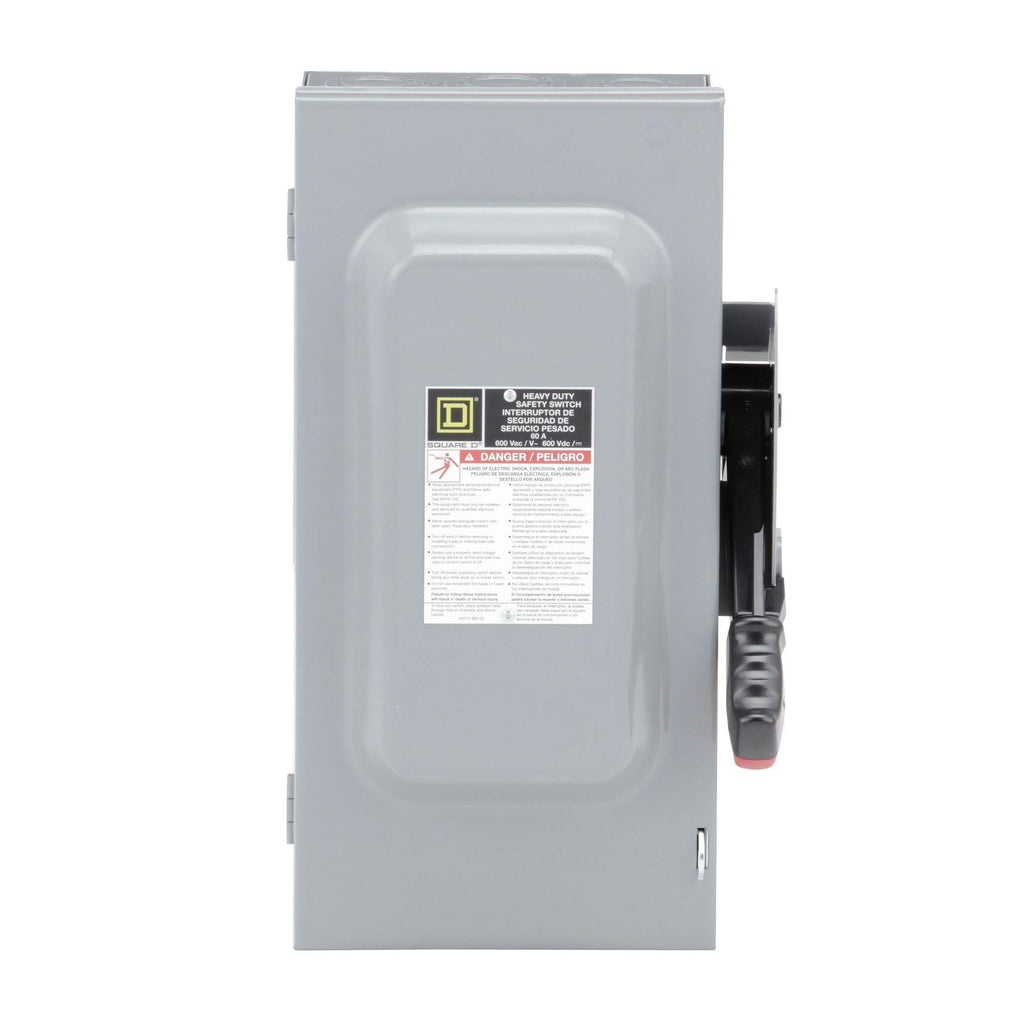

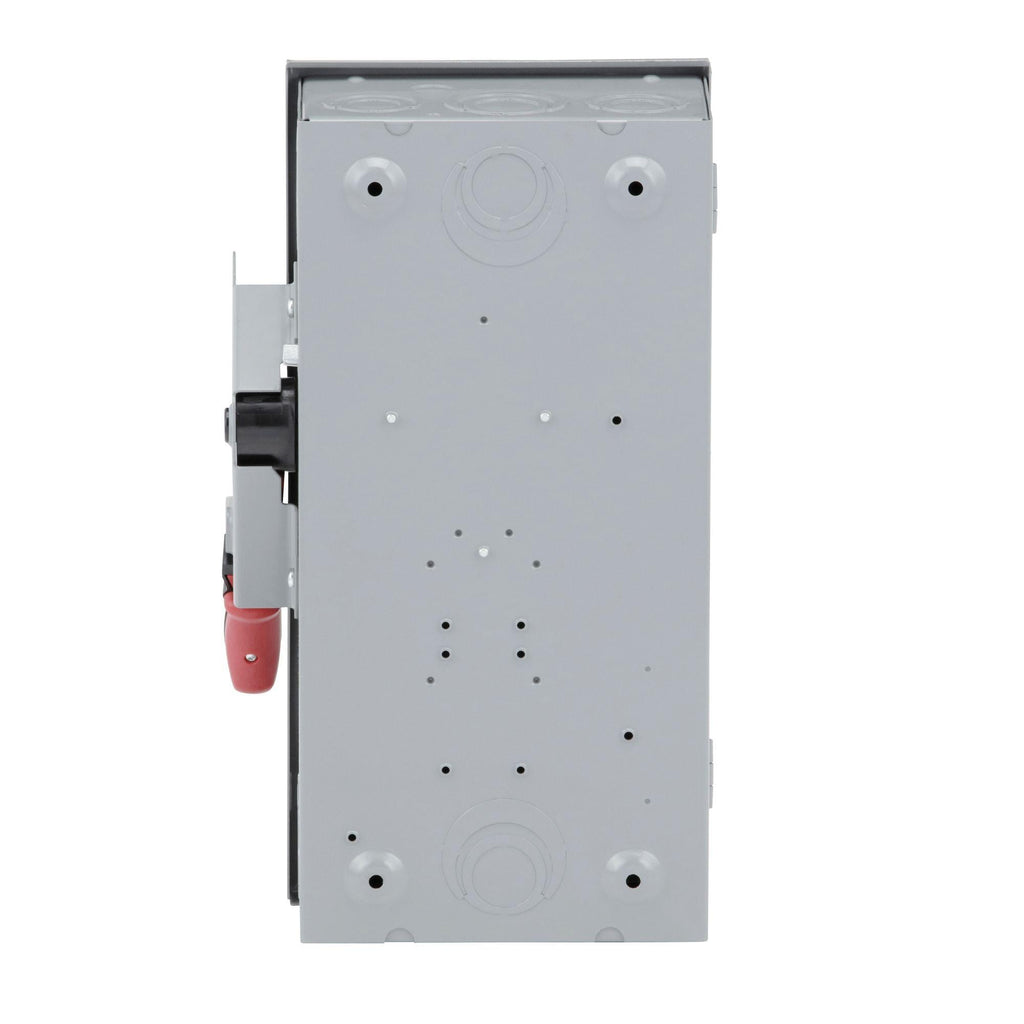

HU362 is a Square D heavy duty non-fusible safety switch rated for 60 amps and 600 volts with 3 poles and NEMA 1 indoor enclosure.This heavy duty safety switch features a 3-pole, 3-wire design with a 60 amp current rating and a maximum voltage rating of 600 VAC/VDC. It has a 200kA interrupting rating at 600V, quick-make/quick-break mechanism, and is surface mounted with a steel enclosure rated NEMA 1 for indoor use. The switch is non-fusible and designed for general purpose applications.
- Manufacturer: Square D
- Part Number: HU362
- Amperage: 60 Amps
- Voltage Rating: 600 VAC/VDC
- Poles: 3
- Interrupt Rating: 200kAIC at 600V
- Mounting Type: Surface Mount
- Enclosure Type: NEMA 1, Steel
- Fusibility: Non-Fusible
- Duty Rating: Heavy Duty
- Trip Unit: None (Non-Fusible)
- Application: Indoor General Purpose
Specifications
- Part Number: HU362
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 1
Product Data
- UPC : 785901505808
- GTIN : 00783164008524
- Dimensions : 21.25 in (539.75 mm) x 10.5 in (266.7 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
- Weight : 14.8 lb
- Certification : UL Listed
