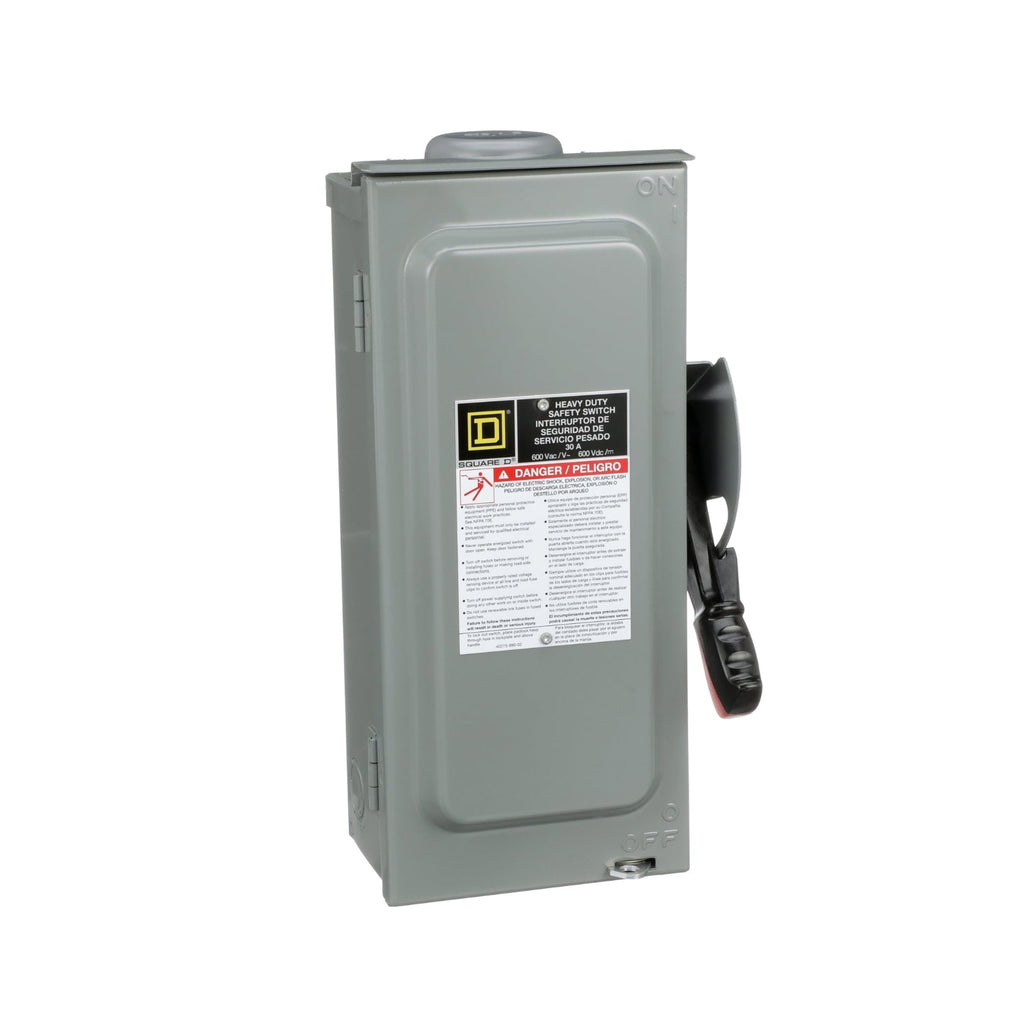

HU361RB - Square D 30 Amp 600V AC/DC 3-Pole Heavy Duty Non-Fusible Safety Switch, NEMA 3R Enclosure, Bolt-On Hub Provision, UL/CSA Listed

HU361RB

HU361RB is a Square D heavy duty, non-fusible safety switch designed for reliable power isolation in demanding environments.

This 3-pole safety switch features a 30 Amp, 600V AC/DC rating, housed in a NEMA 3R galvannealed steel enclosure for rainproof outdoor applications. It includes a bolt-on hub provision for easy conduit connection and is suitable for service entrance use when equipped with a neutral assembly or equipment grounding kit. The switch offers a quick make, quick break operating mechanism and a dual cover interlock for enhanced safety. It is UL and CSA listed, meeting rigorous industry standards for safety and performance.

Key Specifications
• Amperage: 30A
• Voltage: 600V AC/DC
• Poles: 3
• Mounting Type: Bolt-on hub provision
• Interrupt Rating: 200 kA short circuit current rating
• Series/Frame: Square D HU Series, Heavy Duty
• Trip Unit: Non-fusible (no trip unit)
• Certifications: UL Listed (File E2875), CSA, NEMA 3R
• Enclosure: Galvannealed steel, rainproof
• Wire Size: #12–6 AWG (AL), #14–6 AWG (CU)
• Operating Mechanism: Quick make, quick break
• Safety: Dual cover interlock

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU361RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 3R
• Compatible Frames : NSX

Product Data

• UPC : 785901505600
• GTIN : 00783164253597
• Dimensions : 14.88 in (377.95 mm) x 7.55 in (191.77 mm) x 4.86 in (123.44 mm) (Height x Width x Depth)
• Weight : 8.159 lb
• Certification : UL Listed
