Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU361DSVW

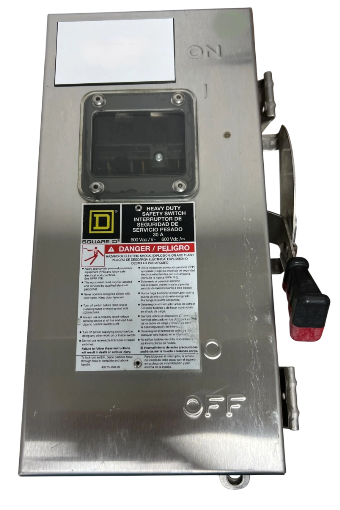

HU361DSVW is a Square D heavy duty safety switch rated for 30 amps and 600 volts AC with 3 poles and a non-fusible design.This switch features a stainless steel enclosure with a viewing window (VW), providing corrosion resistance and NEMA 4/4X dust-tight and watertight protection. It has a 200kA interrupt rating at 600V and is designed for heavy duty applications requiring a reliable disconnect switch.
- Amperage: 30 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Switch Style: Non-Fusible
- Interrupt Rating: 200kA @ 600V
- Enclosure: Stainless Steel, NEMA 4/4X
- Frame Type: VW (Viewing Window)
- Mounting Type: Surface Mount
- Heavy Duty Safety Switch
- Corrosion Resistant
- Certifications: UL Listed
Specifications
- Part Number: HU361DSVW
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 4/4X
Product Data
- Dimensions : 14.93 in (379.22 mm) x 8.67 in (220.22 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 12.899
