HU361AWKVWEI - Schneider Electric 30A 3-Pole Heavy Duty Non-Fusible Safety Switch 600VAC/DC NEMA 3R/12 Surface Mount

HU361AWKVWEI

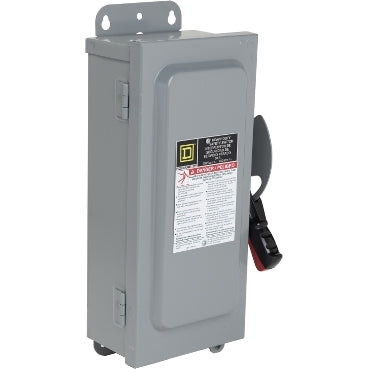

HU361AWKVWEI is a heavy-duty, non-fusible safety switch rated for 30 amps, 3 poles, and 600 volts AC/DC with a NEMA 3R/12 enclosure designed for surface mounting.

This Schneider Electric switch features a 3-wire, 3-phase configuration suitable for industrial and commercial applications. It offers a 200kA short circuit current rating and supports up to 30 horsepower at 600 volts AC. The enclosure is made of galvannealed steel, providing dusttight, iceproof, and rainproof protection. The switch includes lug-type electrical connections and a quick-make, quick-break operating mechanism with a dual cover interlock for enhanced safety.

• Amperage: 30 A
• Voltage Rating: 600 V AC/DC
• Number of Poles: 3
• Mounting Type: Surface Mount
• Short Circuit Current Rating: 200 kA
• Enclosure Rating: NEMA 3R/12 Galvannealed Steel
• Trip Unit: Non-Fusible Disconnect
• Horsepower Rating: 30 HP at 600 V AC (3 phase)
• Electrical Connection: Lug Terminals
• Phase: 3
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU361AWKVWEI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Compatible Frames : NSX

Product Data

• Country of Origin : United States
• Dimensions : 14.6 in (370.8 mm) x 7.55 in (191.77 mm) x 4.96 in (125.98 mm) (Height x Width x Depth)
• Weight : 12.02
