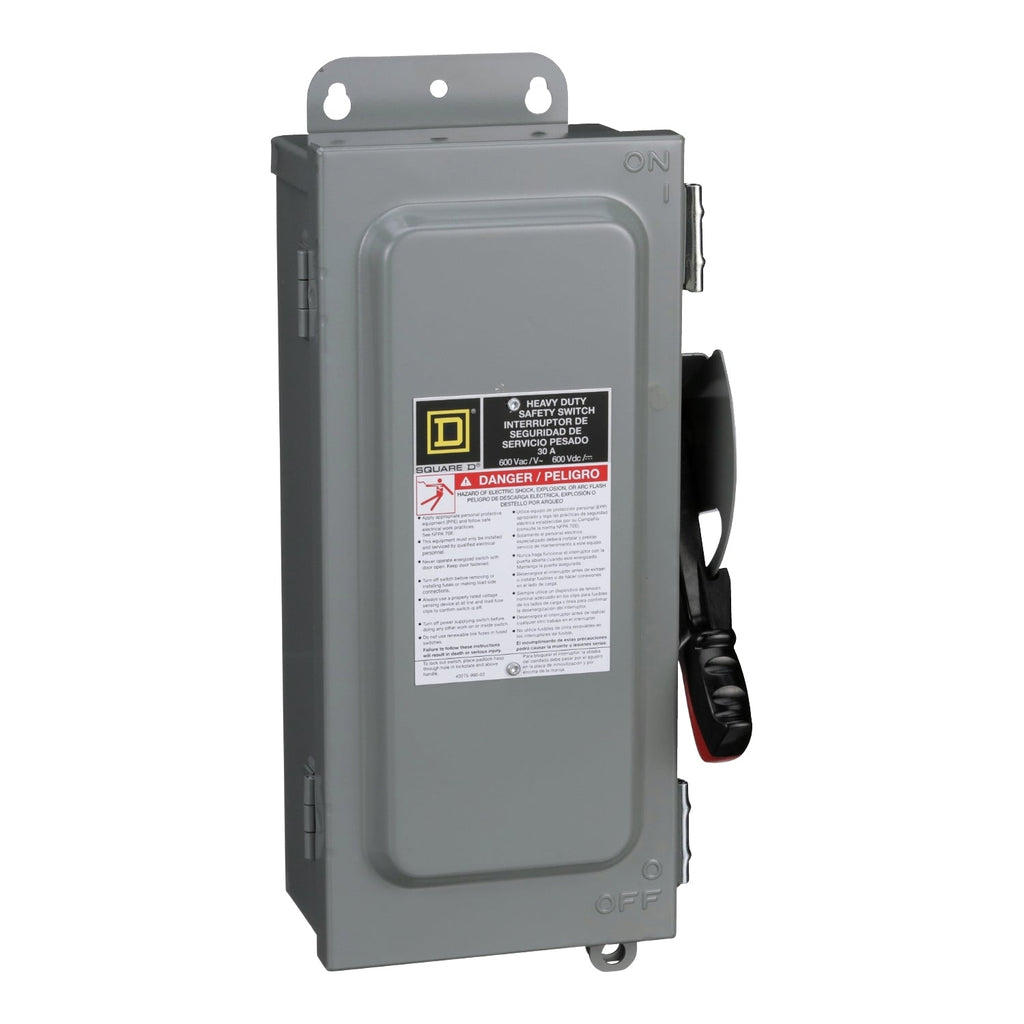

HU361AWKEI - Schneider Electric 30A 600VAC 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 3R/12

HU361AWKEI

HU361AWKEI is a Schneider Electric heavy duty non-fusible safety switch rated for 30 amps and 600 VAC with a 3-pole configuration.This single throw safety switch features a NEMA 3R/12 enclosure rating, suitable for surface mounting, and supports up to 30 horsepower. It is designed for 3-wire, 3-phase applications with a short circuit current rating of up to 200A. The switch includes a handle actuator and lug-type terminals compatible with 14 to 6 AWG copper and 12 to 6 AWG aluminum wire. UL listed for safety and built with galvanized steel for durability.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Mounting Type: Surface
• Interrupt Rating: ≤ 200 A Short Circuit
• Enclosure Type: NEMA 3R/12
• Type: Heavy Duty Non-Fusible Single Throw
• Horsepower Rating: 10 hp, 15 hp, 30 hp
• Terminal Type: Lug
• Actuator Type: Handle
• Wire Range: 14-6 AWG Copper, 12-6 AWG Aluminum
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HU361AWKEI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Compatible Frames : NSX



Product Data

• UPC : 78590115653
• GTIN : 00785901156536
• Dimensions : 14.6 in (370.8 mm) x 7.55 in (191.77 mm) x 4.96 in (125.98 mm) (Height x Width x Depth)
• Weight : 10.28
• Certification : UL
