Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU361A

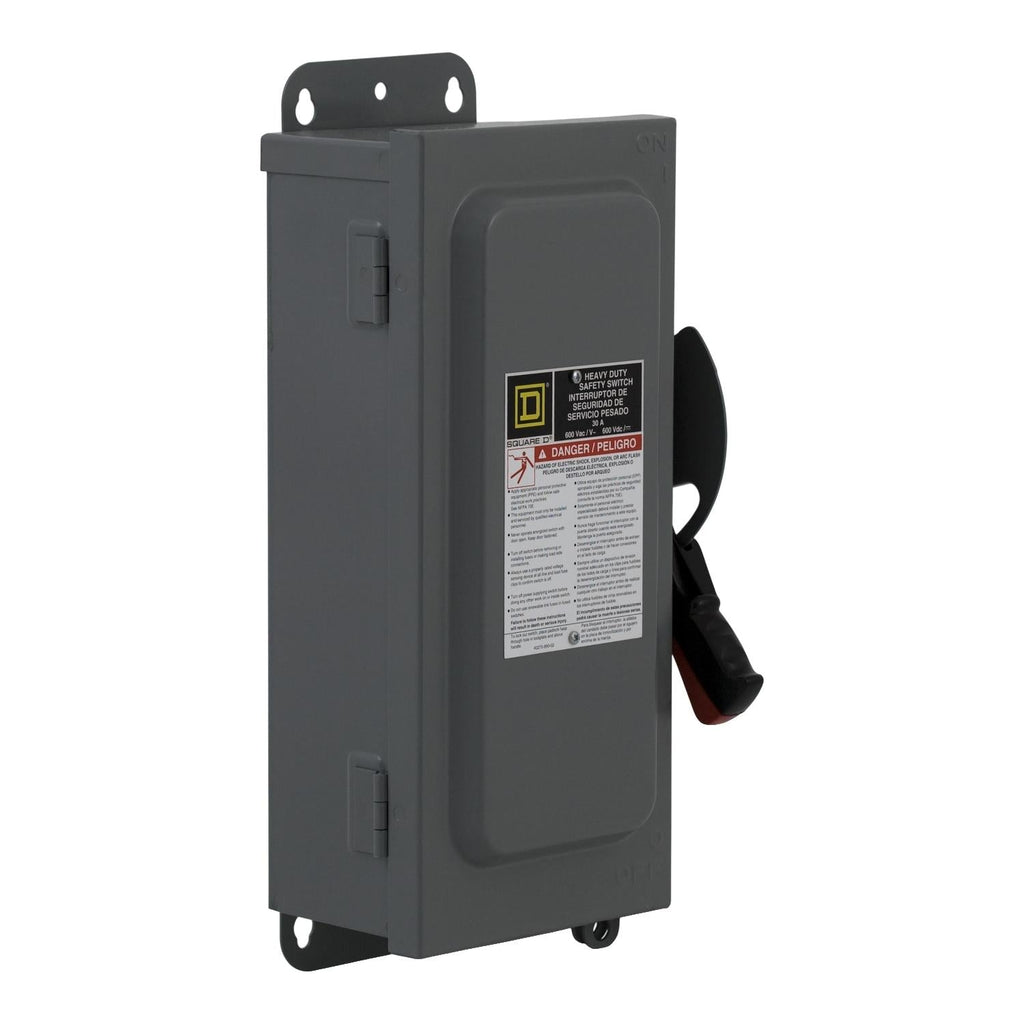

HU361A is a 3 pole, 30 amp, 600V non-fusible safety switch designed for reliable circuit isolation in commercial and industrial applications. This Square D HU361A switch features an H frame and is rated for NEMA 1 enclosures, providing robust protection and easy installation. The HU361A switch is constructed with a galvannealed steel enclosure and is suitable for use in environments requiring a 200kA AIC interrupt rating at 600V. It is ideal for disconnecting loads in motor, lighting, and HVAC circuits where a non-fusible disconnect is required.
- Part Number: HU361A
- Manufacturer: Square D
- Amperage: 30A
- Voltage: 600V AC/DC
- Poles: 3
- Frame Type: H
- Mounting Type: Panel Mount
- Interrupt Rating: 200kA @ 600V
- Series: Series F
- Enclosure: NEMA 1
- Fuse Provision: Non-Fusible
- Certifications: UL Listed
Specifications
- Part Number: HU361A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : Non-Fusible
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 1
- Compatible Frames : NSX
Product Data
- UPC : 078590150573
- GTIN : 00785901505730
- Dimensions : 14.6 in (370.8 mm) x 7.55 in (191.77 mm) x 4.96 in (125.98 mm) (Height x Width x Depth)
- Weight : 9.89 lb
- Certification : UL
