Product Info
- Manufacturer: Square D
- Sub-Category: Disconnect
Description
HU361

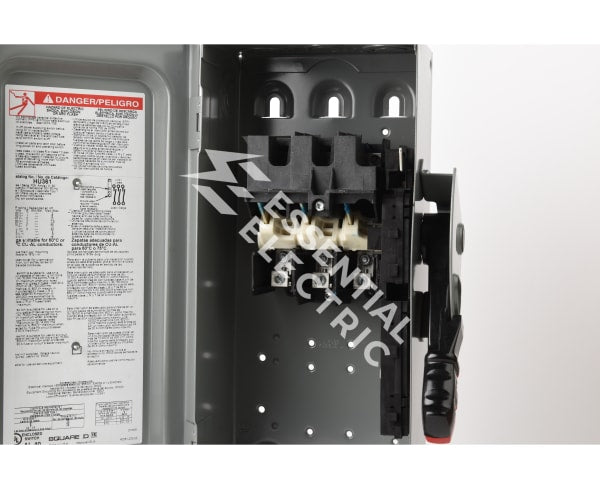

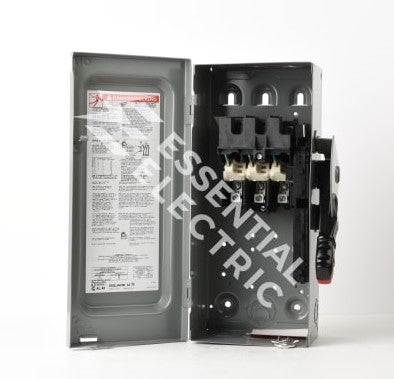

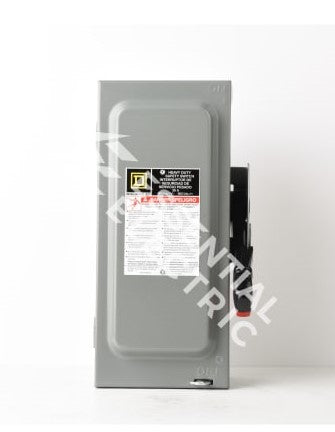

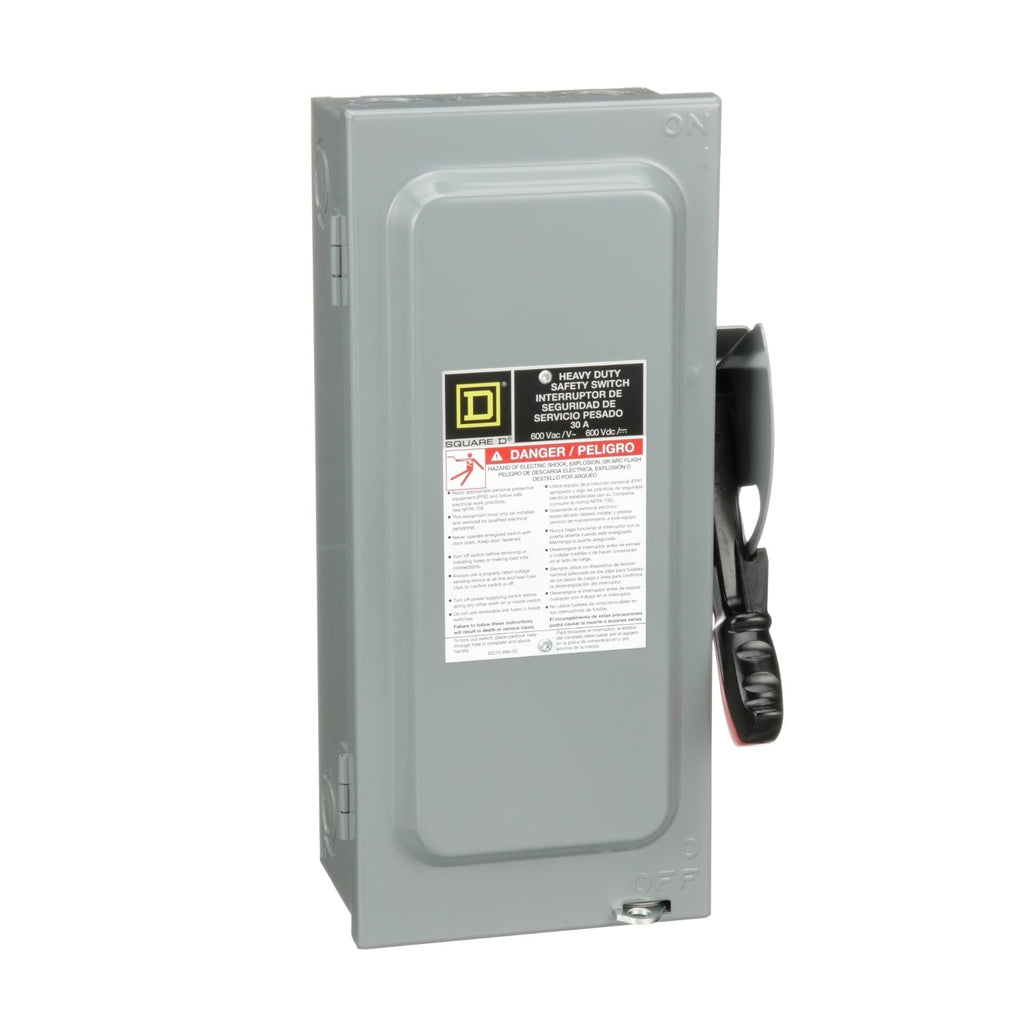

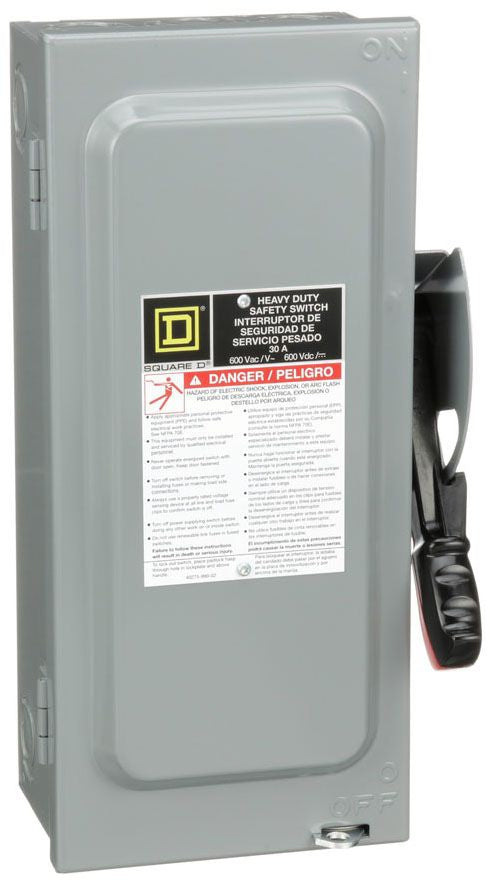

The Square D HU361 is a 3 phase 3 pole 600 Volt 30 Amp HU type Disconnect Switch. This switch has a Nema rating of 1 and an AIC rating of 200kA@600V. The HU361 is a single switch configuration and is non-fused. Suitable for use as service entrance equipment.
Specifications
- Part Number: HU361
- Manufacturer : Square D
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600
- Amperage : 30
- Poles : 3
- Phase : 3
- AIC rating : 200kA@600V
- Nema Rating : 1
- Configuration : Single
Product Data
- UPC : 785901505723
- GTIN : 00782113208510
- Dimensions : Depth 4.87 in (123.70 mm) Width 7.55 in (191.77 mm) Height 14.6 in (370.84 mm)
- Weight : 9.82 lb
