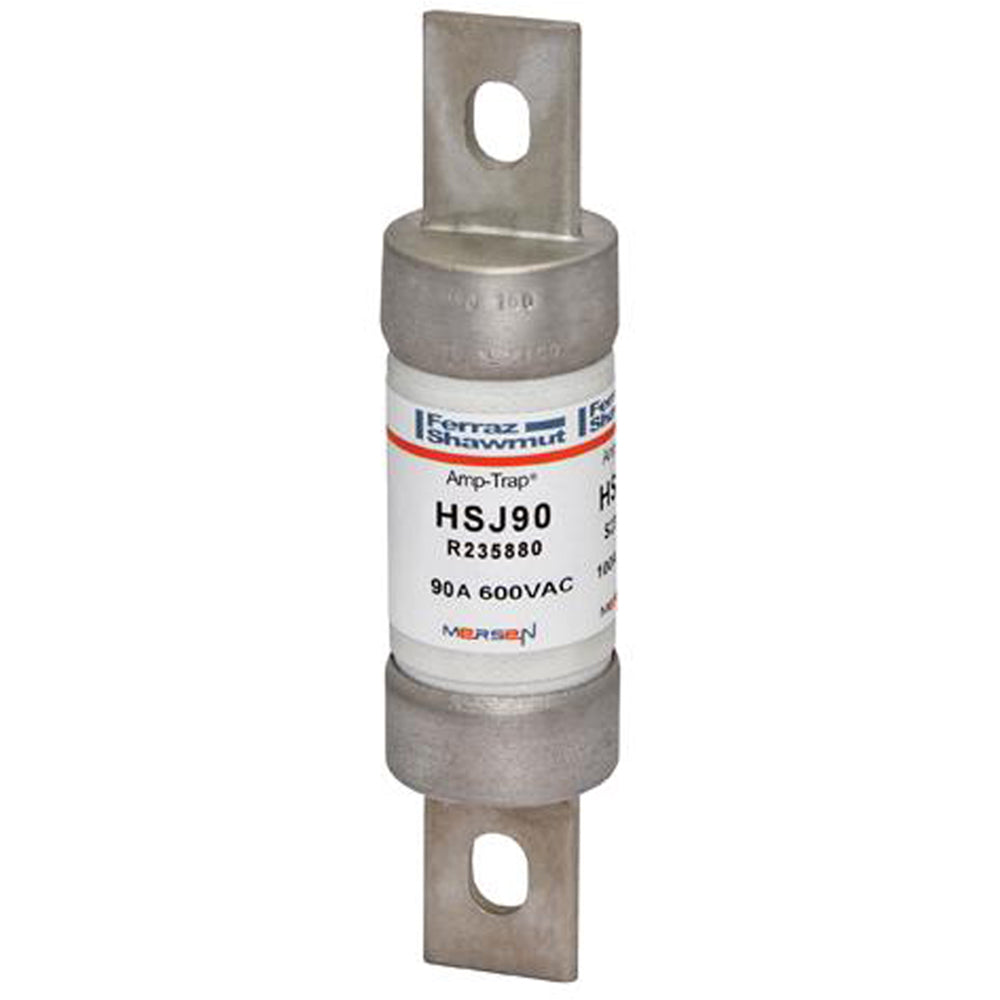

HSJ90 - Mersen Class J High Speed Fuse 90A 600VAC 500VDC

HSJ90

HSJ90 is a Class J high-speed fuse designed for semiconductor protection and branch circuit applications in control panels and electronic motor controllers.

The HSJ90 combines low I2t thermal energy let-through with the branch circuit performance of a UL-listed Class J fuse. It features current-limiting capability, excellent cycling ability for frequent starts and stops, and optimized overload capability for electronic motor controller start-ups. The fuse is capable of protecting overloads down to 135% of its fuse rating and maintains equipment integrity under circuit fault conditions by limiting energy delivered to sensitive components.

• Amperage Rating: 90A
• Voltage Rating: 600VAC, 500VDC
• Fuse Class: Class J
• Speed Type: High Speed
• Body Type: Cylindrical Blade (Amp-Trap)
• Interrupt Rating: 200kA AC, 100kA DC
• UL Listed to Standard 248-8
• CSA Certified to Standard C22.2
• Mounting: Clip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HSJ90
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : High Speed
• Type : HSJ
• Voltage : 600
• Amperage : 90
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 78200132958
• GTIN : 00782001329587
• Country of Origin : Mexico
• Dimensions : x 4.63 in x
• Weight : 0.23
