Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

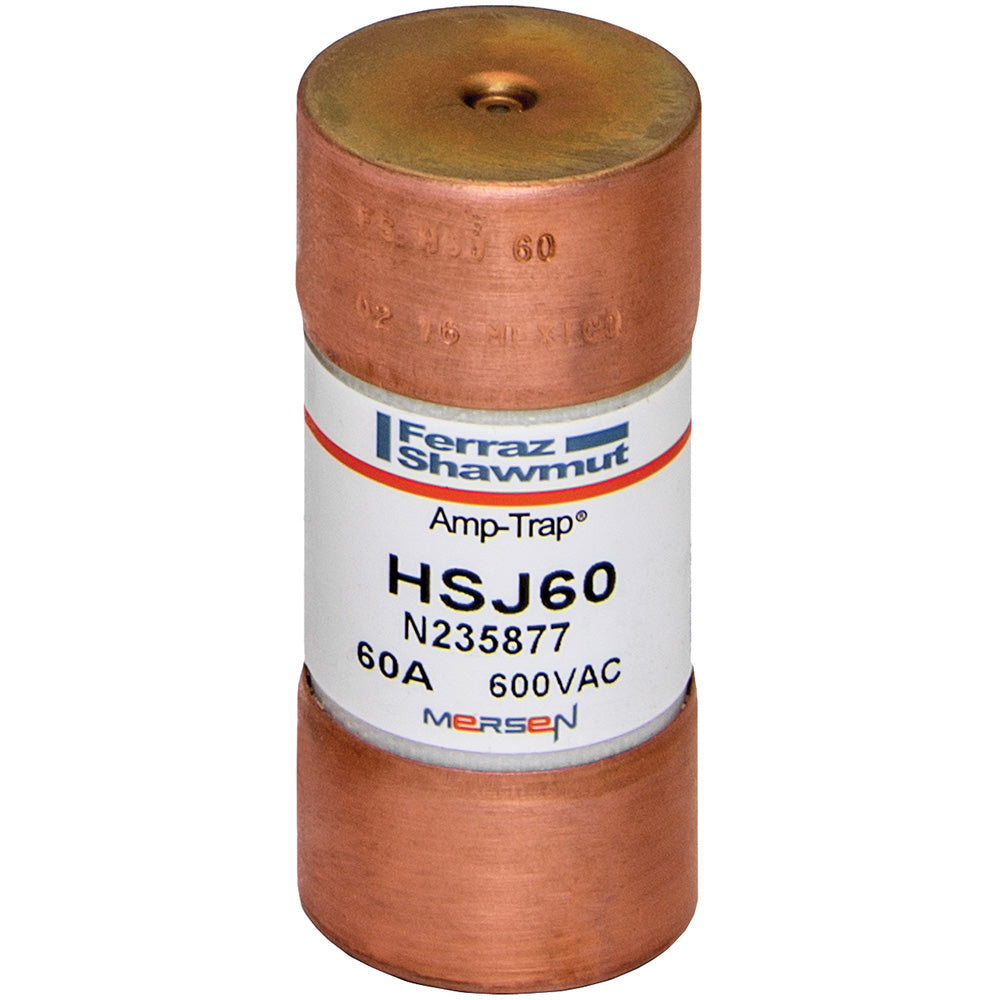

HSJ60
HSJ60 is a high-speed Class J fuse designed for branch circuit and semiconductor protection in demanding electronic applications.The Mersen HSJ60 fuse combines the low I2t of a semiconductor fuse with the branch circuit performance of a Class J UL Listed fuse. It features a cylindrical body, tin-plated copper contacts, and is optimized for use in control panels, motor controllers, drives, soft-starters, and solid state relays. This fuse provides excellent cycling ability for frequent starts and stops without nuisance opening, and is RoHS compliant.
- Amperage Rating: 60 A
- Voltage Rating: 600 VAC, 500 VDC
- Fuse Class: Class J
- Body Type: Cylindrical
- Mounting Type: Clip
- Interrupt Rating: 200/100 kA
- Series/Frame: Amp-Trap
- Standards: UL 248-8, CSA C22.2 No. 248.8
- RoHS Compliant
- Body Size: 1-1/16 in Dia x 2-3/8 in L
- Application: Branch Circuits, Control Panels, Motor Controllers, Drives, Soft-Starters, Solid State Relays
- Features: Low I2t, Excellent Cycling Ability, Compact Size
Specifications
- Part Number: HSJ60
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : High Speed
- Type : HSJ
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001329556
- GTIN : 00782001329556
- Country of Origin : Mexico
- Dimensions : x 2.38 in x
- Weight : 0.16
- Certification : UL file E2137, UL recognized component
