Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

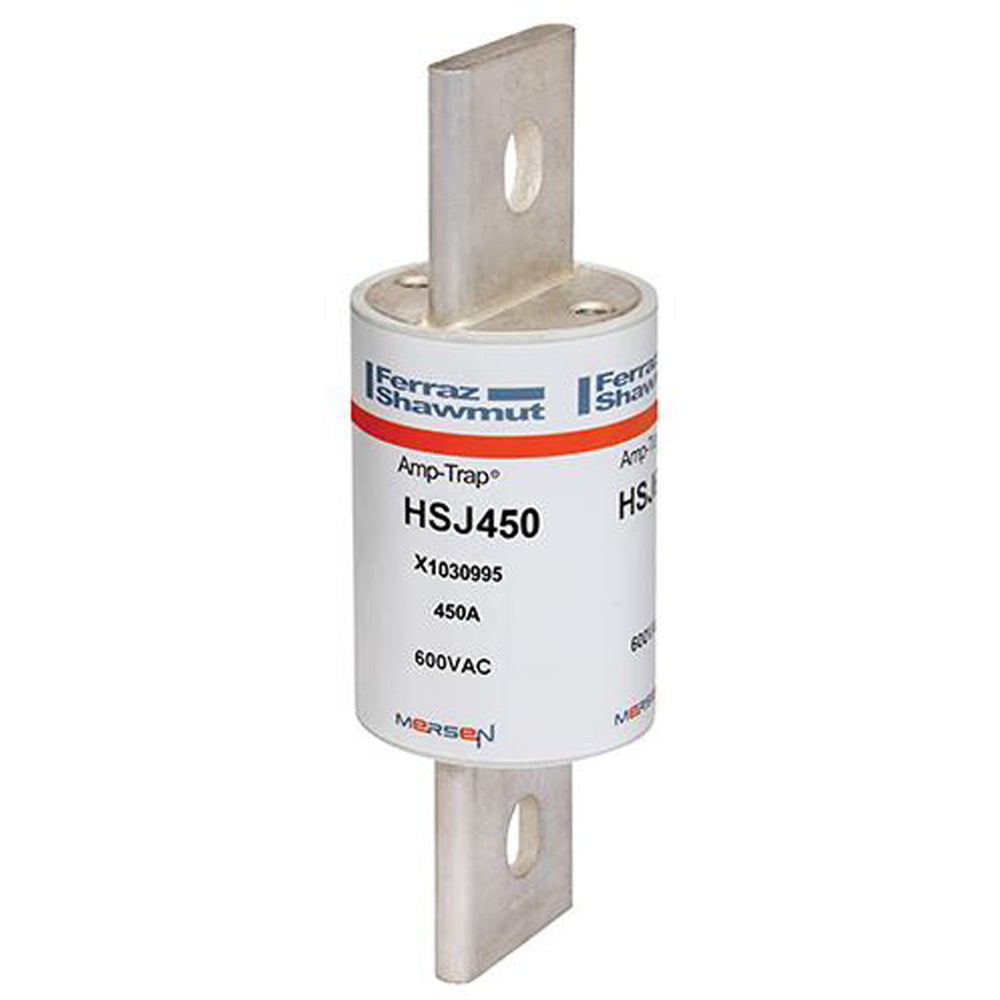

HSJ450
HSJ450 is a high-speed Class J low voltage power fuse designed for semiconductor protection and branch circuit applications. This cylindrical fuse combines the low I2t thermal energy let-through of a semiconductor fuse with the branch circuit performance characteristics of a UL-listed Class J fuse, making it ideal for protecting sensitive electronic components such as IGBTs, DC capacitors, diodes, and SCRs during circuit fault conditions. The HSJ450 features current-limiting capability, excellent cycling ability for frequent motor controller start-ups, and optimized overload protection down to 135% of fuse rating. Key Specifications
- Part Number: HSJ450
- Amperage Rating: 450A
- Voltage Rating: 600VAC / 500VDC
- Fuse Class: Class J
- Speed Type: High Speed
- Interrupt Rating: 200kA AC / 100kA DC
- Body Style: Cylindrical
- Length: 8 inches
- Diameter: 2-1/2 inches
- UL Listed to Standard 248-8
- CSA Certified to Standard C22.2
Specifications
- Part Number: HSJ450
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : High Speed
- Type : HSJ
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 78200132973
- GTIN : 00782001329730
- Weight : 1
- Certification : UL, CSA
