Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
HSJ400

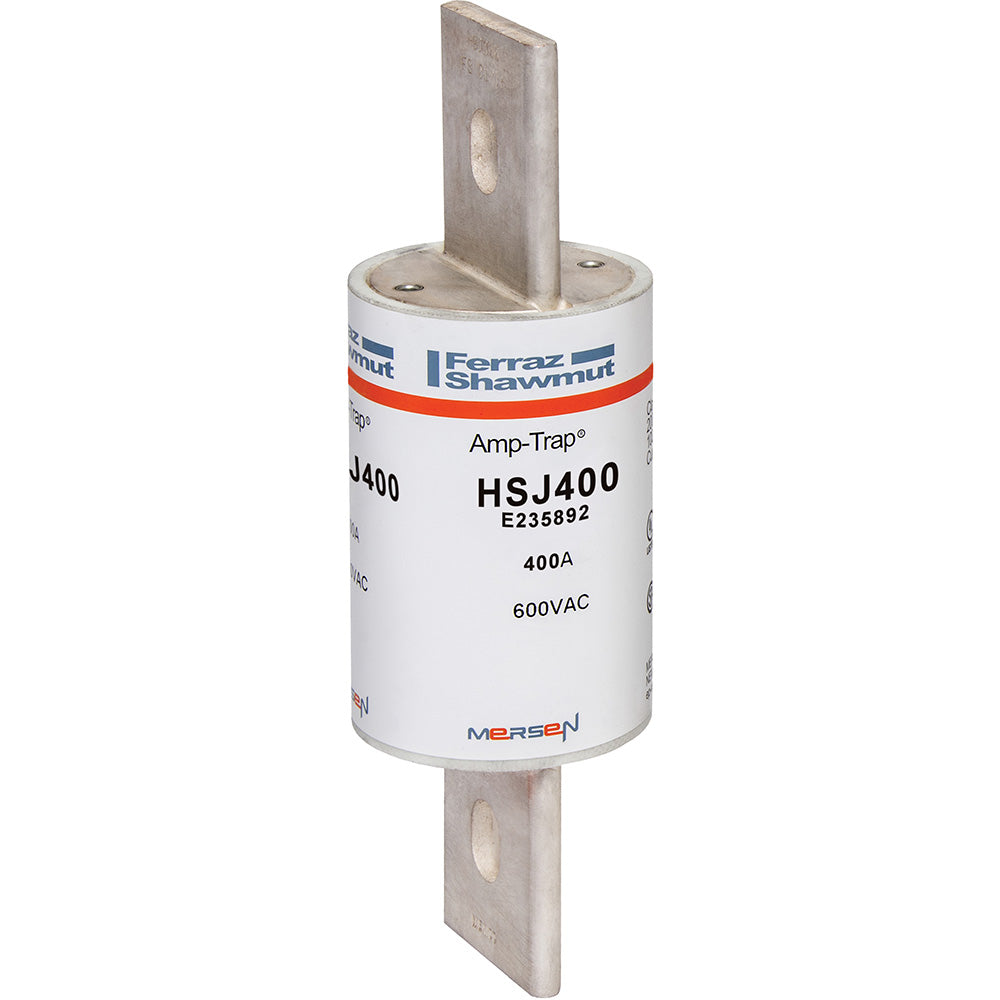

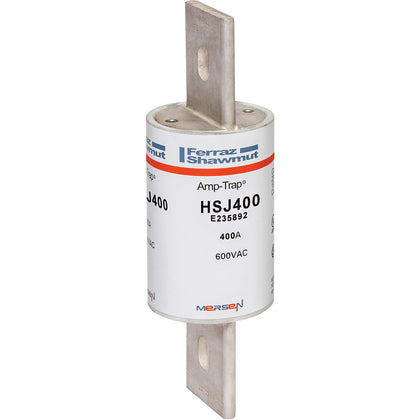

HSJ400 is a Mersen Class J high speed fuse designed for low voltage branch circuit protection with fast-acting response and current limiting performance.The HSJ400 fuse features a 400 amp current rating and is rated for 600VAC and 500VDC systems. It is engineered for high-speed interruption and offers reliable protection in demanding electrical environments. This fuse is compatible with standard Class J fuse holders and is suitable for a wide range of industrial and commercial applications.
- 400 A current rating
- 600 VAC voltage rating
- 500 VDC voltage rating
- Class J fuse type
- High speed characteristic
- Current limiting design
- UL 248/248-8 listed
- CSA C22.2 approved
- 2.12 inch diameter
- 7.13 inch length
- 200 kA interrupting rating at 600V
- Clip mounting style
Specifications
- Part Number: HSJ400
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : High Speed
- Type : HSJ
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 78200132970
- GTIN : 00782001329709
- Country of Origin : Mexico
- Dimensions : x 7.13 in x
- Weight : 1
