Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

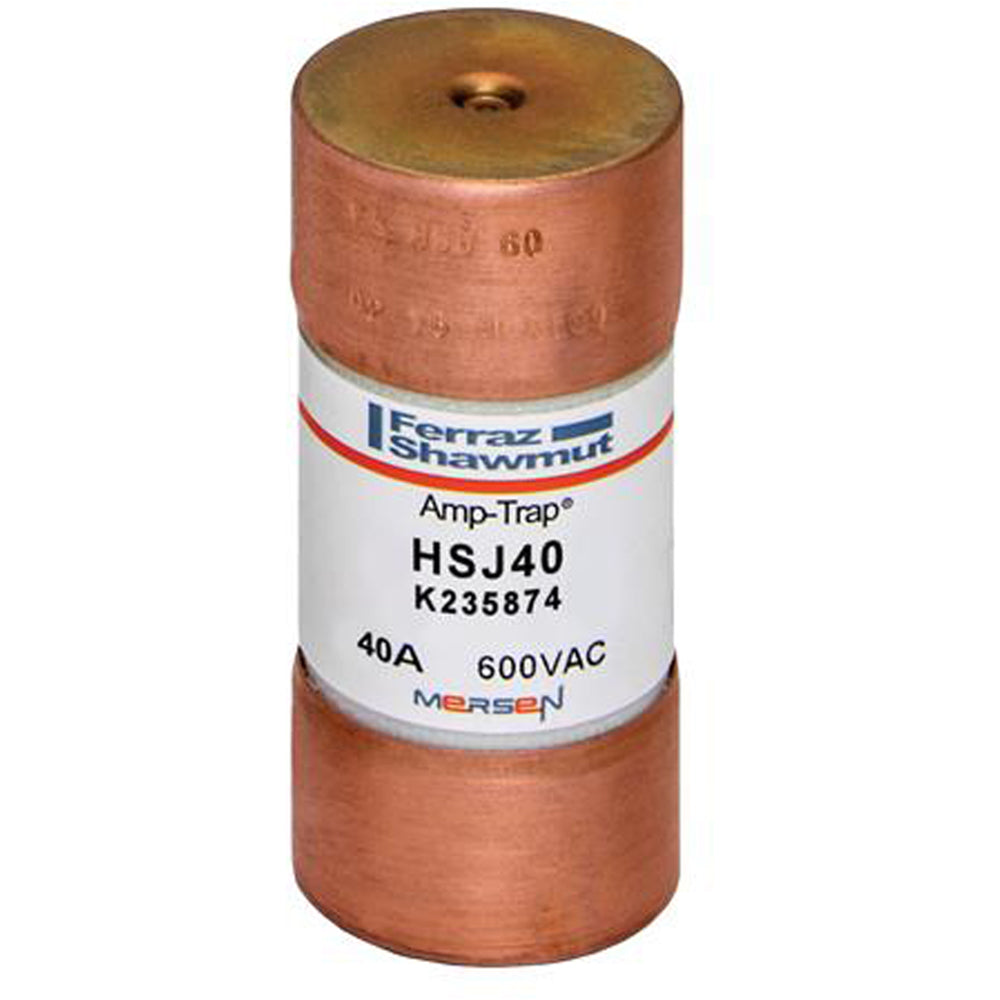

HSJ40
HSJ40 is a Mersen Class J high-speed fuse designed for 40 ampere current rating and 600 VAC / 500 VDC voltage applications.HSJ40 fuse features fast-acting characteristic with a 200 kA interrupt rating at 600 VAC and 100 kA at 500 VDC. It is optimized for solid state motor controllers and branch circuit protection per NEC requirements. This fuse has a ferrule terminal mounting type and complies with UL, CSA, and CE certifications.
- Key Specifications
- Current Rating: 40 Amps
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: Class J
- Speed/Characteristic: High Speed (Fast Acting)
- Interrupt Rating: 200 kA @ 600 VAC, 100 kA @ 500 VDC
- Mounting Type: Ferrule Terminal
- Approvals: UL, CSA, CE
- RoHS Compliant
- Weight: 0.16 lbs
- Series: HSJ
Specifications
- Part Number: HSJ40
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : High Speed
- Type : HSJ
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 78200132951
- GTIN : 00782001329518
- Country of Origin : Mexico
- Dimensions : x 2.38 in x
- Weight : 0.16
- Certification : UL file E2137, UL recognized component
