HSJ30 - Mersen 30 Amp 600V High Speed Class J Fuse, 1 Pole, 200kA Interrupt Rating

HSJ30

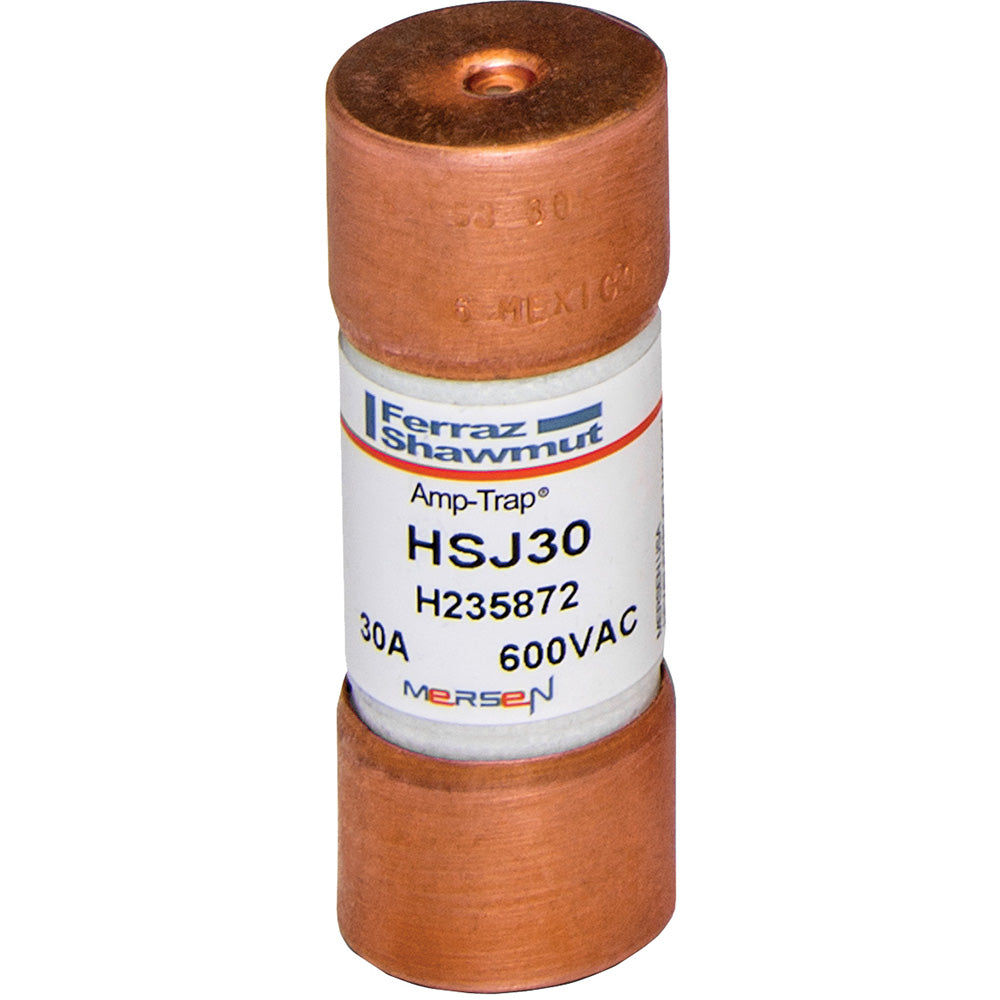

HSJ30 is a 30 Amp, 600 Volt AC high speed Class J fuse designed by Mersen for semiconductor and branch circuit protection.This fuse combines the low I2t characteristics needed for protecting power semiconductors such as diodes, SCRs, GTOs, and SSRs with NEC-compliant branch circuit protection. It features a 1-pole cylindrical design with dimensions of 13/16 inch diameter by 2-1/4 inch length. The HSJ30 fuse has an interrupt rating of 200,000 amps AC and 100,000 amps DC, making it suitable for electronic motor controllers, phase controllers, drives, soft starters, and control panels. It is UL listed to standard 248-8 (File E2137) and CSA certified to C22.2 no. 248.8.

Key Specifications
• Amperage: 30 Amp
• Voltage Rating: 600 Volt AC, 500 Volt DC
• Fuse Class: J
• Fuse Type: High Speed, Current Limiting
• Interrupt Rating: 200kA AC, 100kA DC
• Poles: 1
• Dimensions: 13/16 inch diameter x 2-1/4 inch length
• Mounting Type: Cylindrical cartridge
• UL Listed: UL 248-8 File E2137
• CSA Certified: C22.2 no. 248.8
• Designed for semiconductor protection and branch circuit protection
• Optimized for electronic motor controllers and solid state devices
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HSJ30
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : High Speed
• Type : HSJ
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1



Product Data

• UPC : 782001329495
• GTIN : 00782001329495
• Country of Origin : Mexico
• Dimensions : x 2-1/4 in x
• Weight : 0.12
