Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

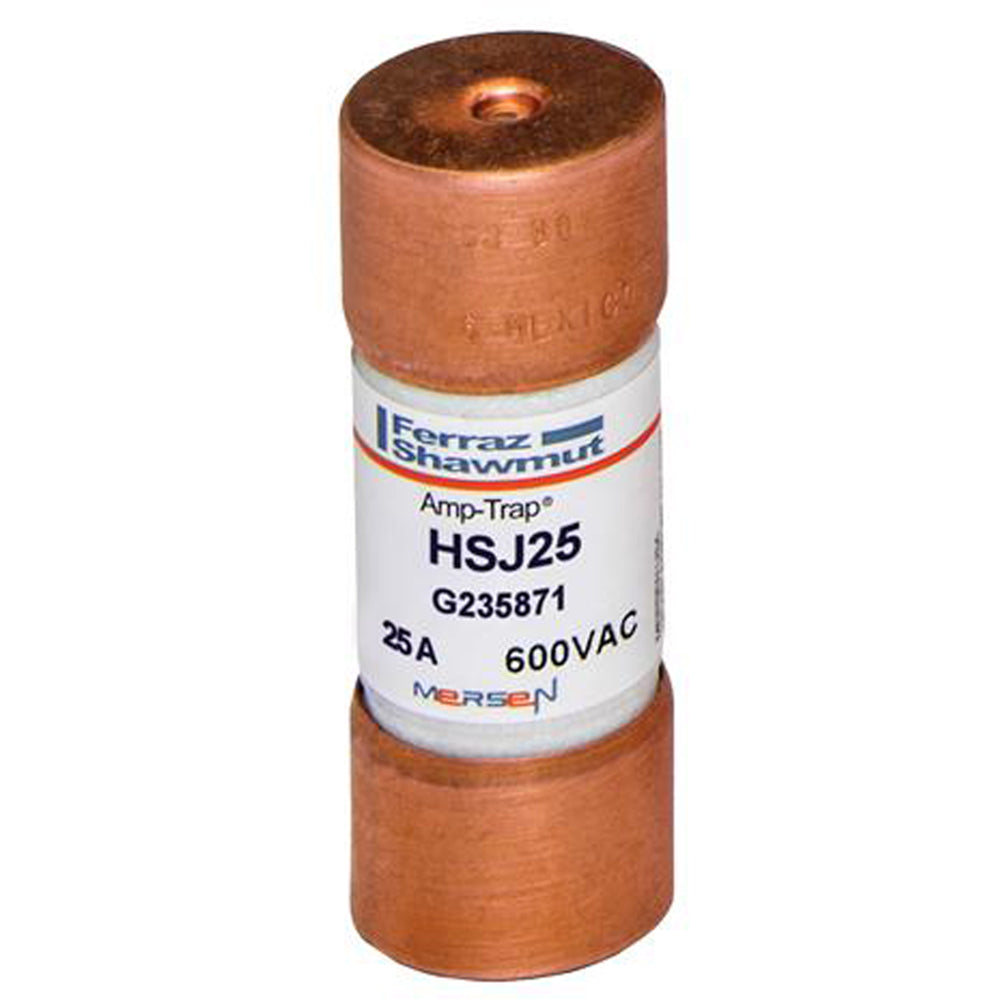

HSJ25
HSJ25 is a Mersen high-speed, current-limiting Class J fuse designed for robust protection of semiconductors and branch circuits.
This fuse combines the low I2t characteristics required for power semiconductor protection (diodes, SCRs, GTOs, SSRs) with the branch circuit performance mandated by the NEC, making it ideal for electronic motor controllers, phase controllers, drives, soft-starters, solid state relays, and control panels. Its compact, cylindrical design ensures easy installation and reliable operation in demanding environments.
Key Specifications
- Amperage: 25A
- Voltage: 600V AC, 500V DC
- Poles: Single
- Mounting Type: Clip (cylindrical)
- Interrupt Rating: 200kA AC, 100kA DC
- Series/Frame: HSJ (High Speed Class J)
- Trip Unit: High speed, current limiting
- Certifications: UL Listed (248-8, File E2137), CSA Certified (C22.2 No. 248.8)
- Dimensions: 13/16" x 2-1/4" (21mm x 57mm)
- Application: Semiconductor & branch circuit protection
- Features: Excellent cycling ability, compact size
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HSJ25
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : High Speed
- Type : HSJ
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 78200132948
- GTIN : 00782001329488
- Weight : 0.12
