HSJ125 - Mersen 125 Amp 600V Class J High-Speed Fuse with 200kA Interrupt Rating

HSJ125

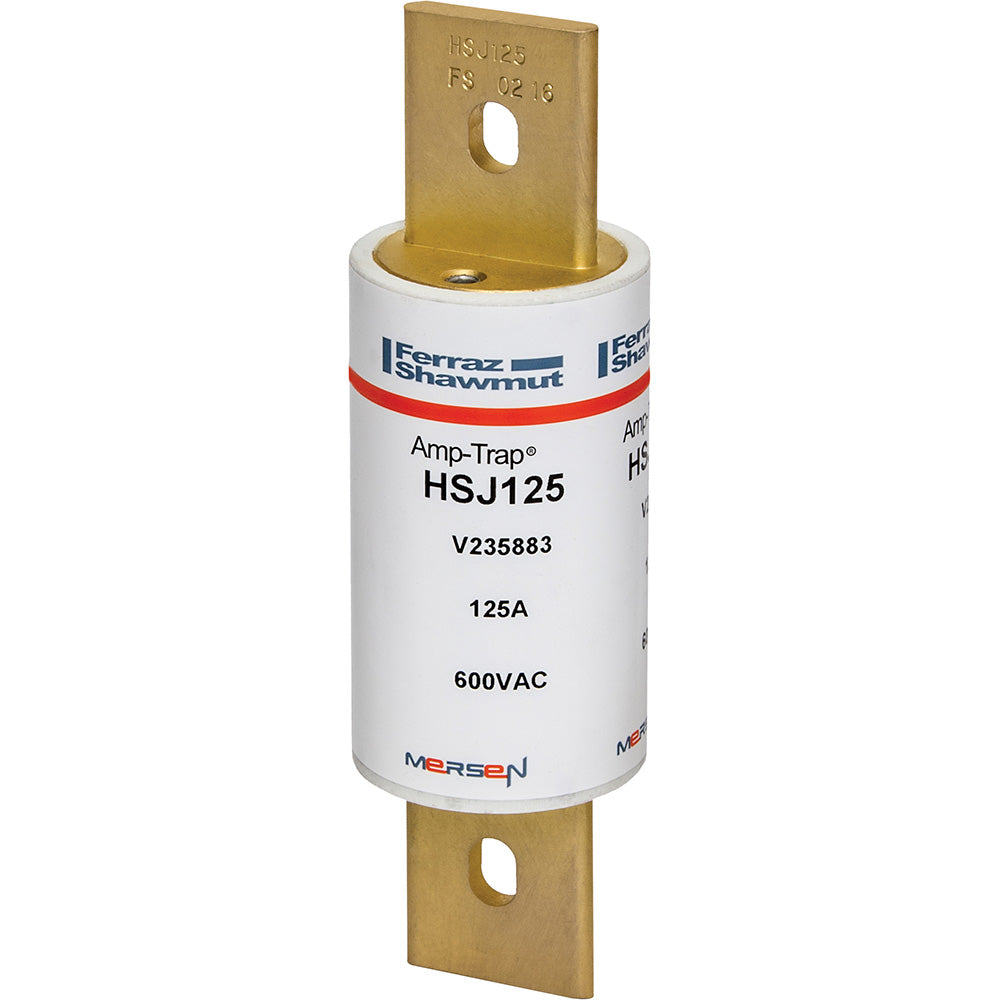

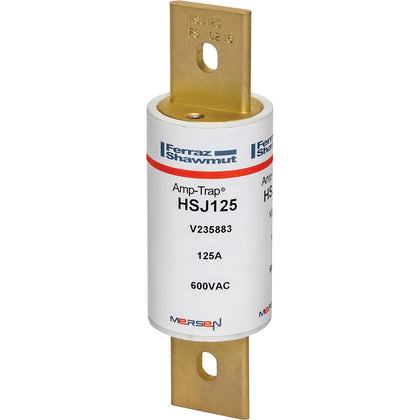

HSJ125 is a 125 Amp, 600 Volt AC Class J high-speed fuse designed by Mersen for semiconductor and diode protection.

This fuse combines the low I2t characteristic of semiconductor fuses with the branch circuit protection of a UL listed Class J fuse. It is optimized for electronic motor controllers, phase controllers, drives, soft starters, solid state relays, and control panels. The HSJ125 features a cylindrical body with blade terminals and clip mounting, providing excellent cycling ability and low thermal let-thru energy. It is UL listed to standard 248-8 and CSA certified to standard C22.2 no. 248.8, with an interrupt rating of 200kA at 600VAC and 100kA at 500VDC.

• Amperage Rating: 125 A
• Voltage Rating: 600 VAC / 500 VDC
• Fuse Class: Class J
• Fuse Type: High-Speed, Current Limiting
• Interrupt Rating: 200kA AC / 100kA DC
• Mounting Type: Clip Mount
• Terminal Type: Blade
• Body Dimensions: 1-5/8 inch diameter x 5-3/4 inch length
• Certifications: UL Listed 248-8, CSA Certified C22.2 No. 248.8
• Application: Semiconductor and diode protection, motor controllers, drives, soft starters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HSJ125
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : High Speed
• Type : HSJ
• Voltage : 600
• Amperage : 125
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 78200132961
• GTIN : 00782001329617
• Country of Origin : Mexico
• Dimensions : x 5-3/4 in x
• Weight : 0.8
