Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

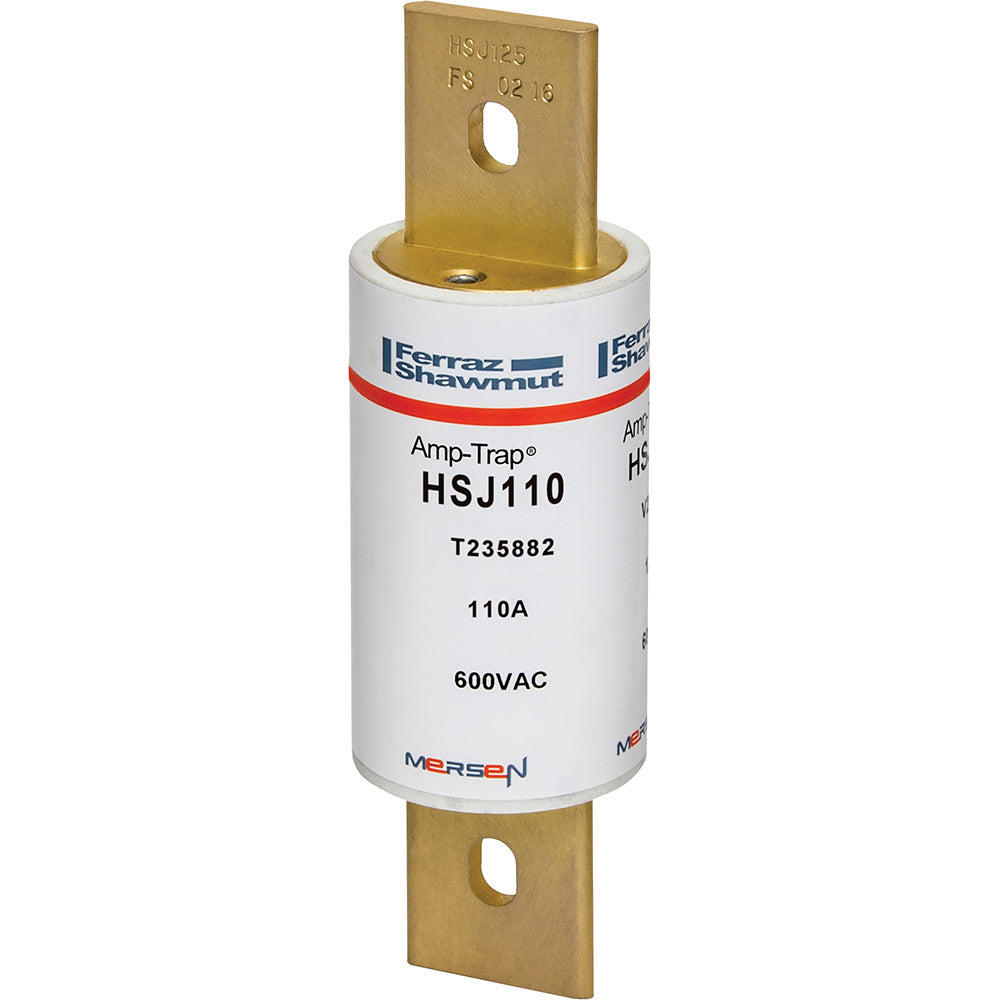

HSJ110
HSJ110 is a high-speed Class J fuse designed to combine semiconductor protection with branch-circuit performance in a single compact design. The HSJ110 delivers low I2t thermal energy let-through while maintaining compliance with NEC requirements for branch circuit protection, making it ideal for electronic motor controllers, phase controllers, drives, and control panels. This Amp-Trap fuse features optimized overload capability to withstand elevated current levels during motor controller starts, excellent cycling ability for frequent start/stop cycles without nuisance opening, and current-limiting capability to protect sensitive components such as IGBTs, DC capacitors, diodes, and SCRs.
- Amperage Rating: 110A
- AC Voltage Rating: 600VAC
- DC Voltage Rating: 500VDC
- Fuse Class: Class J
- Speed Characteristic: High Speed
- Interrupt Rating: 200kA AC, 100kA DC
- Connection Type: Blade
- Mounting: Clip
- Terminal Material: Brass
- Body Material: GMG
- UL Listed to Standard 248-8
- CSA Certified to Standard C22.2
Specifications
- Part Number: HSJ110
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : High Speed
- Type : HSJ
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001329600
- GTIN : 00782001329600
- Country of Origin : Mexico
- Dimensions : x 5-3/4 in x
- Weight : 0.8
