HSJ100 - Mersen 100A 600VAC 500VDC Class J High Speed Fuse Amp-Trap

HSJ100

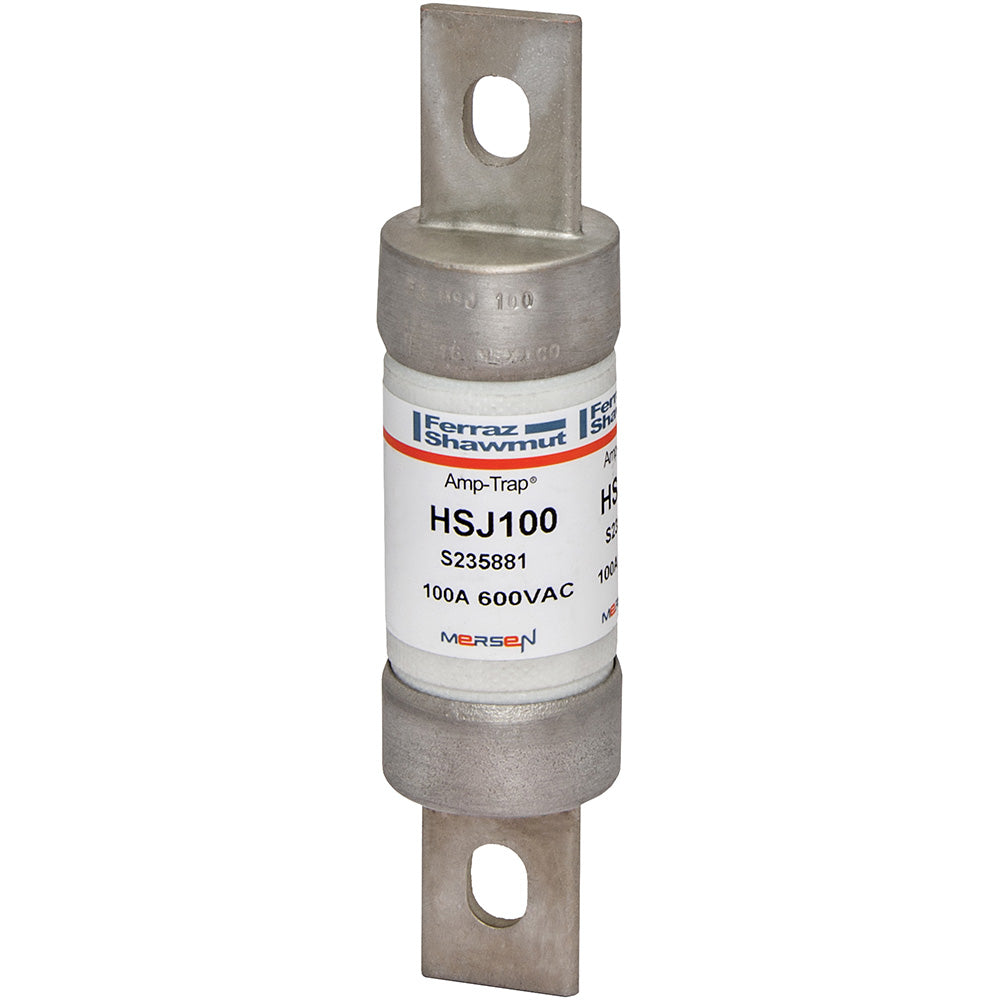

HSJ100 is a Mersen 100 Amp Class J High Speed fuse designed for reliable protection in electronic motor controllers and control panels.This fuse features a 600 VAC and 500 VDC voltage rating with a 200 kA interrupt rating, optimized for low I2t let-thru and excellent cycling ability. It uses a clip mounting type with silver-plated copper blade terminals and a GMG insulating body. The HSJ100 fuse combines semiconductor fuse low I2t characteristics with branch circuit protection per UL 248-8 and CSA C22.2 standards.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 VAC / 500 VDC
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Interrupt Rating: 200 kA AC
• Mounting Type: Clip
• Connection Material: Silver-Plated Copper
• Body Material: GMG Insulating
• Dimensions: 1.06 in diameter x 4.63 in length
• Certifications: UL 248-8, CSA C22.2 No. 248.8
• Application: Electronic motor controllers, control panels, drives, soft starters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HSJ100
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : High Speed
• Type : HSJ
• Voltage : 600
• Amperage : 100
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 782001329594
• GTIN : 00782001329594
• Weight : 0.23
