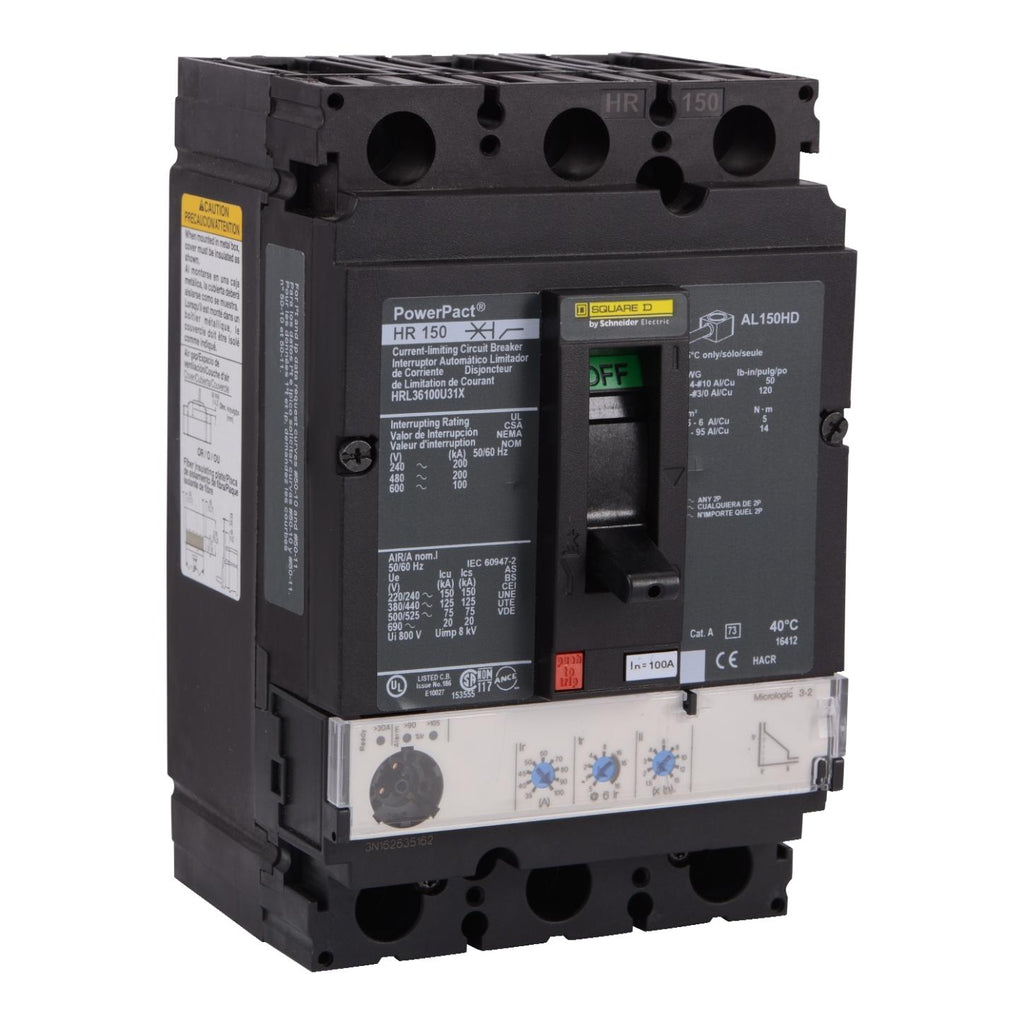

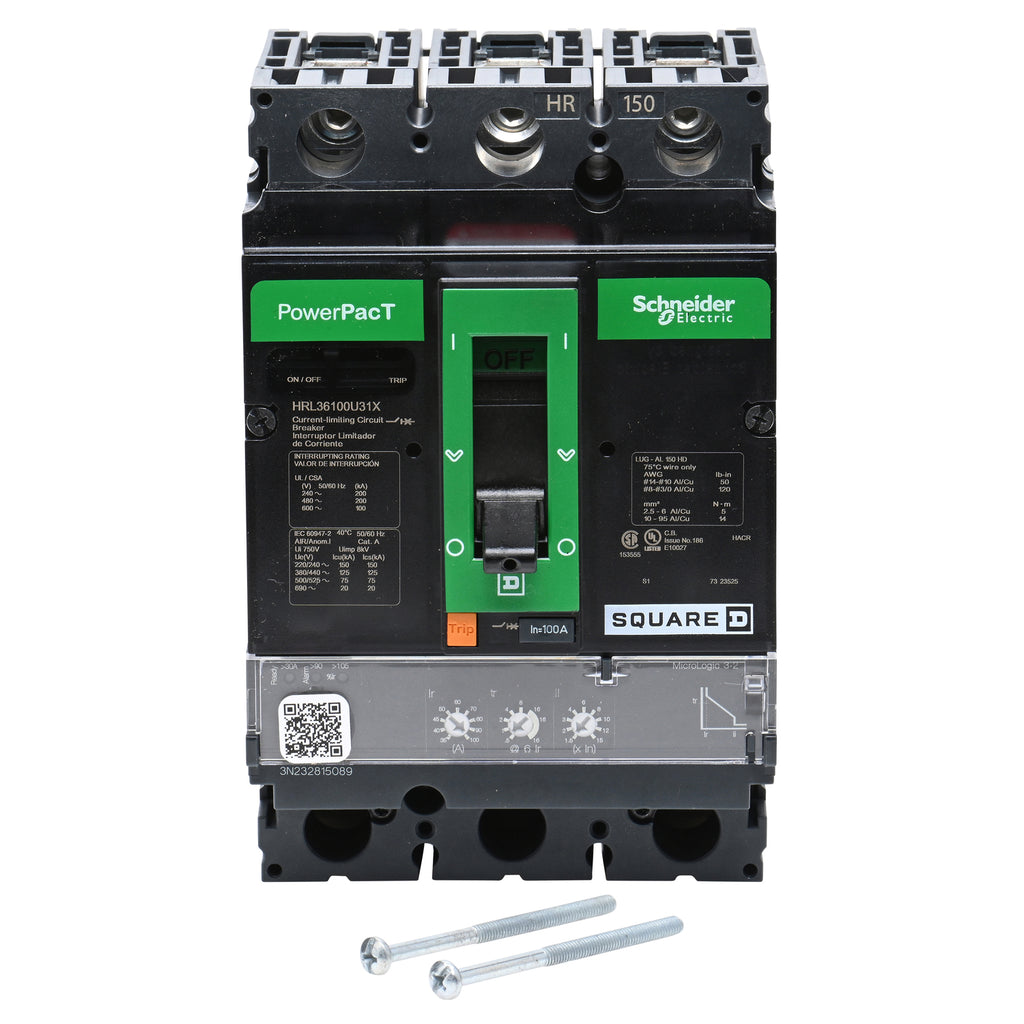

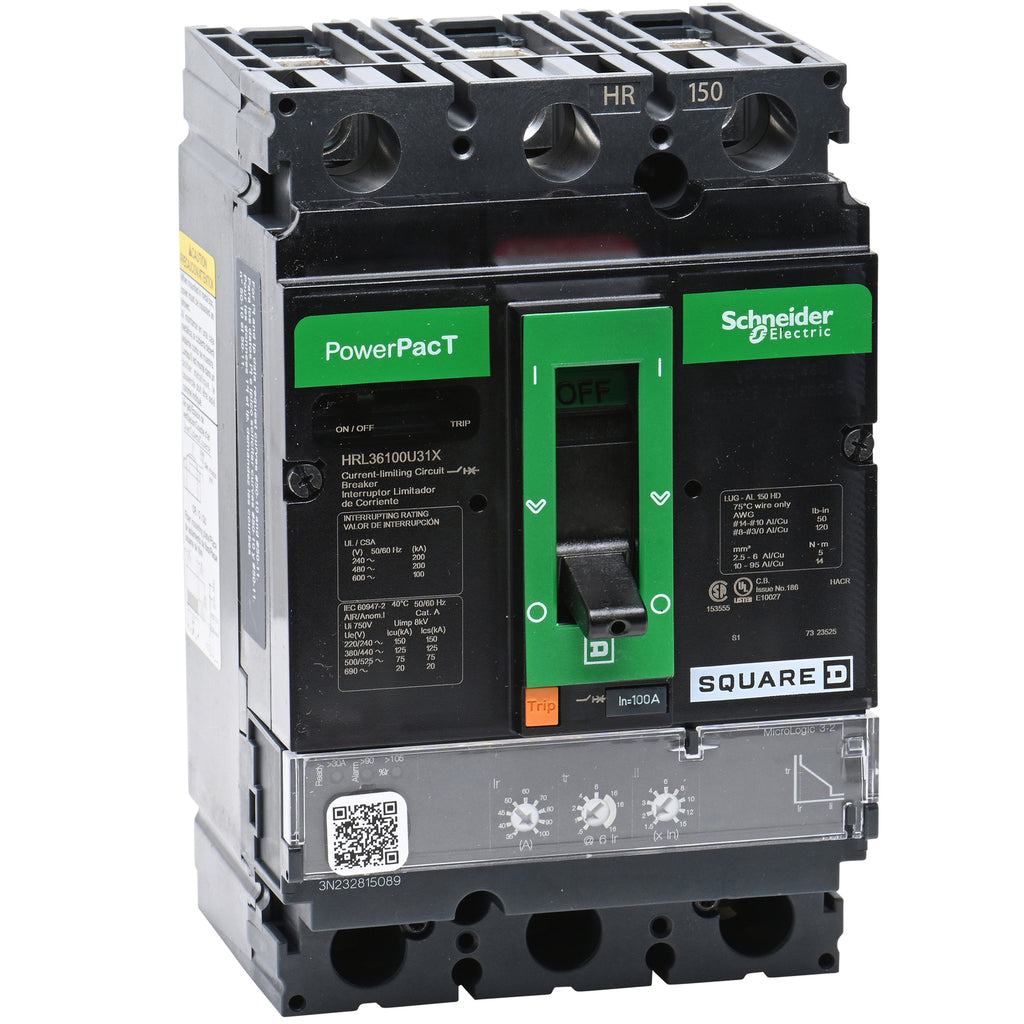

HRL36100U31X - Square D PowerPact H 100A 3 Pole Molded Case Circuit Breaker 600V 100kA Micrologic 3.2

HRL36100U31X

HRL36100U31X is a Square D PowerPact H molded case circuit breaker with a 100A rating, 3 pole configuration, and 600V AC voltage. This breaker features Micrologic 3.2 electronic trip unit and a 100kA interrupt rating at 600V, designed for reliable protection in commercial and industrial applications. Engineered for durability and safety, the HRL36100U31X offers electronic trip technology with LI (Long-time/Instantaneous) protection, current limiting capability, and is suitable for use in PowerPact H-frame switchgear. It is UL, CSA, and CE listed for compliance with major safety standards.

• Part Number: HRL36100U31X
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage: 100A
• Poles: 3
• Voltage: 600V AC
• Interrupt Rating: 100kA @ 600V
• Mounting Type: Unit Mount
• Frame Size: H
• Breaker Type: Molded Case
• Protection Type: Micrologic 3.2, LI
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HRL36100U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HRL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Solid State

Product Data

• UPC : 785901222422
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.376
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
