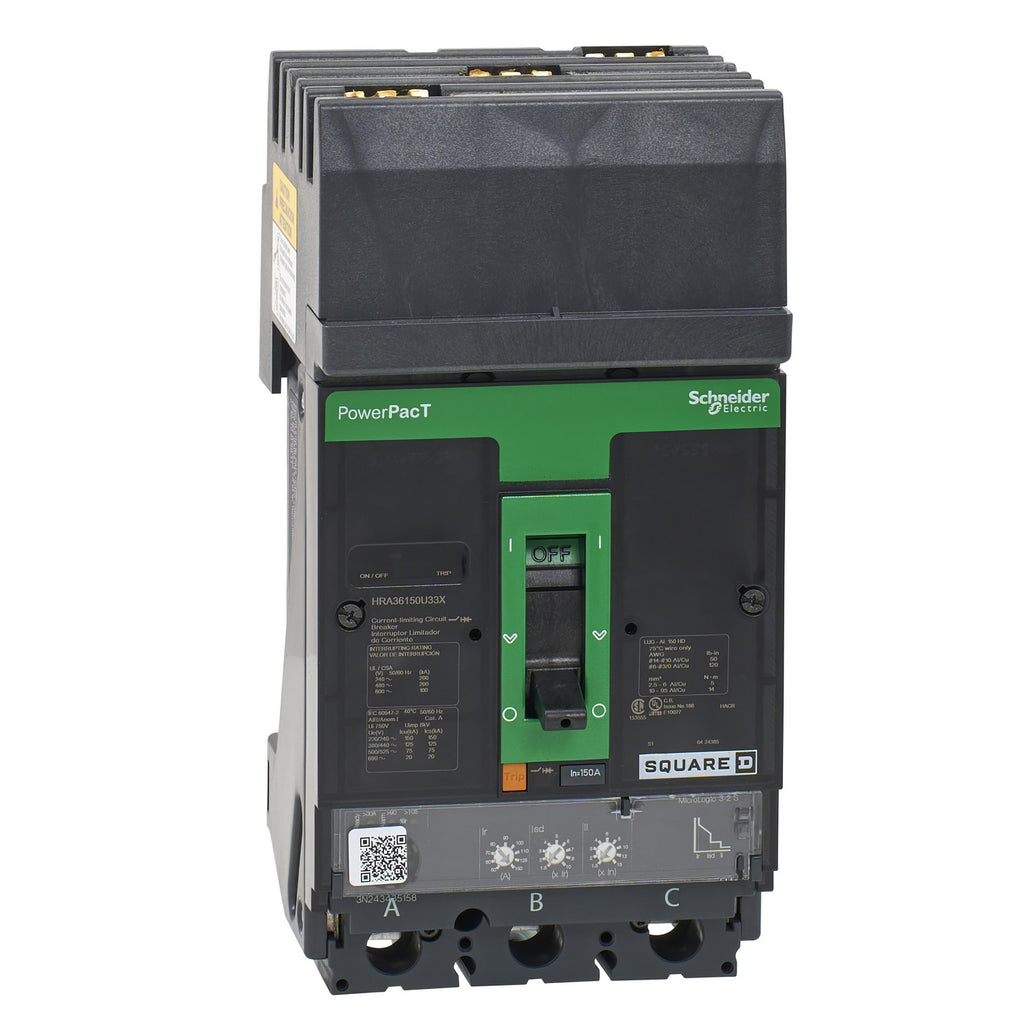

HRA36150U33X - Square D PowerPact H 150 Amp 3 Pole Molded Case Circuit Breaker 600V 150kA

HRA36150U33X

HRA36150U33X is a Square D PowerPact H molded case circuit breaker rated for 150 amps, 3 poles, and 600 volts with a 150kA interrupt rating.

This circuit breaker features a Micrologic 3.2S trip unit with LSI function, designed for reliable protection in industrial and commercial power distribution applications. It supports unit mount, I-line, or drawout constructions and complies with multiple certifications including UL 489, CSA, NEMA, IEC, and CE marking.

• Amperage: 150 Amp
• Poles: 3
• Voltage Rating: 600 VAC
• Interrupt Rating: 150 kA
• Series/Frame: PowerPact H
• Trip Unit: Micrologic 3.2S with LSI
• Mounting Type: Unit mount, I-line, or Drawout
• Certifications: UL 489, CSA, NEMA, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HRA36150U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
