Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

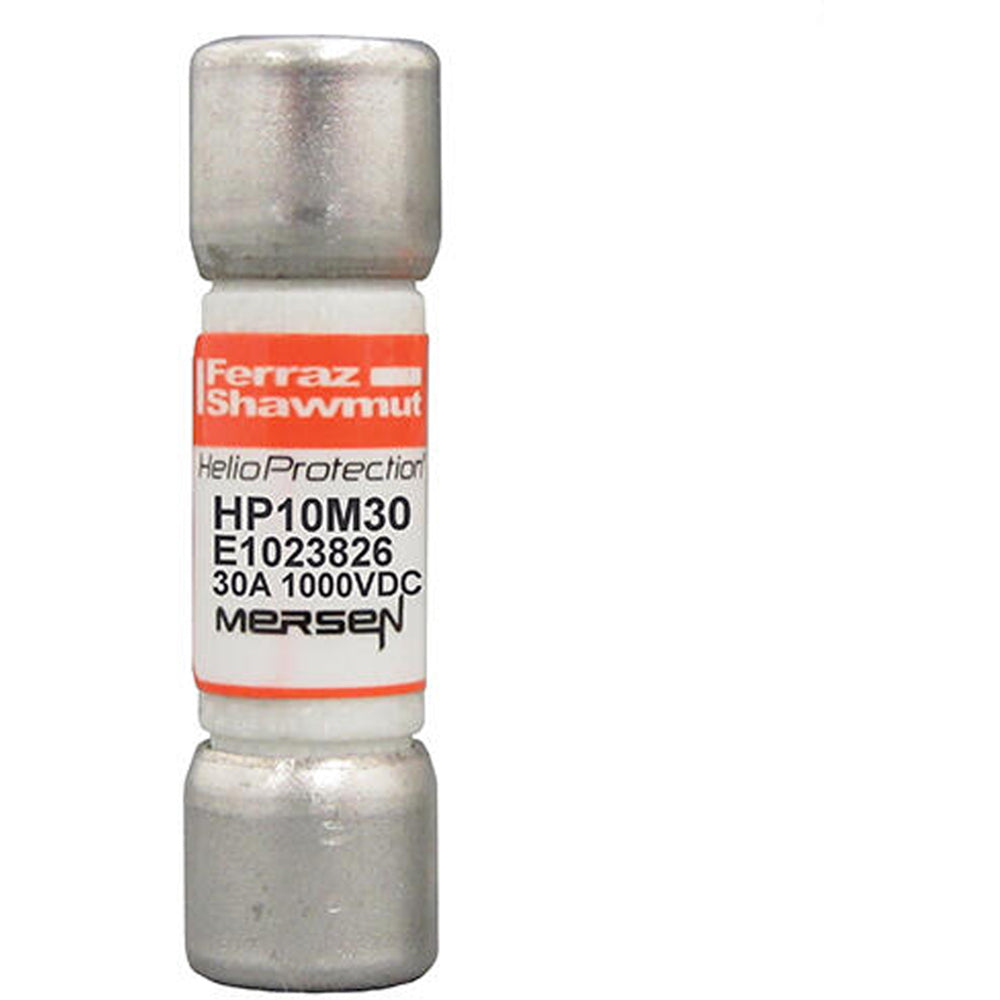

HP10M30
HP10M30 is a Mersen 30 amp, 1000 VDC photovoltaic fuse designed for string protection in solar power systems.This fast-acting Class gPV fuse features a cylindrical/microfuse body with a 10 kA interrupt rating, suitable for high DC voltage applications up to 1000 volts. It includes ferrule terminal connections with tin-plated copper material, ensuring reliable performance in photovoltaic arrays and combiner boxes.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 1000 VDC
- Interrupt Rating: 10 kA
- Fuse Type: Class gPV
- Mounting Type: Ferrule Terminal
- Body Style: Cylindrical/Microfuse
- Terminal Material: Tin-Plated Copper
- Series: HelioProtection®
- Application: Photovoltaic String Protection
- Fast Acting
- Certifications: UL Listed for Photovoltaic Use
- Part Number: HP10M30
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Photovoltaic
- Type : HP
- Voltage : 1000
- Amperage : 30
- AIC rating : 50kA@1000VDC
- Connection : Ferrule
- Diameter : 10.4
- Barrels : 1
- UPC : 782001436872
- GTIN : 00782001436872
- Country of Origin : Mexico
- Dimensions : x 0.41 in x
- Weight : 0.01
