2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
HP10M15

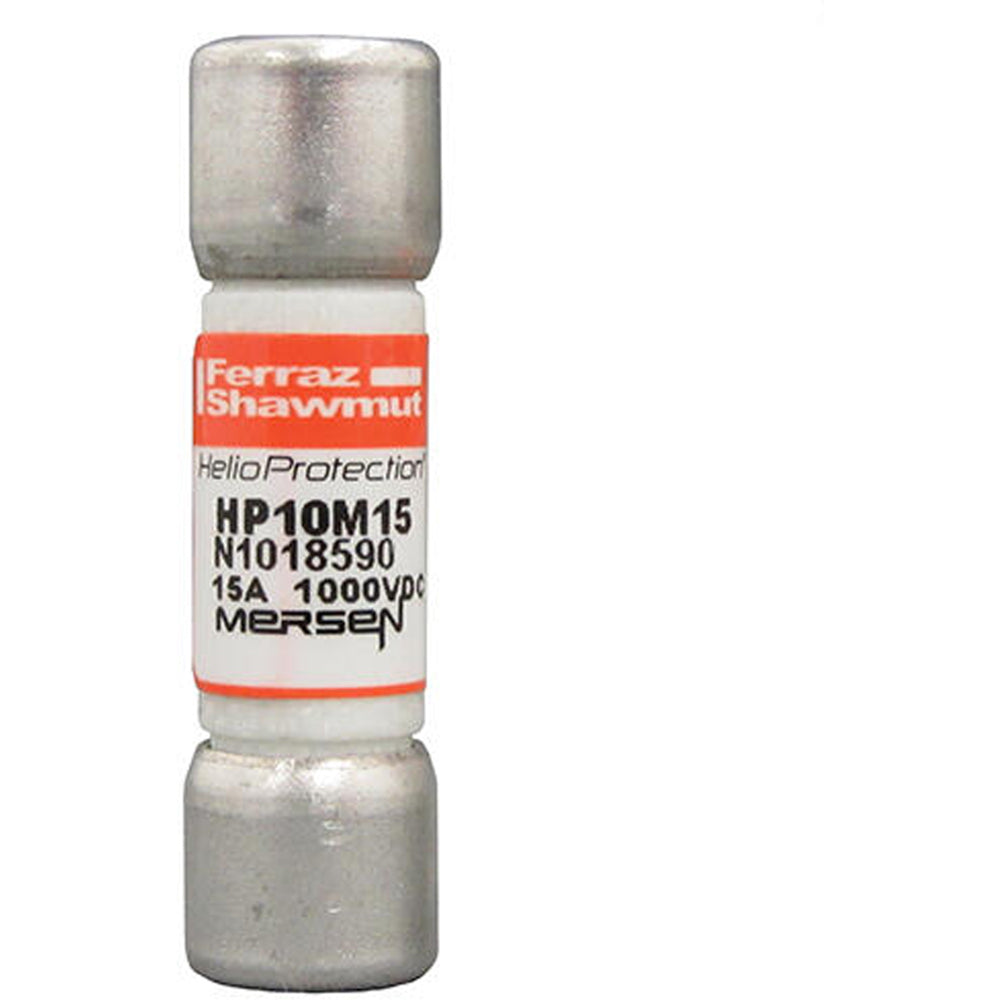

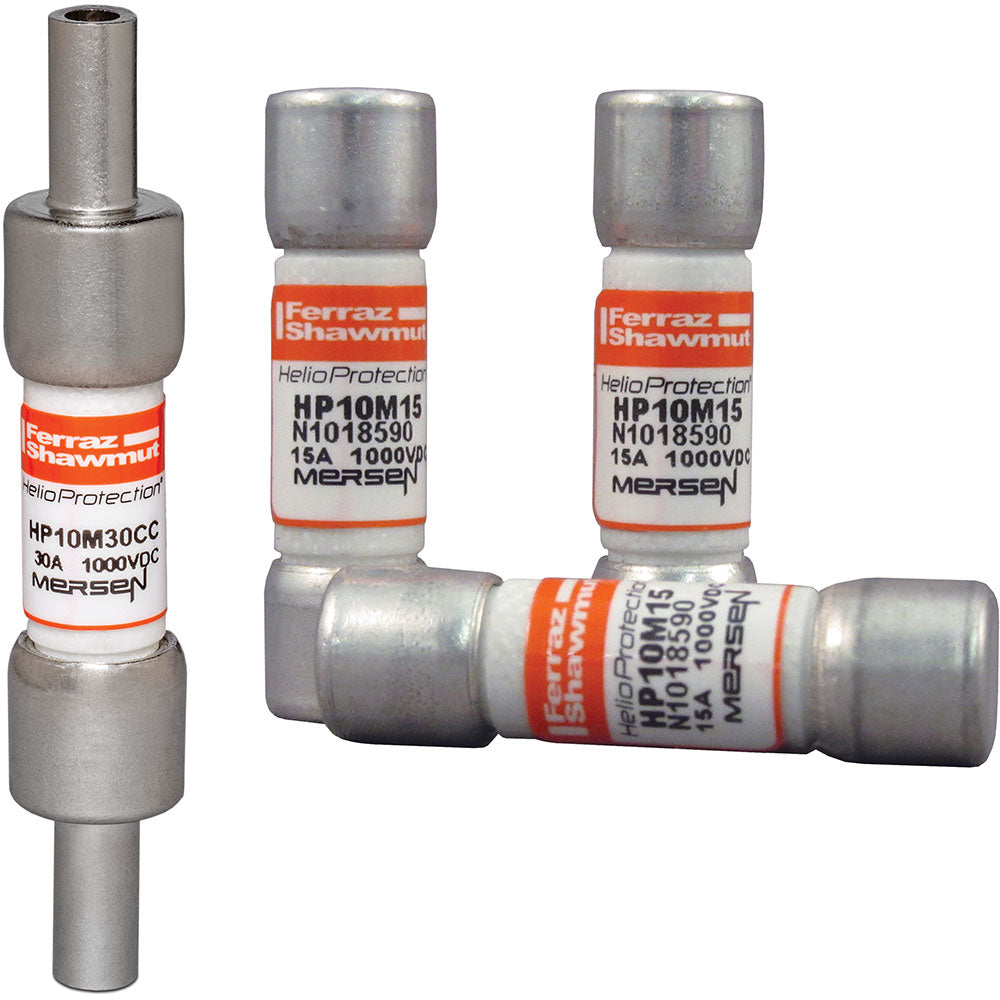

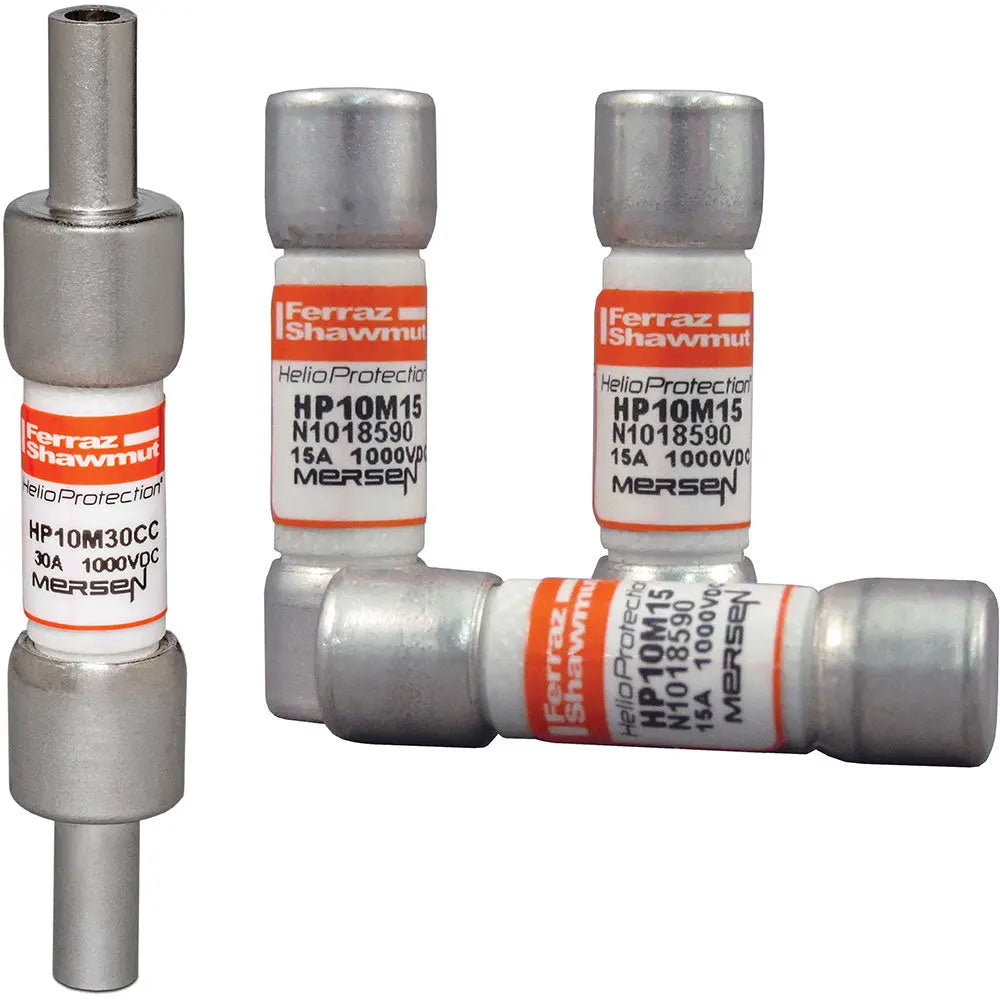

HP10M15 is a photovoltaic fuse designed by Mersen Ferraz Shawmut for reliable protection of solar power systems.This 15 amp, 1000 VDC rated fuse features a gPV speed characteristic and is engineered for clip mounting with tin-plated copper ferrule terminals. It offers a 10 kA interrupt rating and is UL listed for photovoltaic applications, ensuring safe interruption of low fault currents typical in PV arrays. The fuse's durable construction withstands temperature cycling to enhance system longevity.
- Amperage: 15 A
- Voltage Rating: 1000 VDC
- Fuse Class: Photovoltaic (gPV)
- Mounting Type: Clip
- Interrupt Rating: 10 kA
- Terminal Type: Tin-Plated Copper Ferrule
- Body Material: Melamine
- Length: 1.5 inches
- Diameter: 0.41 inches
- UL Listed for PV applications
- RoHS Compliant
Specifications
- Part Number: HP10M15
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Photovoltaic
- Type : HP
- Voltage : 1000
- Amperage : 15
- AIC rating : 50kA@1000VDC
- Connection : Ferrule
- Diameter : 10.4
- Barrels : 1
Product Data
- UPC : 78200142995
- GTIN : 00782001429959
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CE, CSA Component Certified C22.2, IEC 60269-6 Approved, UL Listed to Standard UL2579 File E333668
