Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
HP10M12

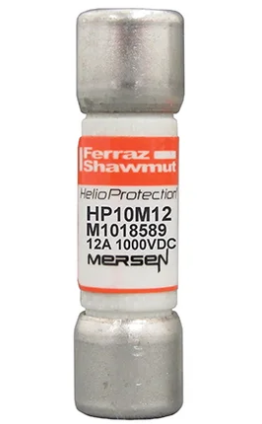

HP10M12 is a 12 amp, 1000VDC photovoltaic fuse from Ferraz Shawmut Mersen designed for solar power circuit protection.
This fuse features a time delay characteristic and a midget 10x38mm size, rated for 10kA interrupt capacity at 1000 volts DC. It is designed for low minimum breaking capacity at 1.35 times the rated current, ensuring safe interruption of photovoltaic circuits. The fuse has a melamine body with copper alloy end caps and is suitable for PV string, combiner box, and inverter protection applications.
- Key Specifications
- Amperage: 12 Amps
- Voltage Rating: 1000 VDC
- Interrupt Rating: 10,000 Amps (10kA)
- Fuse Type: Photovoltaic (PV) Fuse
- Time Delay Characteristic
- Physical Size: 10x38 mm (Midget)
- Body Material: Melamine
- End Caps: Copper Alloy
- Minimum Breaking Capacity: 1.35x rated current
- Application: PV string, combiner box, inverter protection
- Part Number: HP10M12
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Photovoltaic
- Type : HP
- Voltage : 1000
- Amperage : 12
- AIC rating : 50kA@1000VDC
- Connection : Ferrule
- Diameter : 10.4
- Barrels : 1
- UPC : 782001429942
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.08
- Certification : CE, CSA Component Certified C22.2, IEC 60269-6 Approved, UL Listed to Standard UL2579 File E333668
