Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
HP10M10

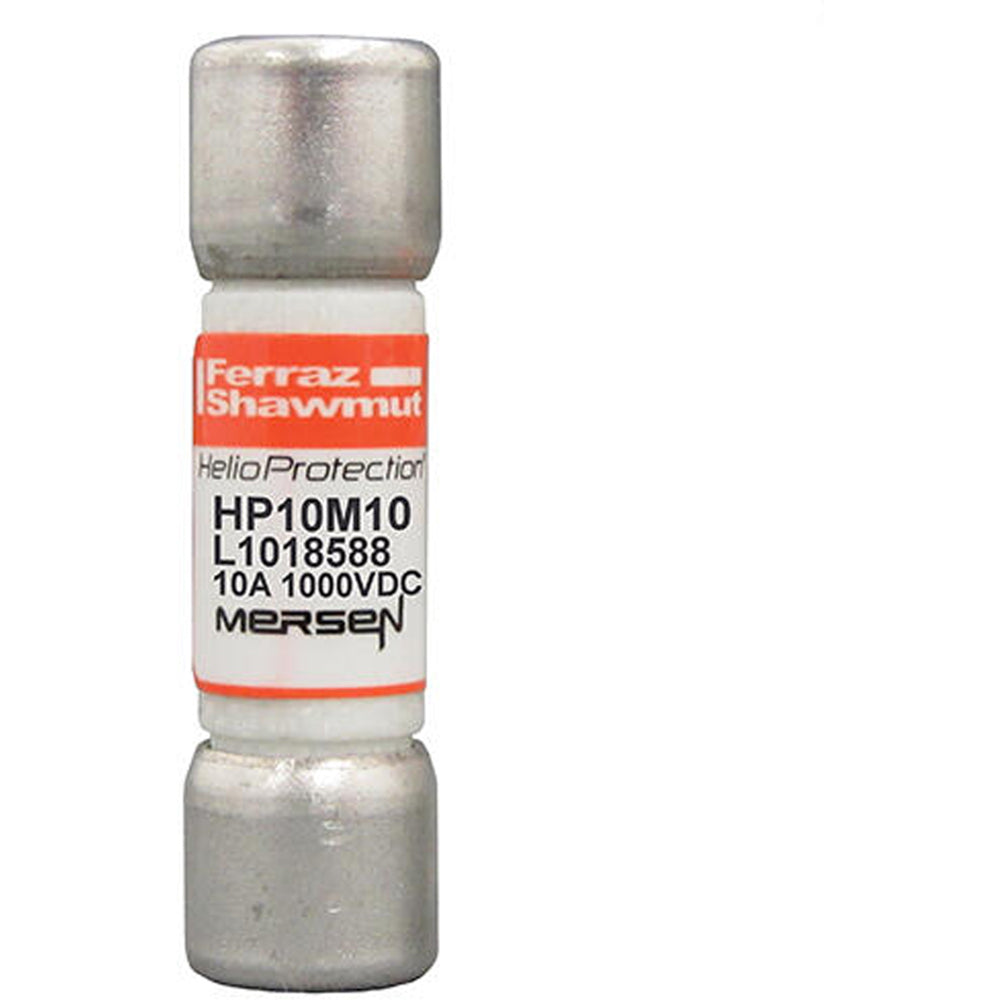

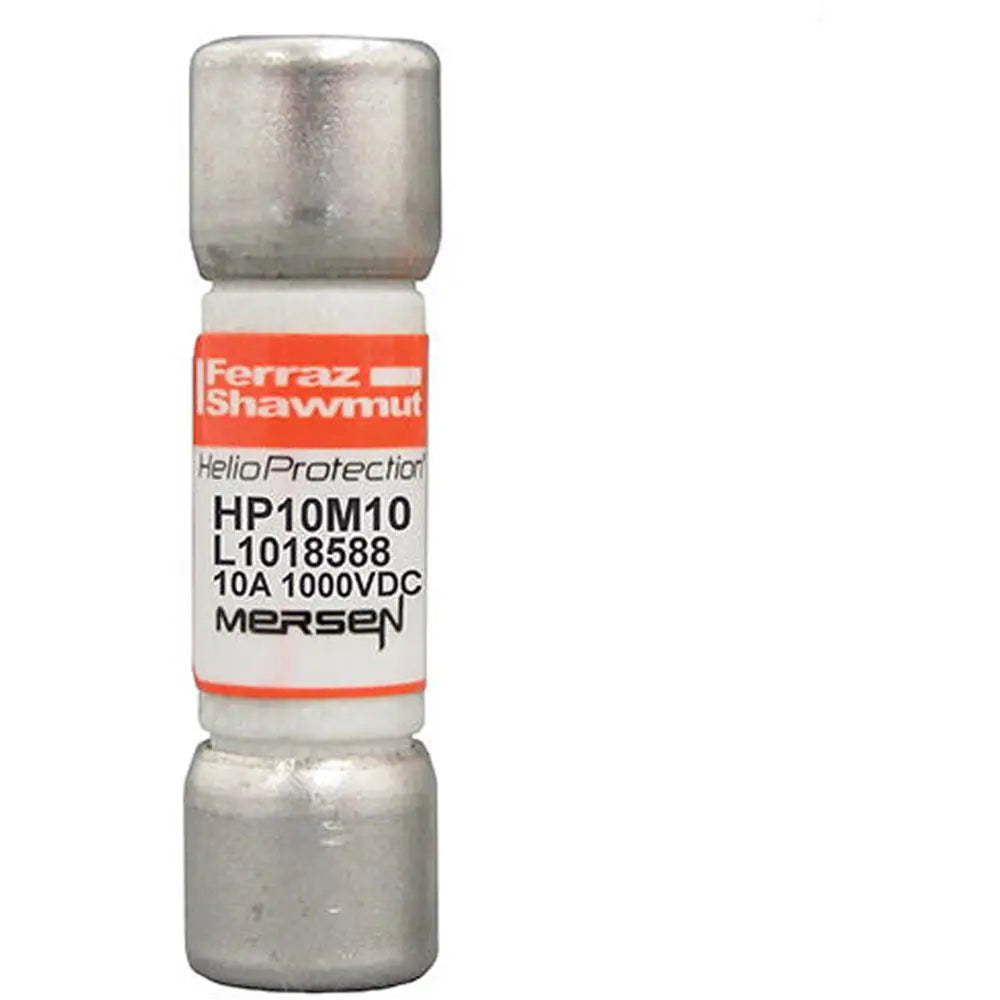

HP10M10 is a photovoltaic fuse designed for high DC voltage applications, featuring a 10A current rating and 1000VDC voltage rating for reliable circuit protection. This cylindrical midget fuse is constructed with a GMG body material and features tin-plated copper ferrule terminals for secure connections. It is rated for gPV class protection and is suitable for use in photovoltaic and industrial power distribution systems.
- Part Number: HP10M10
- Manufacturer: Ferraz Shawmut
- Amperage: 10A
- Voltage Rating: 1000VDC
- Poles: 1
- Mounting Type: Ferrule for clip
- Interrupt Rating: 50kA
- Series/Frame: HP10M
- Fuse Class: gPV
- Body Material: GMG
- Terminal Material: Tin-Plated Copper
- Physical Size: 10.31 mm x 38.1 mm
Specifications
- Part Number: HP10M10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Photovoltaic
- Type : HP
- Voltage : 1000
- Amperage : 10
- AIC rating : 50kA@1000VDC
- Connection : Ferrule
- Diameter : 10.4
- Barrels : 1
Product Data
- UPC : 078200142993
- GTIN : 00782001429935
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CE, CSA Component Certified C22.2, IEC 60269-6 Approved, UL Listed to Standard UL2579 File E333668
