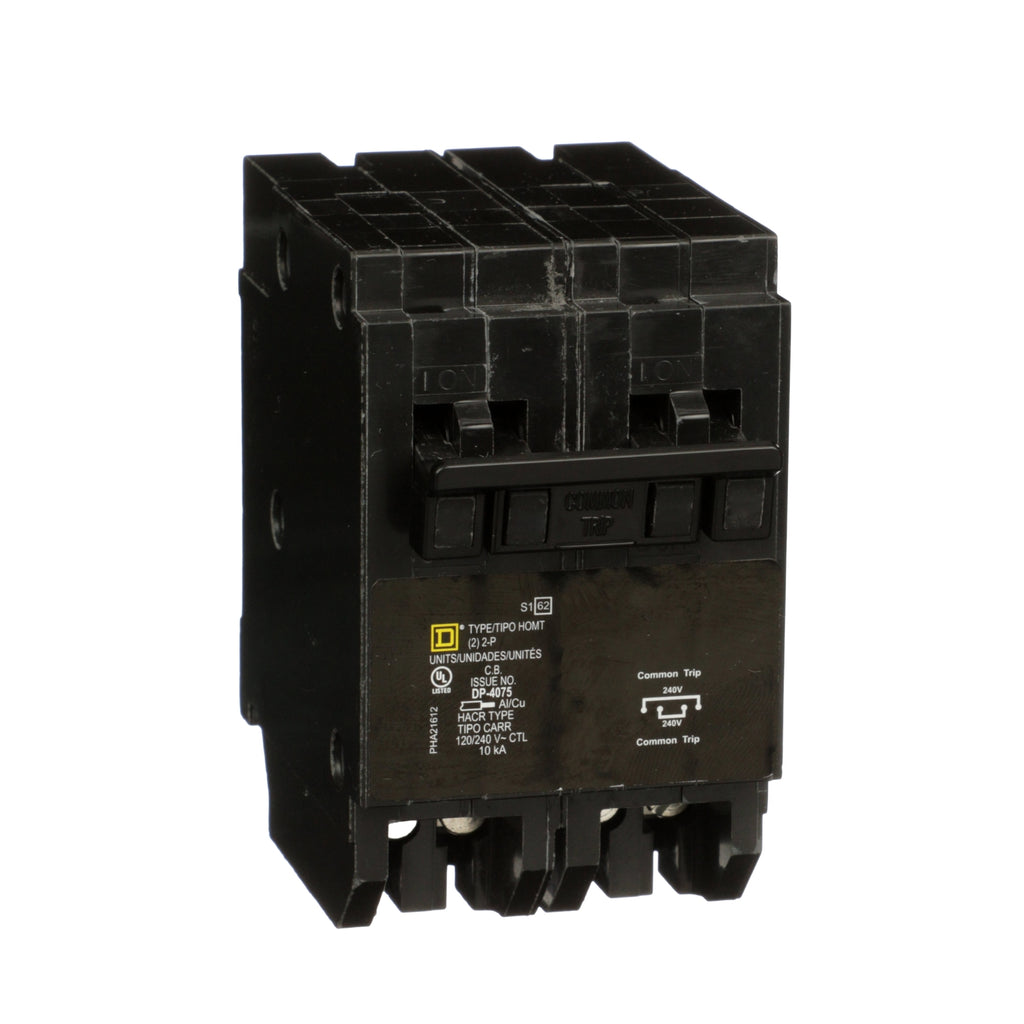

HOMT230240 - Schneider Electric Homeline Quad Tandem Mini Circuit Breaker 2P 30A/40A 120/240V Plug-in Mount 10kA AIR

HOMT230240

HOMT230240 is a Schneider Electric Homeline quad tandem mini circuit breaker featuring 2 poles rated at 30A and 2 poles rated at 40A for 120/240 VAC applications.This plug-in mount breaker offers a 10 kA interrupting rating and is HACR rated, designed for reliable protection in residential and light commercial electrical panels. It supports AWG 14 to AWG 8 copper or aluminum wiring and is UL Listed for safety compliance.

• Type: Quad tandem mini circuit breaker
• Poles: 2 poles at 30A, 2 poles at 40A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA AIR
• Mounting Type: Plug-in
• Series/Frame: Homeline
• Trip Unit: Thermal-magnetic
• Certifications: UL Listed, HACR rated
• Wire Size: AWG 14 to AWG 8 copper/aluminum
• Electrical Connection: Box lugs
• Dimensions: 3.13 in H x 1.97 in W x 3.29 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT230240
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901041009
• GTIN : 785901041009
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.29 in (83.57 mm) (Height x Width x Depth)
• Weight : 0.85 lb
• Wire Size : 1x AWG 14 to AWG 8, 1x AWG 14 to AWG 6, Aluminum/Copper
