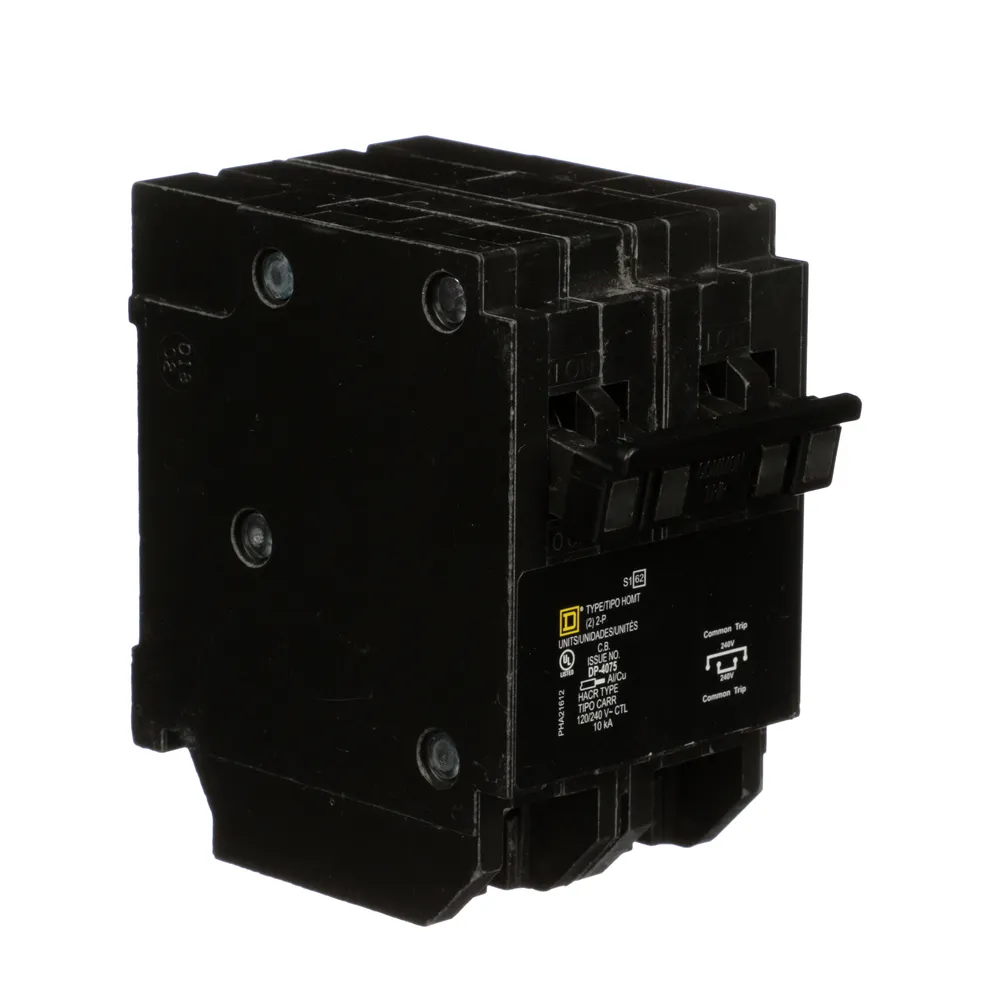

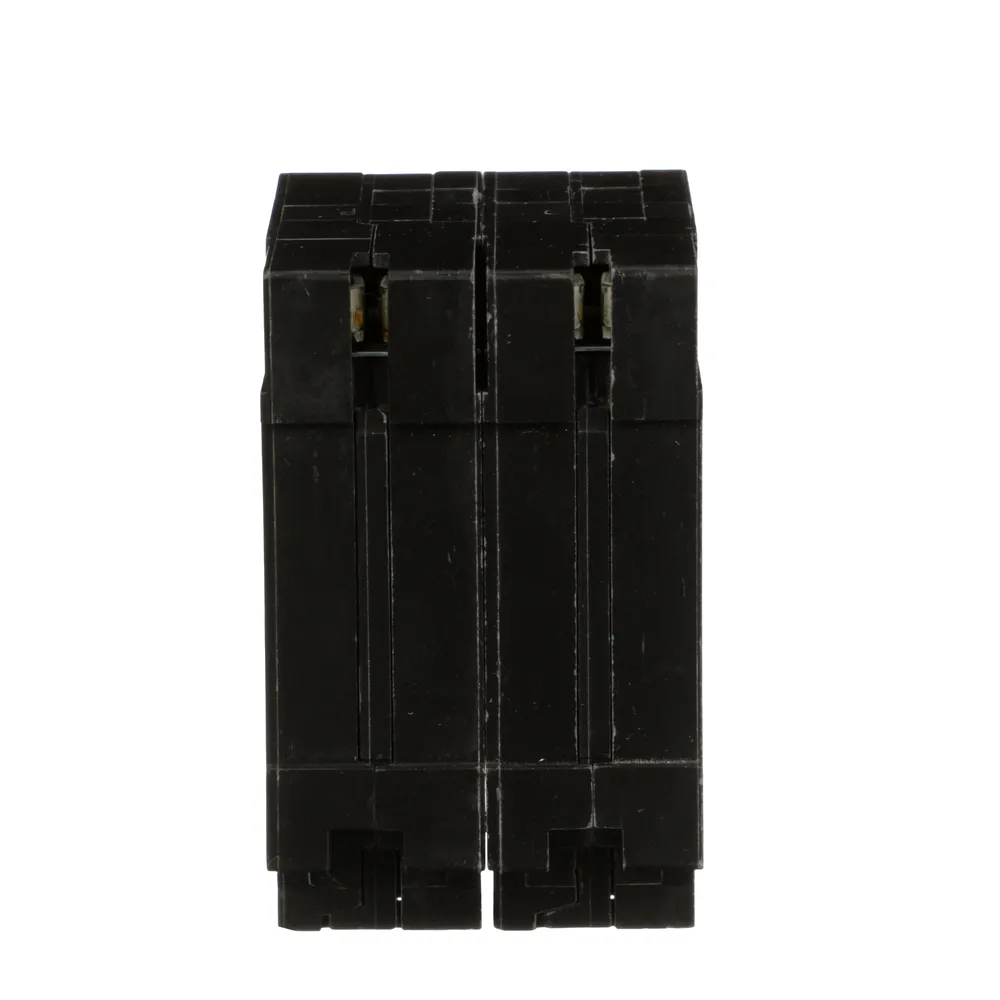

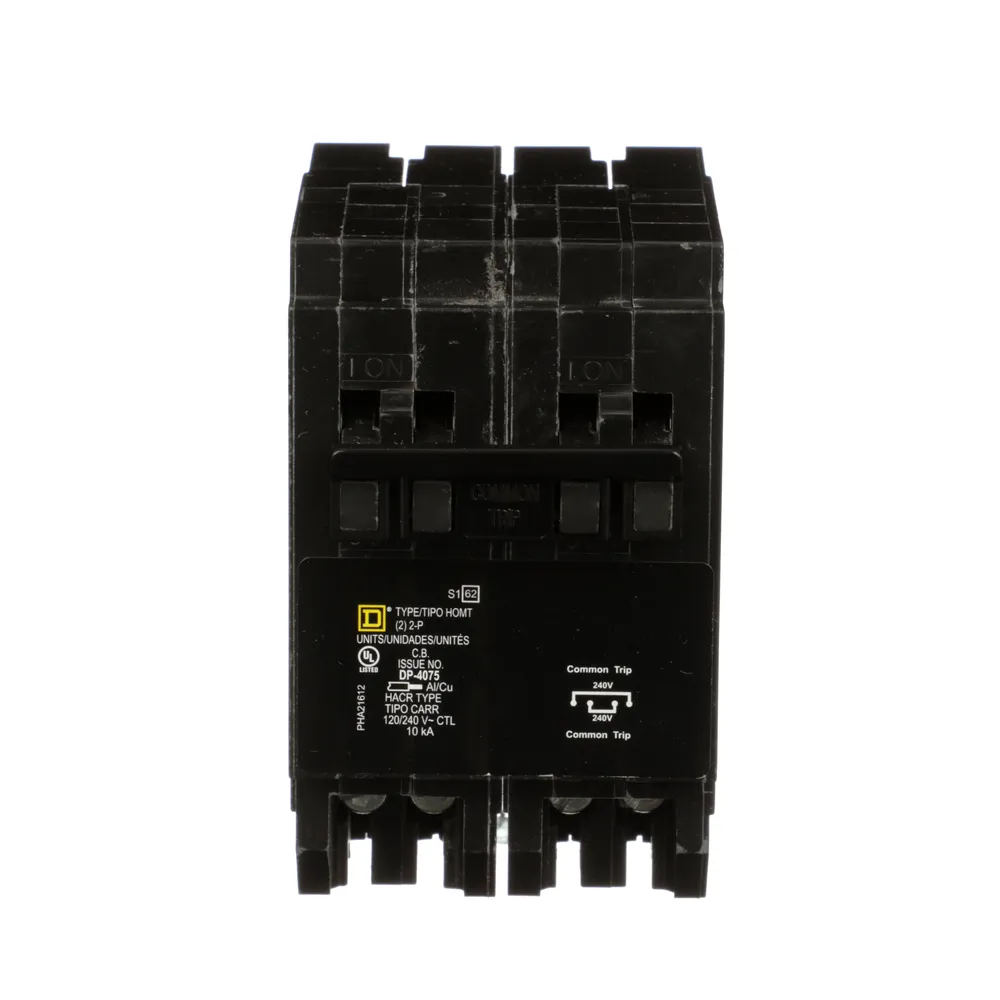

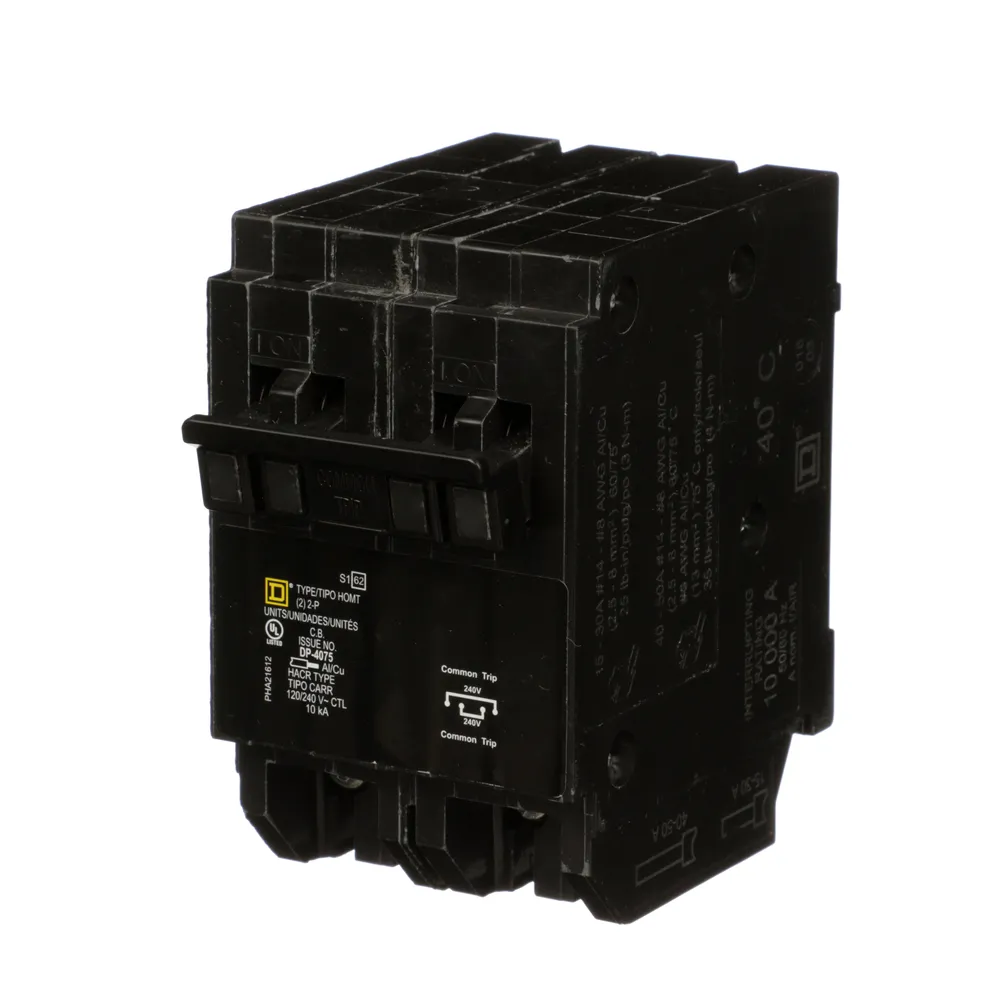

HOMT215230 - Schneider Electric Homeline Quad Tandem Mini Circuit Breaker 15A/30A 2 Pole 120/240V 10kA Plug-In

HOMT215230

HOMT215230 is a Schneider Electric Homeline quad tandem mini circuit breaker designed for residential and commercial use.This 2 pole circuit breaker features one 2-pole breaker rated at 15A and another 2-pole breaker rated at 30A, supporting 120/240 VAC systems with a 10 kA interrupting rating. It uses a plug-in mounting type for fast installation and is UL listed and HACR rated for safety and reliability.

• Type: Quad tandem mini circuit breaker
• Series: Homeline
• Current Ratings: 15A and 30A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Interrupt Rating: 10 kA AIR
• Mounting Type: Plug-in
• Certifications: UL Listed, HACR rated
• Wire Size: AWG 14 to AWG 8 copper/aluminum
• Dimensions: 3.13" H x 1.97" W x 3.23" D
• Electrical Connection: Box lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT215230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901969495
• GTIN : 785901969495
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 1
• Certification : UL
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
