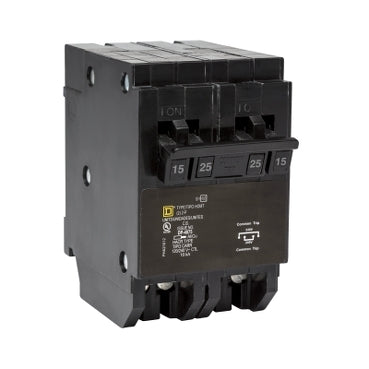

HOMT215225 - Square D Homeline Quad Tandem Mini Circuit Breaker, 1 x 2 Pole 15A, 1 x 2 Pole 25A, 120/240VAC, 10kA Interrupt, Plug-In Mount, UL Listed

HOMT215225

HOMT215225 is a Square D Homeline quad tandem mini circuit breaker designed for fast installation and superior circuit protection in residential and light commercial applications.

This breaker combines two 2-pole breakers in a single unit: one rated 15A and the other 25A, both at 120/240VAC, with a 10kA interrupting rating. It is plug-in mounted for easy installation in Homeline load centers and accepts 14 to 8 AWG copper or aluminum wire. The compact design allows it to fit two circuits in the space of a standard 2-pole breaker, making it ideal for panel upgrades and expansions where space is limited.

Key Specifications
• Part Number: HOMT215225
• Manufacturer: Square D
• Series/Frame: Homeline
• Amperage: 15A (1 x 2 pole), 25A (1 x 2 pole)
• Voltage: 120/240VAC
• Poles: Quad tandem (two 2-pole breakers)
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA
• Trip Unit: Thermal magnetic
• Wire Range: 14 to 8 AWG Al/Cu
• Certifications: UL Listed, HACR rated
• Dimensions: 3.13 in H x 2.00 in W x 2.98 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT215225
• Manufacturer : Schneider Electric
• Brand : Square D

Product Data

• UPC : 785901969242
• GTIN : 00785901969242
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 1
