Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
HOM816L125TC

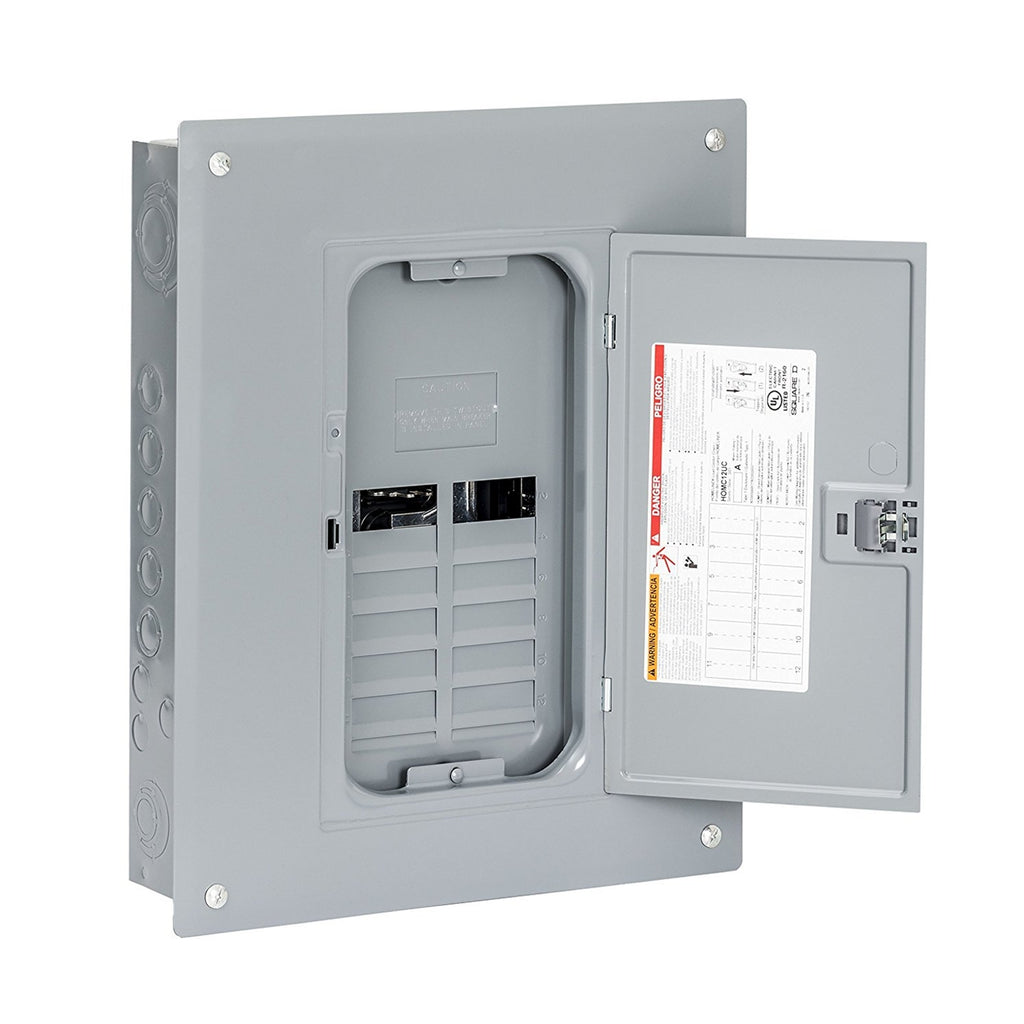

HOM816L125TC is a Square D Homeline load center designed for 1-phase electrical systems with 8 spaces and 16 circuits rated at 125 amps.This load center features a 120/240 V AC voltage rating, NEMA 1 indoor mounting, and tin-plated aluminum bus bars for reliable conductivity and corrosion resistance. It supports AWG 6 to AWG 2/0 aluminum or copper wiring and provides protection against overloads and short circuits. The product is UL listed and designed for fast installation with a plug-on neutral configuration.
- Amperage: 125A
- Voltage: 120/240 V AC
- Poles: 1 phase, 3 wires
- Spaces: 8
- Circuits: 16
- Mounting Type: Indoor, NEMA 1
- Bus Bars: Tin-plated aluminum
- Wire Range: AWG 6 to AWG 2/0 aluminum/copper
- Interrupt Rating: 10 kA
- Series/Frame: Homeline
- Trip Unit: Main lug load center
- Certifications: UL Listed
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: HOM816L125TC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 240
- Amperage : 125
- Nema Rating : 1
- Compatible Frames : QOM
Product Data
- GTIN : 00785901824046
- Country of Origin : United States
- Dimensions : 17.9 in (455 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 17.591
