Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Load Center
Description
HOM612L100S

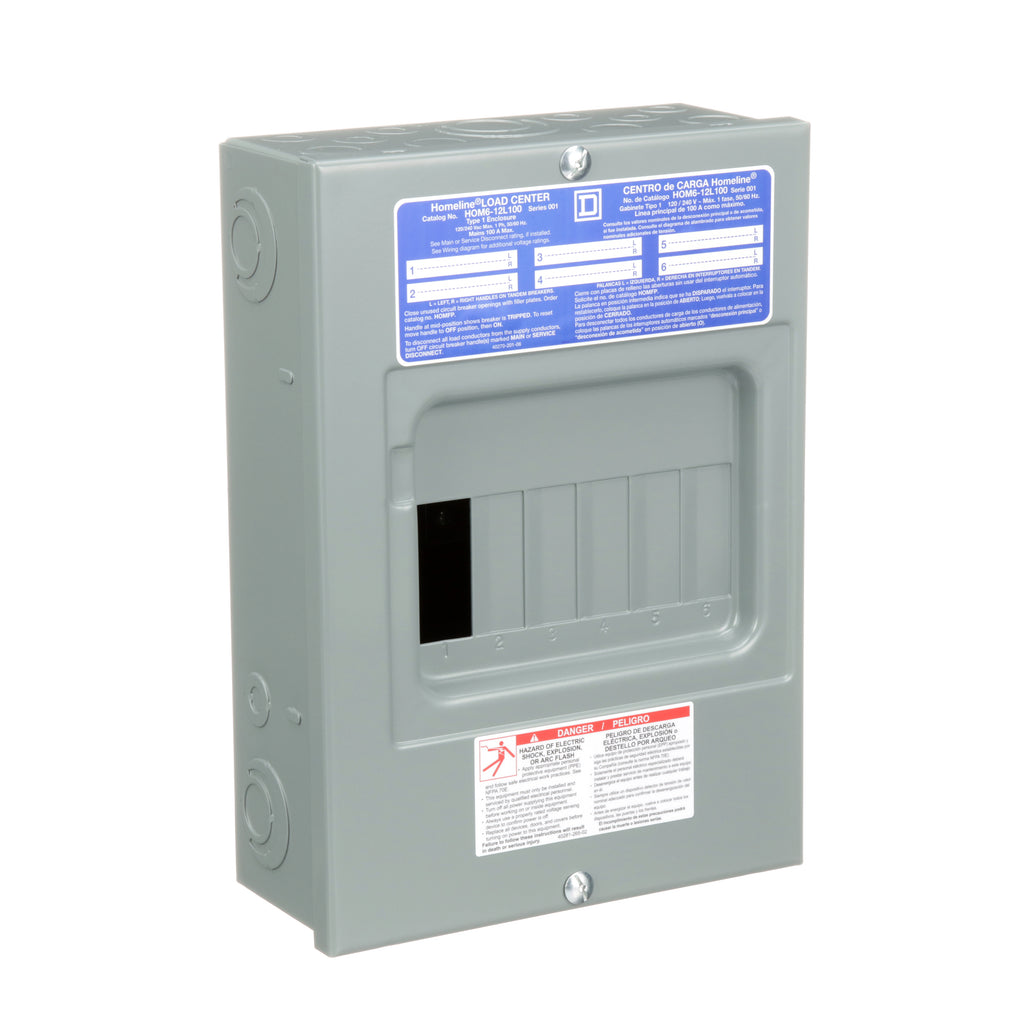

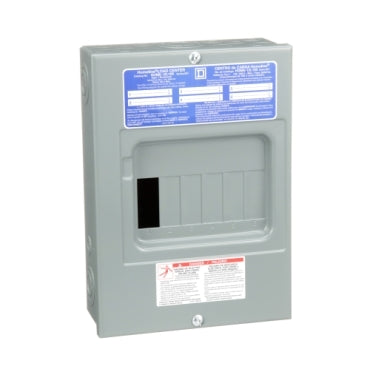

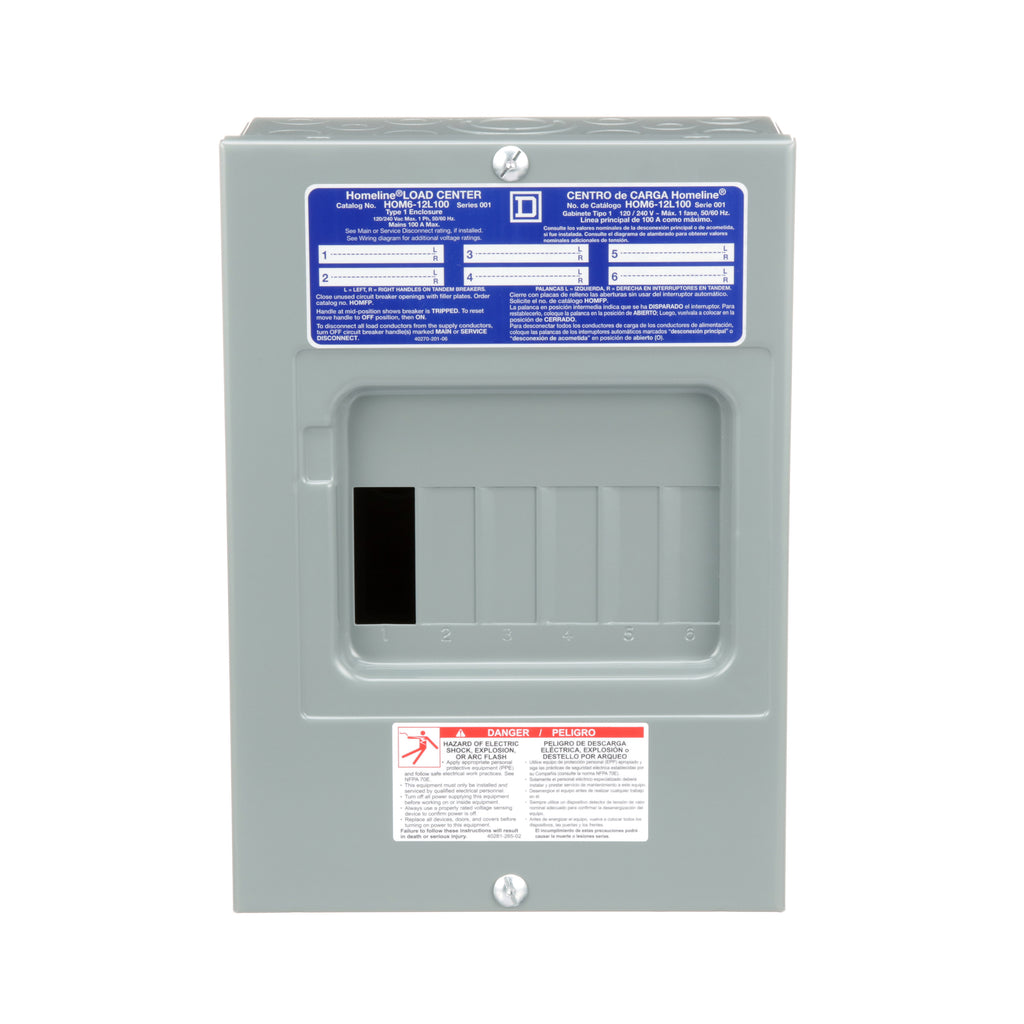

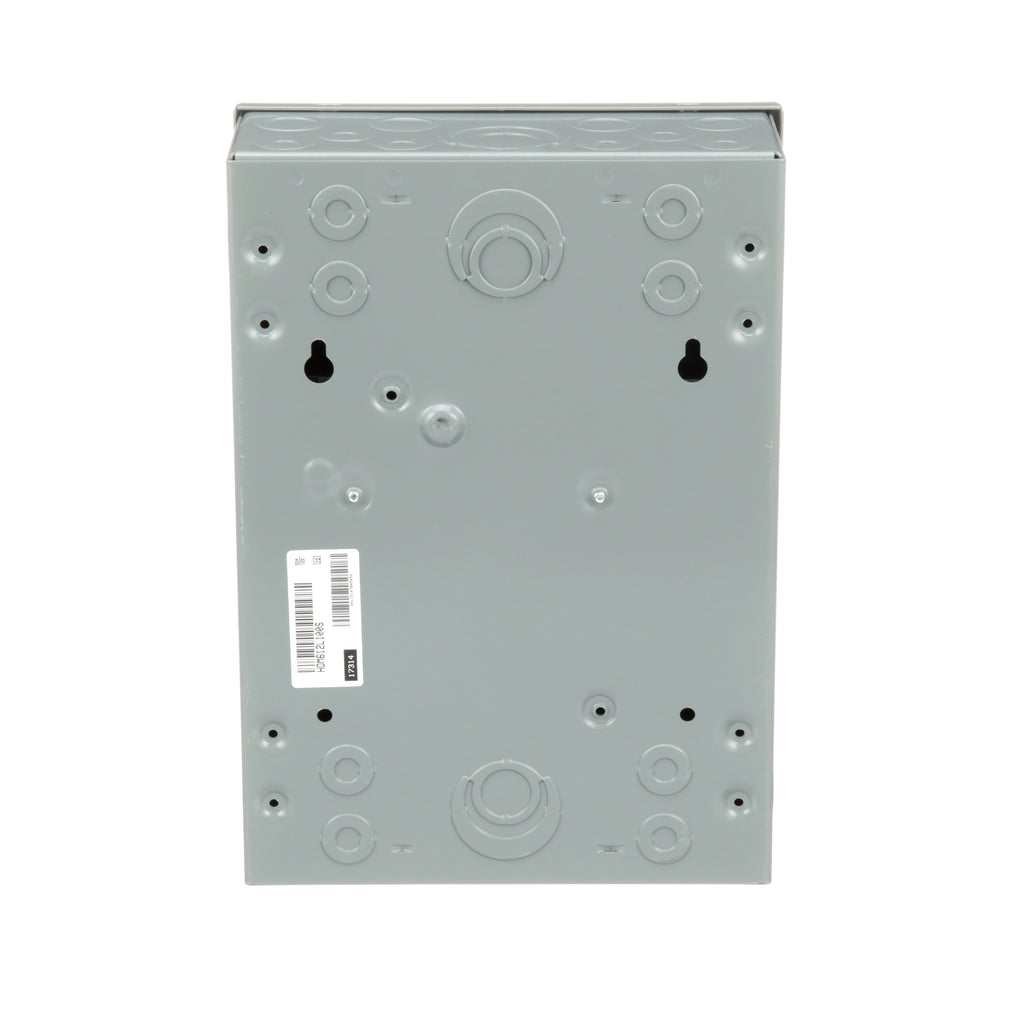

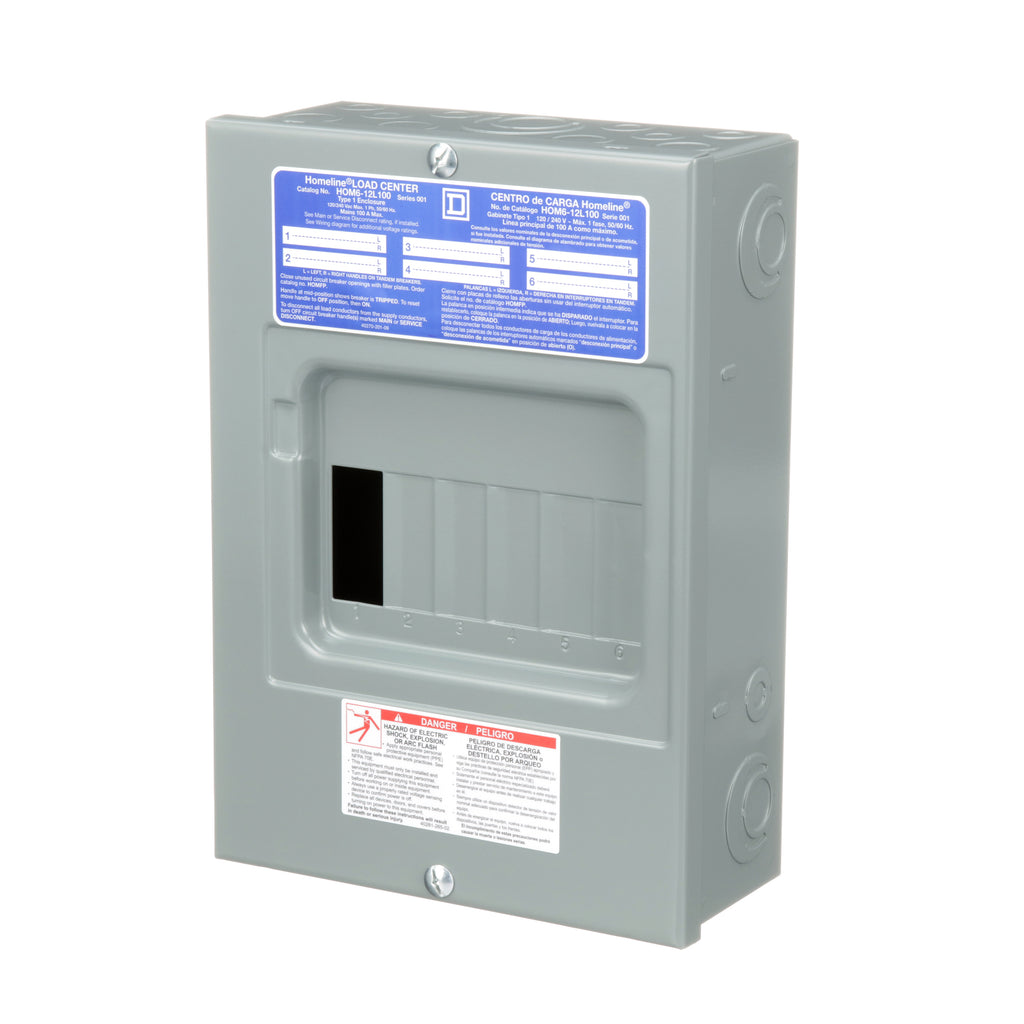

HOM612L100S is a Schneider Electric load center designed for residential and commercial power distribution with a 100 Amp rating and 120/240 Volt capacity.This 1-phase load center features 6 spaces and supports up to 12 circuits. It is surface mountable with a NEMA 1 enclosure and includes a main lug configuration. The unit is UL listed and compatible with Homeline circuit breakers, providing a 22,000 A interrupt rating for reliable protection.
- Amperage: 100 Amp
- Voltage: 120/240 VAC
- Phase: Single-phase
- Spaces: 6
- Circuits: 12
- Mounting Type: Surface mount
- Interrupt Rating: 22,000 A
- Series/Frame: Homeline
- Trip Unit: Main lug
- Enclosure Type: NEMA 1
- Certifications: UL Listed
Specifications
- Part Number: HOM612L100S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Voltage : 120/240 AC
- Amperage : 100
- Nema Rating : 1
- Compatible Frames : HOM,HOMT,HOMGFI,HOMAFI
Product Data
- UPC : 785901061199
- GTIN : 00785901061199
- Country of Origin : Mexico
- Dimensions : 12.6 in (319 mm) x 8.9 in (226 mm) x 3.8 in (97 mm) (Height x Width x Depth)
- Weight : 7.871
- Certification : RoHS Compliant, UL Listed
