Description
HOM612L100RB

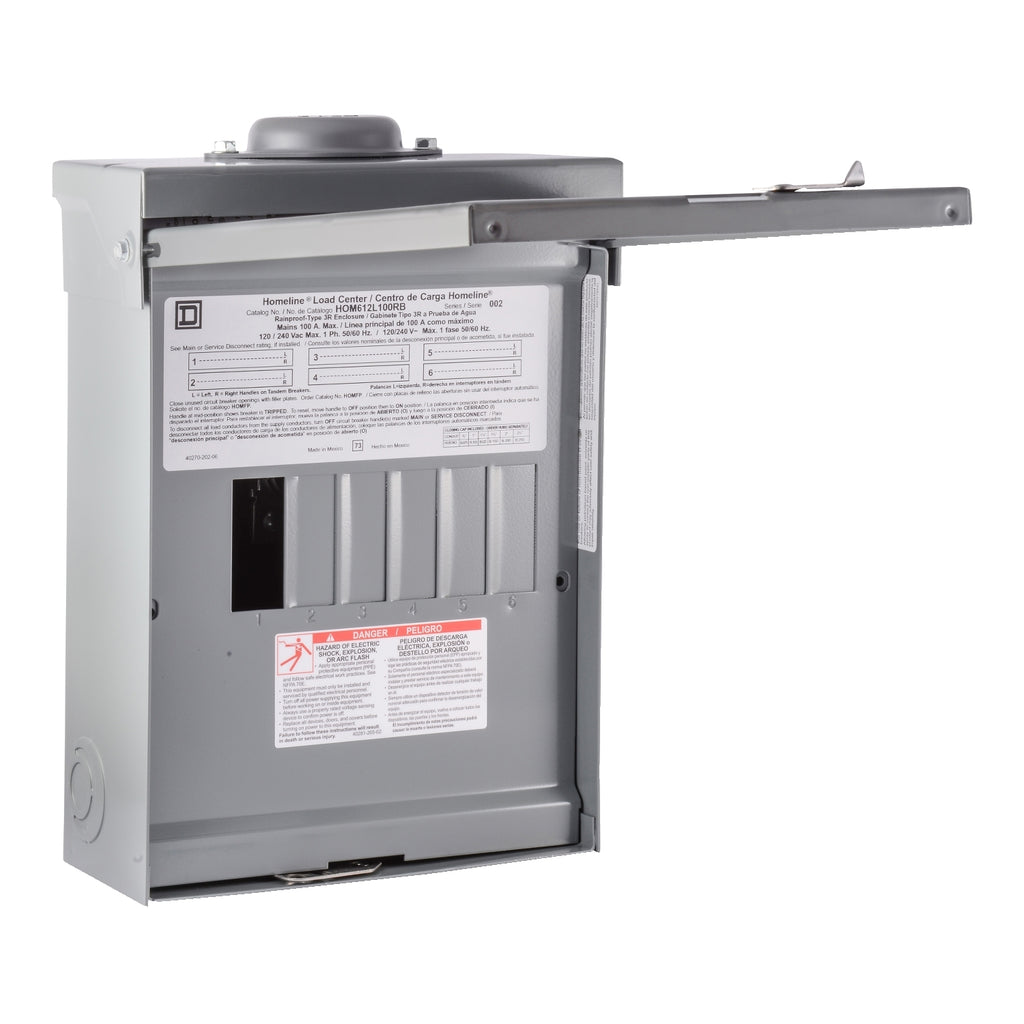

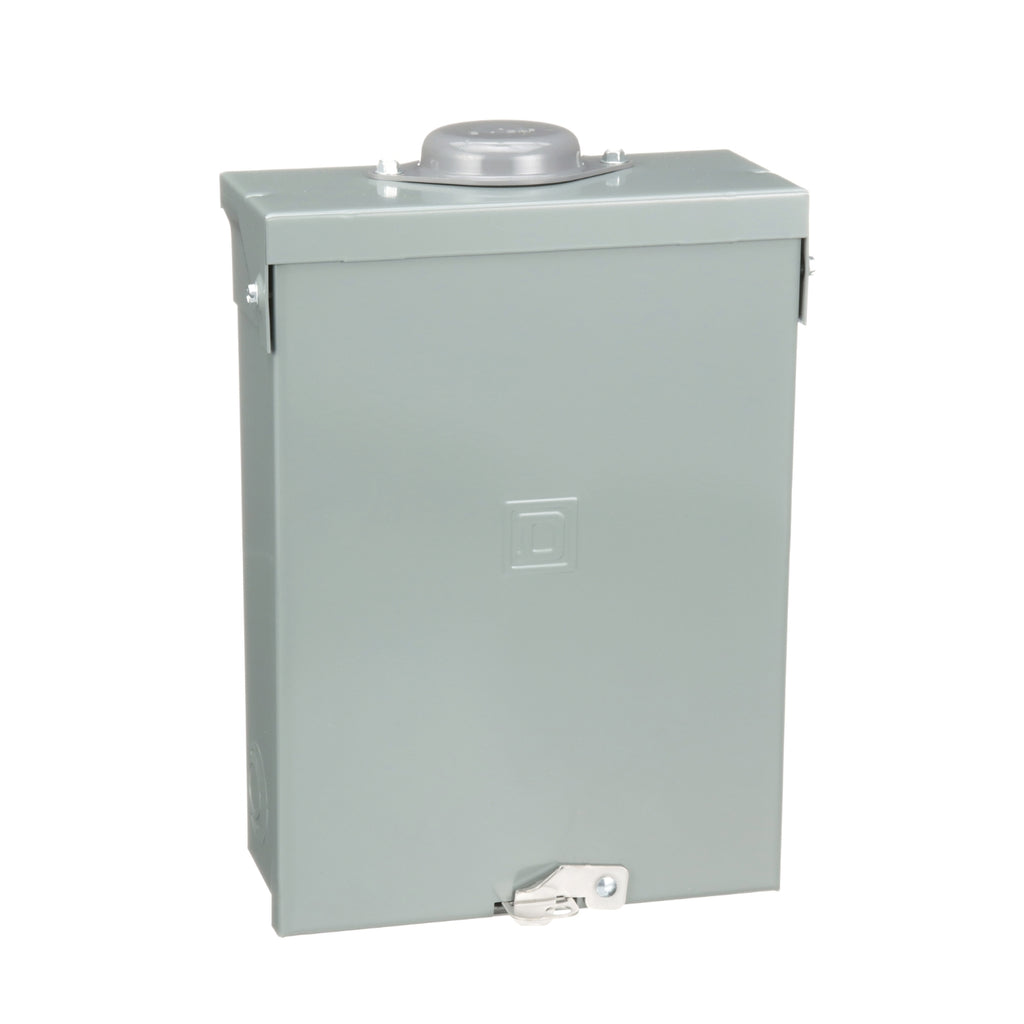

HOM612L100RB is a Square D Homeline 100A main lug load center designed for 120/240V AC single-phase applications, featuring 6 spaces and 12 circuits in a NEMA 3R outdoor-rated enclosure. This Homeline load center is built for reliable electrical distribution in residential, commercial, and industrial environments. It supports tandem breakers, has a 10 kA short-circuit current rating, and is constructed with a welded galvannealed steel enclosure and gray baked enamel finish for durability.
- Part Number: HOM612L100RB
- Manufacturer: Square D
- Series: Homeline
- Amperage: 100A
- Voltage: 120/240V AC
- Phases: 1
- Spaces: 6
- Circuits: 12
- Mounting Type: Surface
- Interrupt Rating: 10 kA
- Enclosure Rating: NEMA 3R
- Certifications: UL Listed
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: HOM612L100RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 240
- Amperage : 100
- Poles : 3
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Compatible Frames : HOM,HOMT,HOMGFI,HOMAFI
Product Data
- UPC : 785901061205
- GTIN : 00785901061205
- Country of Origin : Mexico
- Dimensions : 12.6 in (321 mm) x 8.9 in (226 mm) x 4.3 in (108 mm) (Height x Width x Depth)
- Weight : 9.689
- Certification : RoHS Compliant, UL Listed
