2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
HOM30L200C

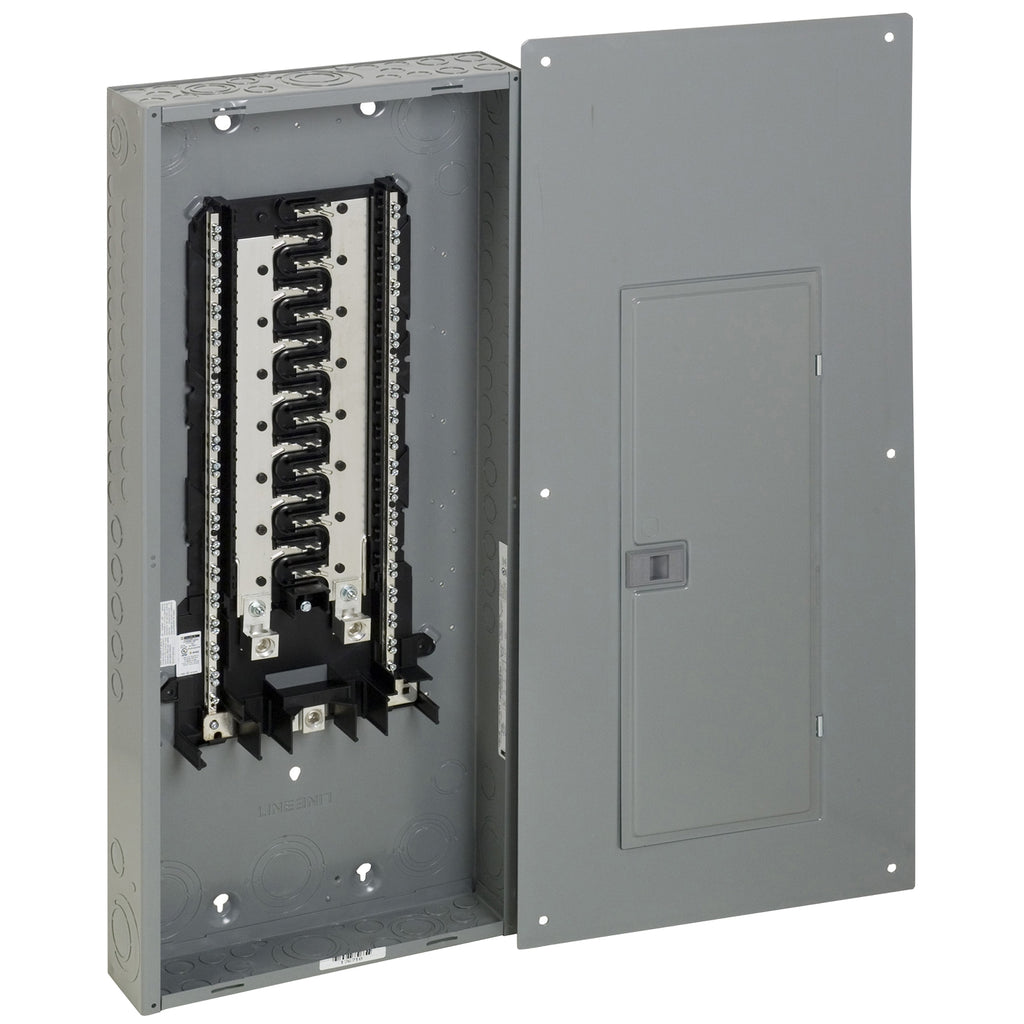

HOM30L200C is a Square D 200 Amp, 240 Volt, 1-Phase load center with 30 spaces and 30 circuits, designed for reliable circuit protection in residential and light commercial applications.This Homeline series load center features a convertible main/main lug type design with NEMA 1 enclosure rating. It supports QOM frame circuit breakers and provides fast installation with tin and copper plated aluminum bus bars for superior conductivity and corrosion resistance. The unit is rated for 10 kA interrupt capacity and is suitable for surface mounting.
- Amperage: 200 A
- Voltage: 120/240 V AC
- Phases: 1 Phase, 3 Wire
- Number of Spaces: 30
- Number of Circuits: 30
- Mounting Type: Surface Mount
- Interrupt Rating: 10 kA
- Series/Frame: Homeline, QOM Frame Compatible
- Enclosure Rating: NEMA 1
- Main Breaker Type: Convertible Main/Main Lug
- Bus Bars: Tin and Copper Plated Aluminum
- Certifications: UL Listed
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: HOM30L200C
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 240
- Amperage : 200
- Nema Rating : 1
- Compatible Frames : QOM
Product Data
- GTIN : 785901061274
- Country of Origin : United States
- Dimensions : 33.8 in (858 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 29.93
