Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
HOM30L150C

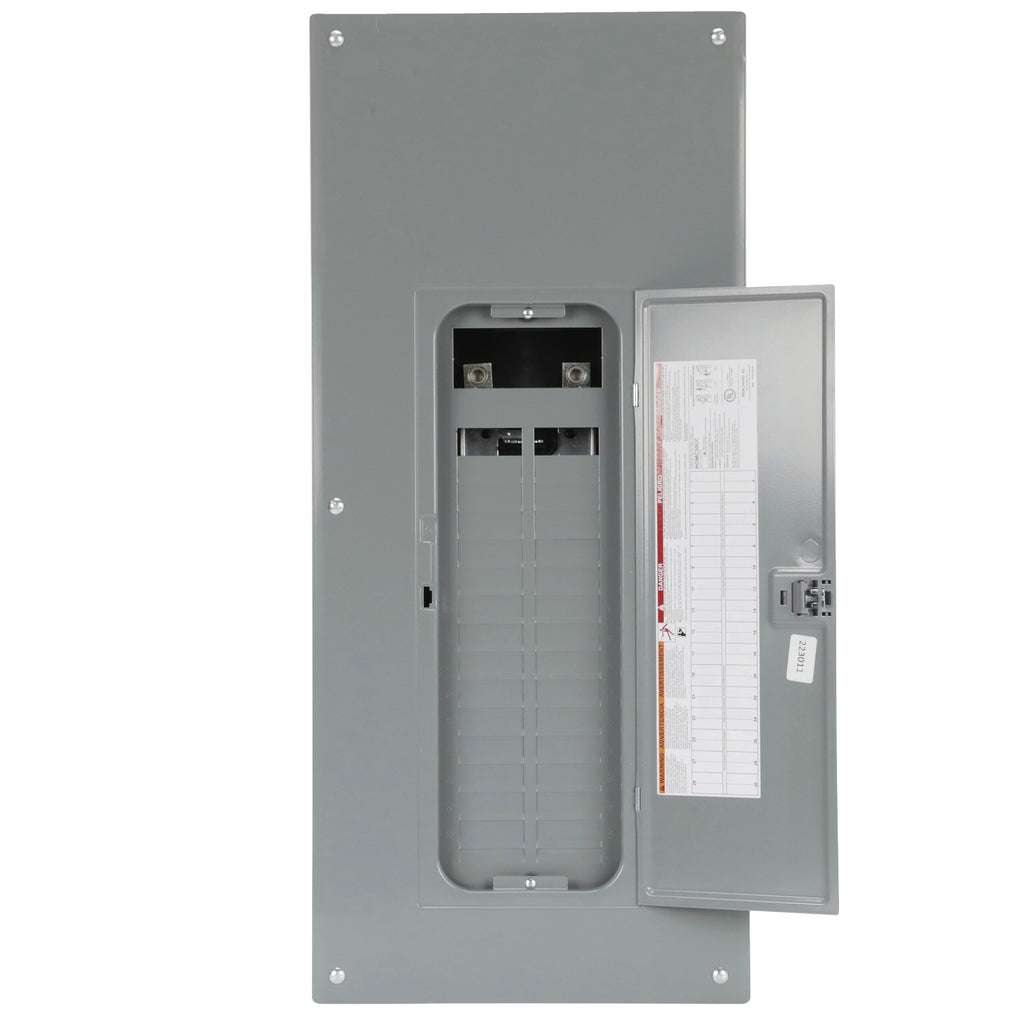

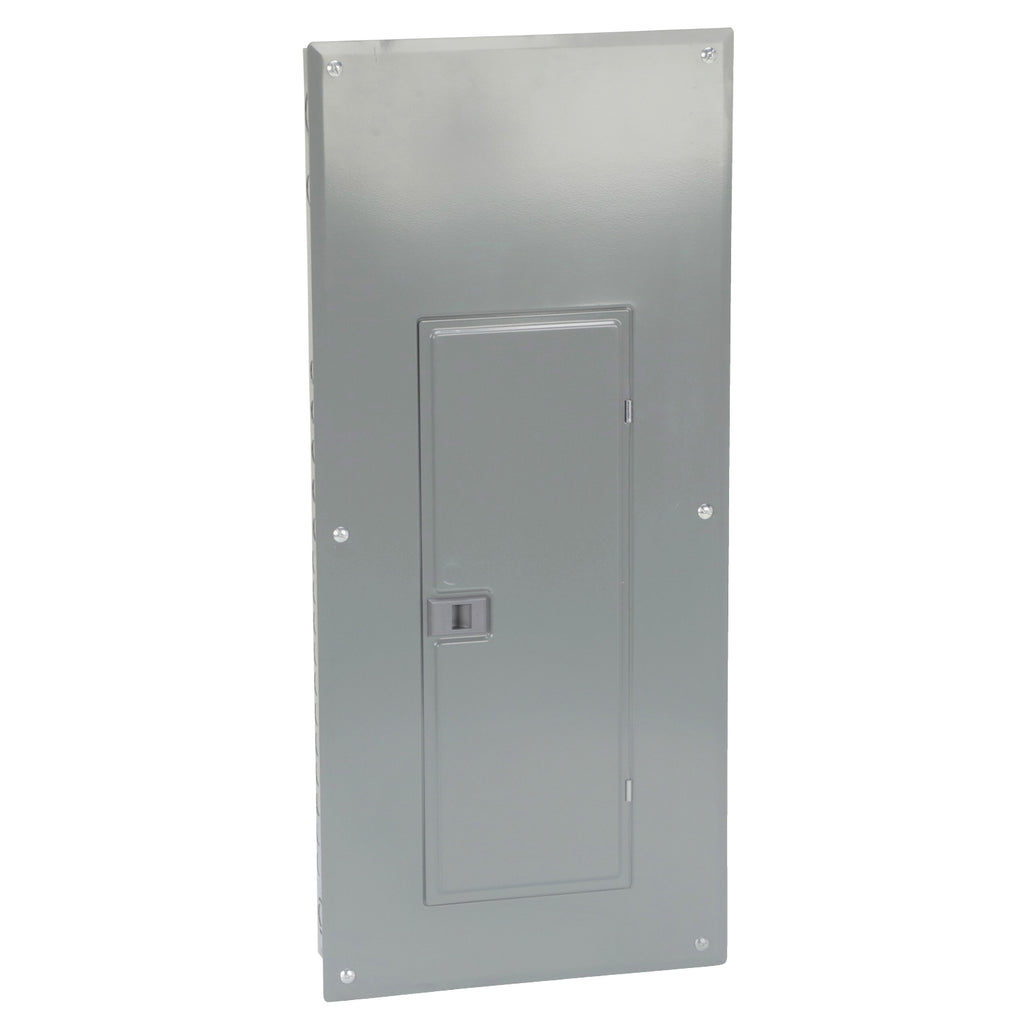

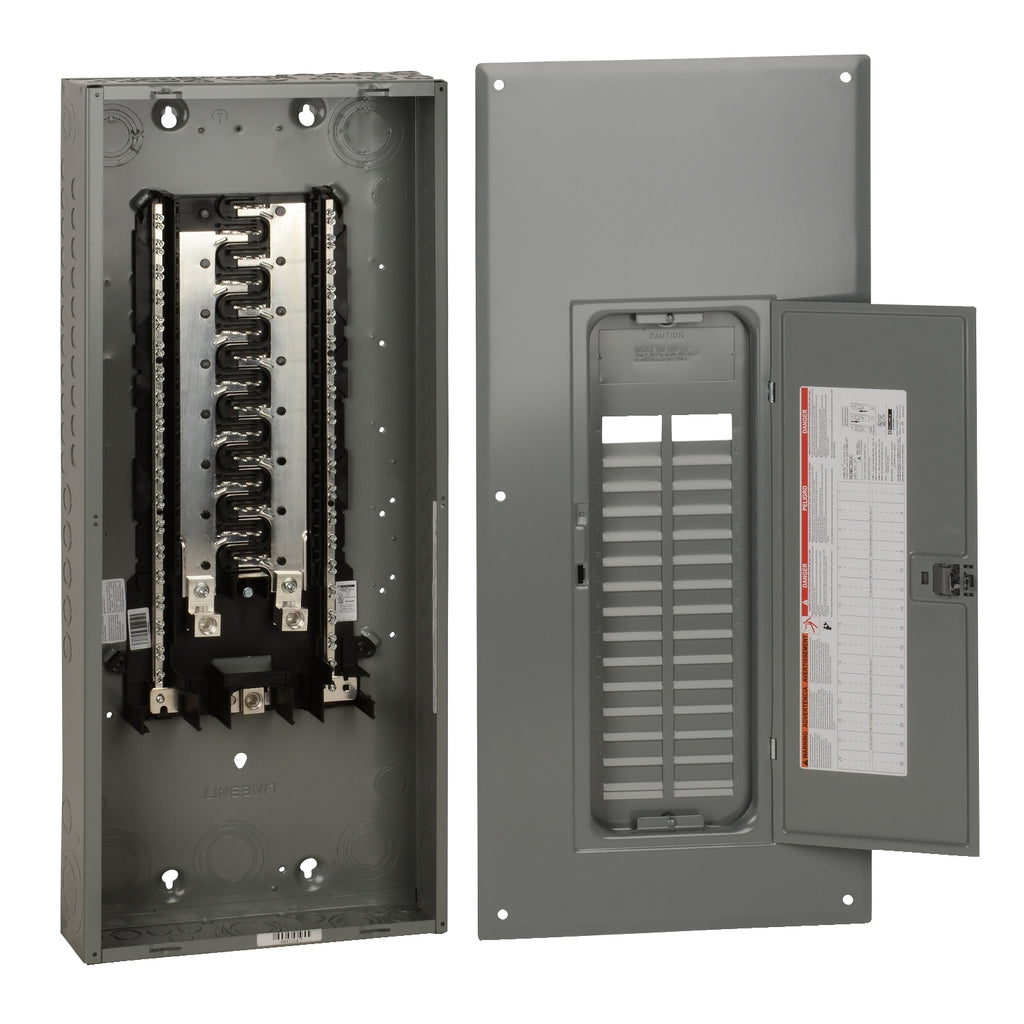

HOM30L150C is a Square D 150 amp, 240 volt, single-phase load center with 30 spaces designed for main lug applications.
This load center features a QOM2 main frame size, supports wire sizes from 4 AWG to 250 KCMIL aluminum or copper, and has a 10 kiloampere interrupting rating. It is suitable for residential or light commercial power distribution with a NEMA 1 indoor mounting type. The panel accepts QO plug-in and QOB bolt-on circuit breakers, providing flexible circuit protection options.
- Key Specifications
- Amperage: 150A
- Voltage: 240V
- Phase: Single-phase
- Spaces: 30
- Main Breaker Type: QOM2 Main Frame
- Interrupt Rating: 10 kA
- Wire Size Range: 4 AWG to 250 KCMIL Aluminum/Copper
- Mounting Type: Indoor NEMA 1
- Compatible Breakers: QO and QOB series
- Manufacturer: Square D
- Part Number: HOM30L150C
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 240
- Amperage : 150
- Nema Rating : 1
- Compatible Frames : QOM
- UPC : 785901021995
- GTIN : 00785901824145
- Country of Origin : United States
- Dimensions : 33.8 in (858 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 29.91
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
