Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
HOM3060L225PC

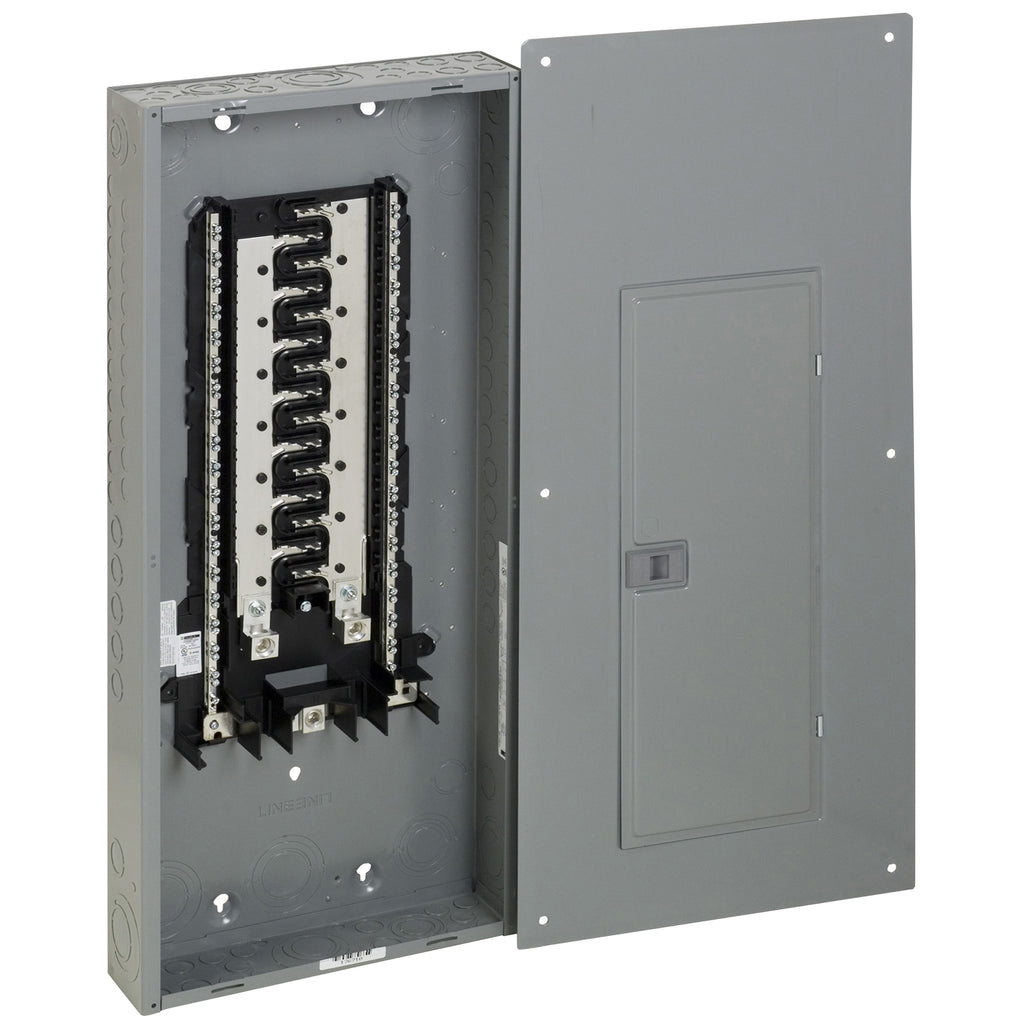

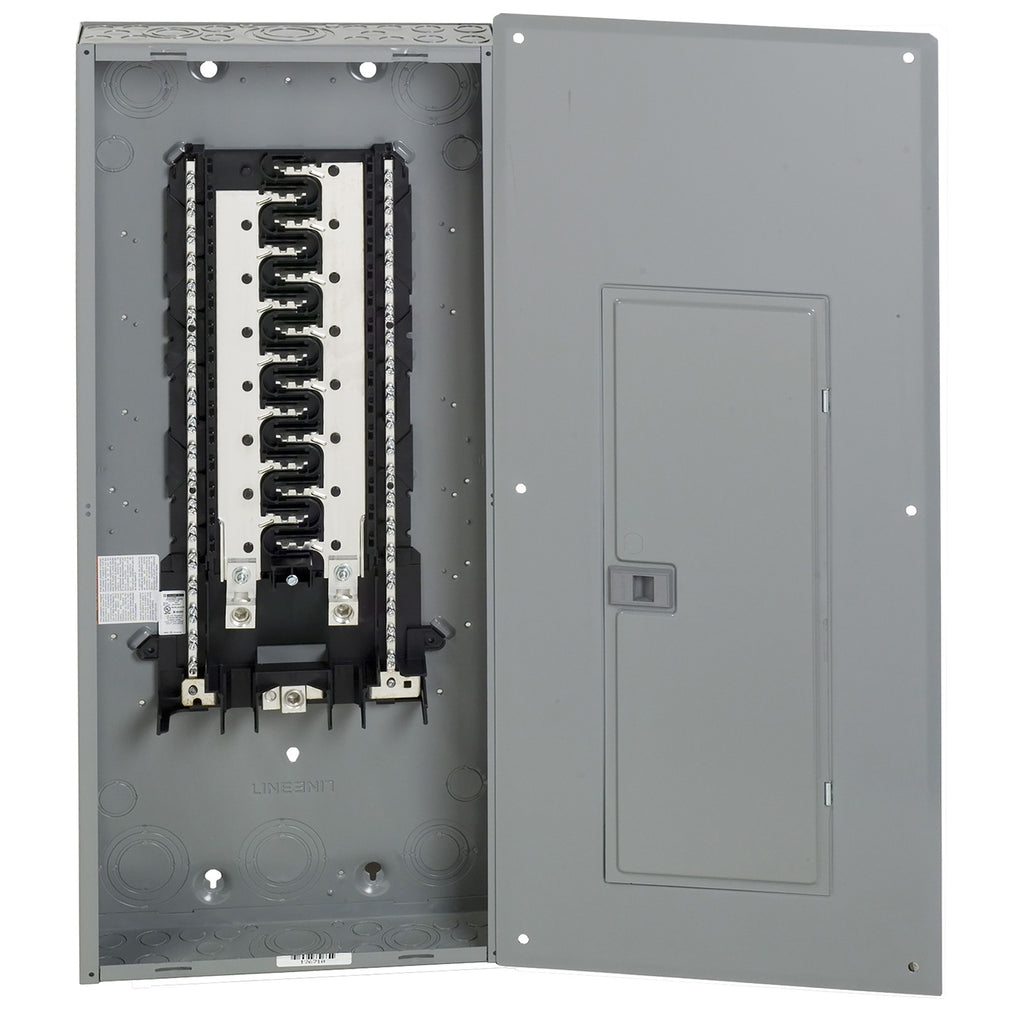

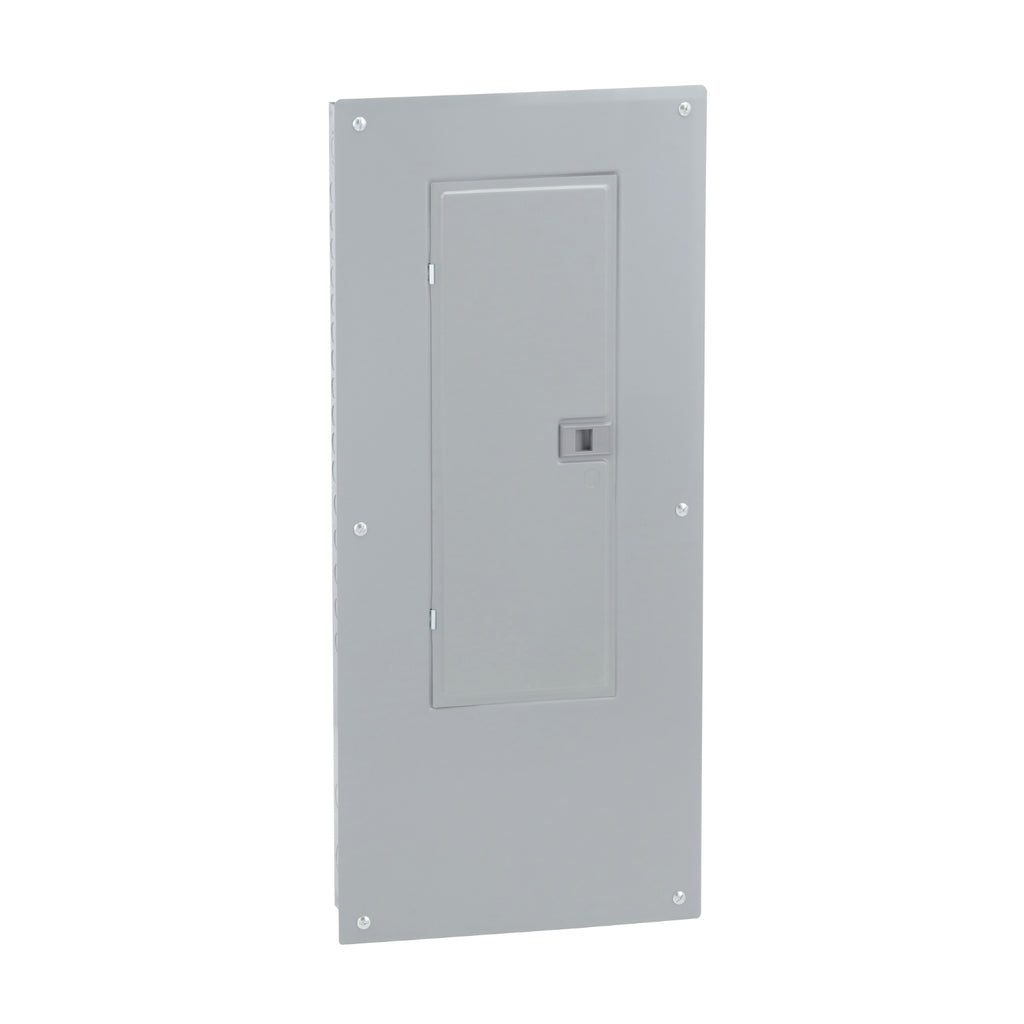

HOM3060L225PC is a Square D Homeline load center designed for indoor use with a 225 amp main lug and plug-on neutral configuration.This load center supports 120/240 VAC single-phase power, featuring 30 spaces and 60 circuits capacity. It is NEMA 1 rated for indoor installation and includes convertible main lugs. The unit supports wire sizes from AWG 4 to 250 kcmil copper and has a 10 kA interrupt rating.
- Amperage: 225 A
- Voltage: 120/240 VAC
- Phase: 1-Phase
- Spaces: 30
- Circuits: 60
- Mounting Type: Panel Mount
- Interrupt Rating: 10 kA
- Wire Size Range: AWG 4 to 250 kcmil copper
- Type: Main Lug Load Center
- Neutral: Plug-On Neutral
- Enclosure Rating: NEMA 1 (Indoor)
- Dimensions: 14.25 in W x 3.75 in D x 33.78 in H
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: HOM3060L225PC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 120/240 AC
Product Data
- UPC : 785901977209
- GTIN : 00785901977209
- Country of Origin : Mexico
- Dimensions : 33.8 in (858 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 30.3
- Certification : UL listed file E-6294
