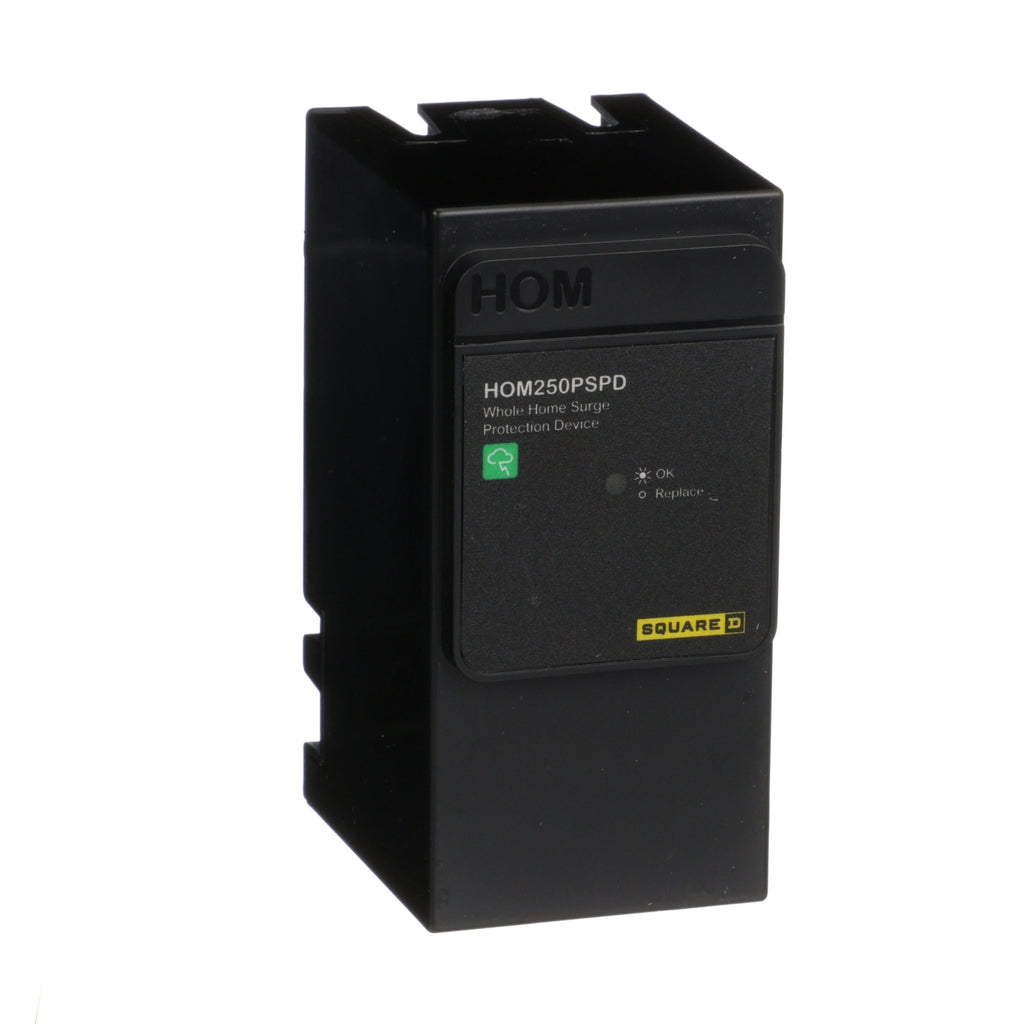

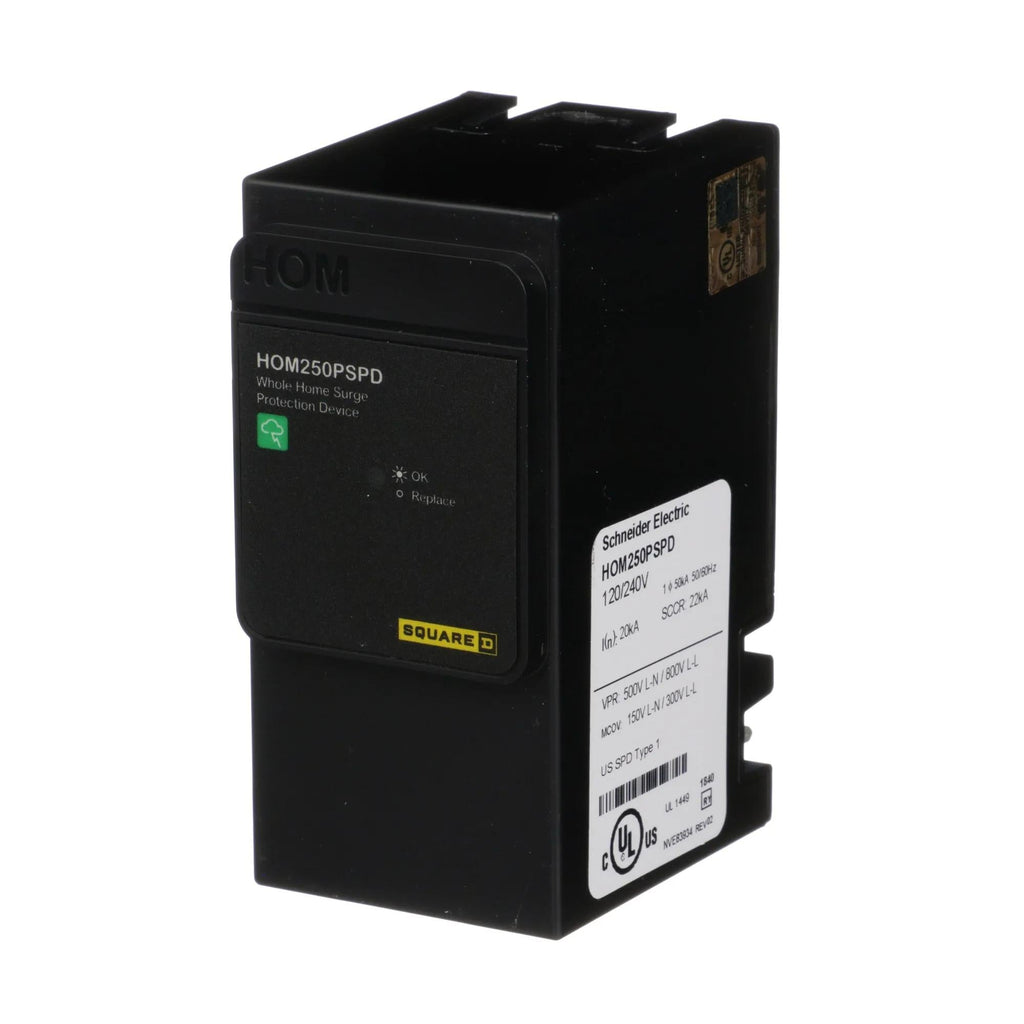

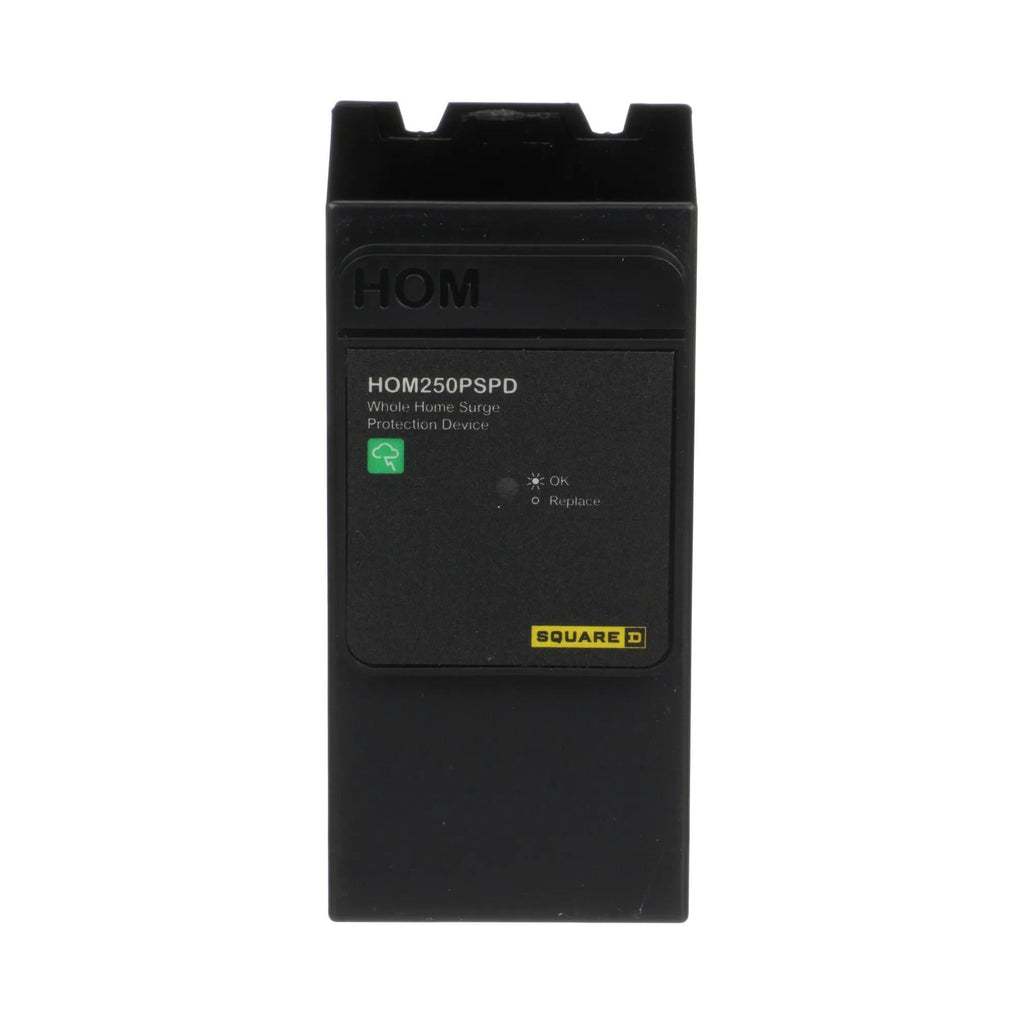

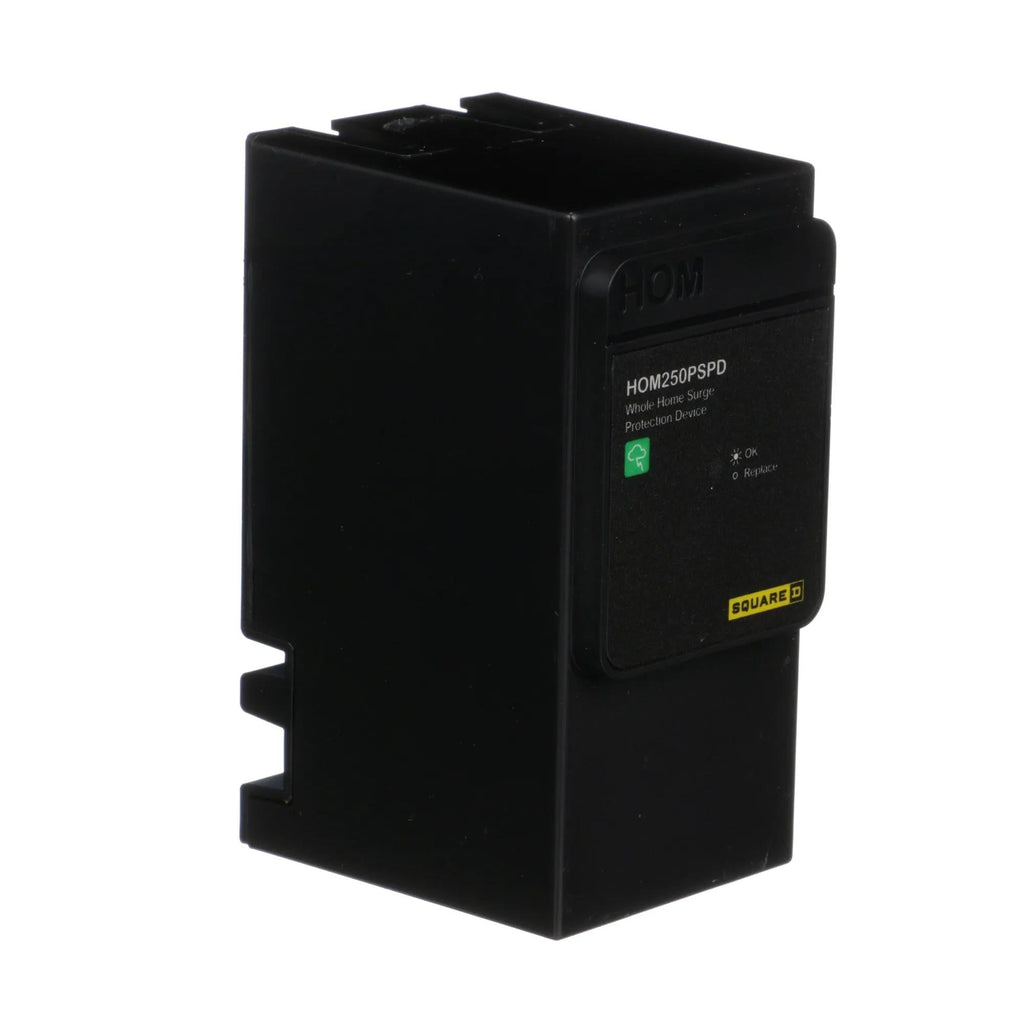

HOM250PSPD - Square D 50kA 120/240VAC 1-Pole Surge Protection Device Panel Mount HOM Series

HOM250PSPD

HOM250PSPD is a Square D surge protection device designed for whole home protection with a 50,000 Amp surge current rating and 120/240VAC voltage rating.This 1-pole surge protector from the HOM series features a panel mounting type with a plug-on neutral connection for easy installation. It has an interrupting rating of 10kAIC at 240V, thermal magnetic protection, and includes long time and instantaneous trip functions. Certified to UL, CSA, RoHS, and ANSI standards, it is suitable for use with Square D Homeline load centers and supports 1-phase, 3-wire systems.

Key Specifications
• Manufacturer: Square D
• Part Number: HOM250PSPD
• Surge Current Rating: 50,000 Amps
• Voltage Rating: 120/240VAC
• Poles: 1
• Mounting Type: Panel Mount
• Interrupting Rating: 10kAIC @ 240V
• Series/Frame: HOM
• Connection Type: Plug-On Neutral
• Protection Type: Thermal Magnetic
• Trip Functions: Long Time and Instantaneous
• Certifications: UL Listed, CSA, RoHS, ANSI
• Phase: Single Phase, 3 Wire

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM250PSPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Section : Surge Protection
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240VAC
• Amperage : 50000
• Phase : 1
• Poles : 1
• AIC rating : 10kAIC@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Compatible Frames : HOM

Product Data

• UPC : 785901520290
• GTIN : 00785901520290
• Country of Origin : Mexico
• Dimensions : 4.0 in (101 mm) x 2.0 in (50 mm) x 2.6 in (66 mm) (Height x Width x Depth)
• Weight : 0.51 lb
• Standards : UL 1449:ed. 4, CSA C22.2 No 269.1
