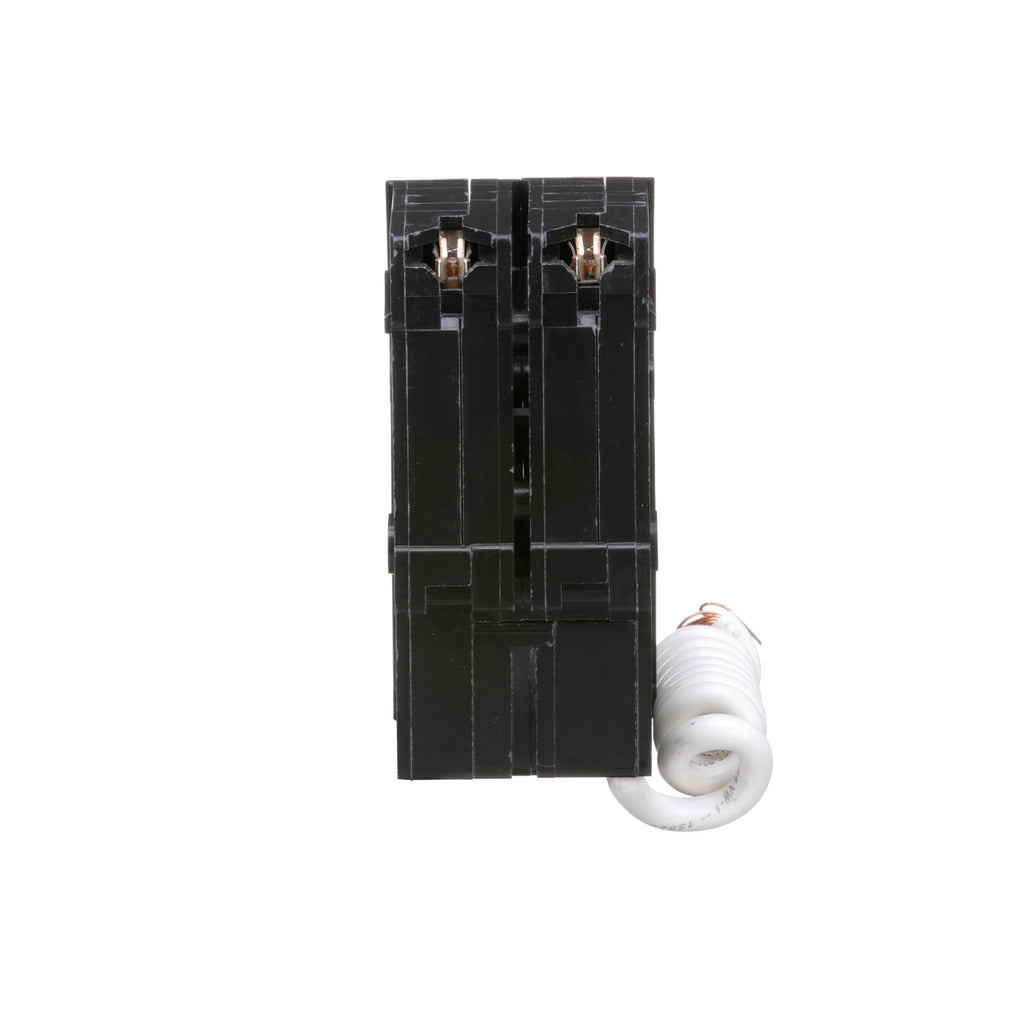

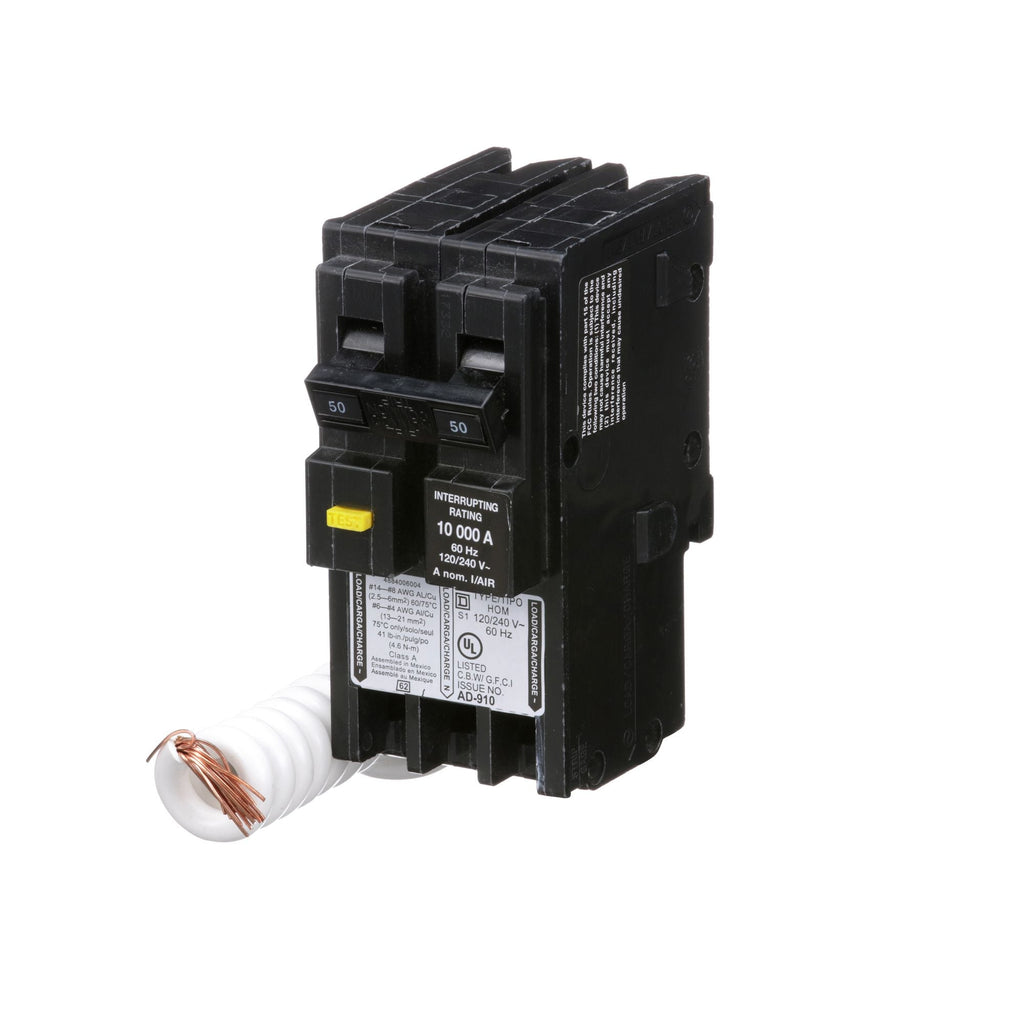

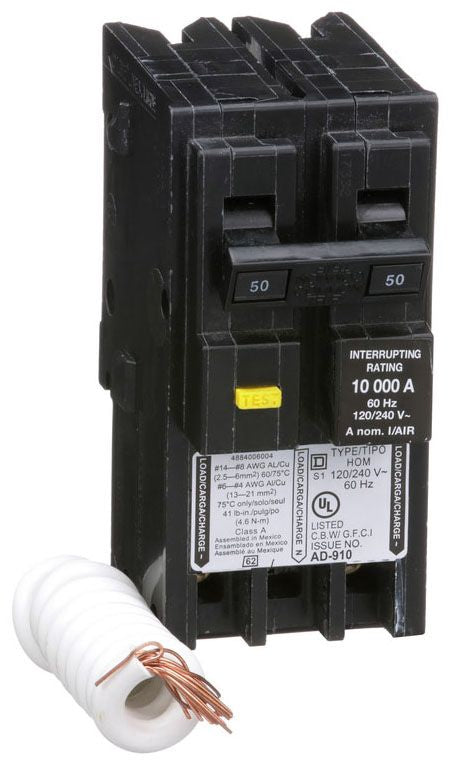

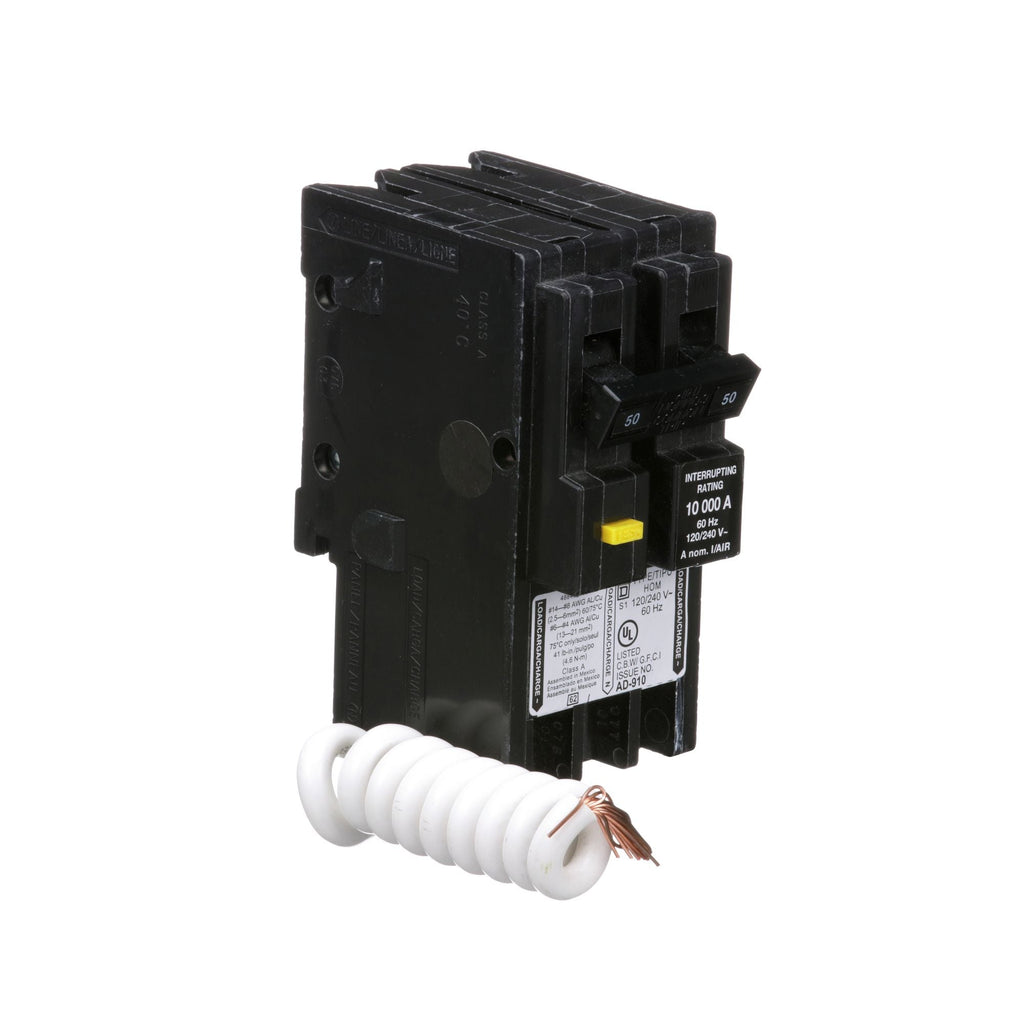

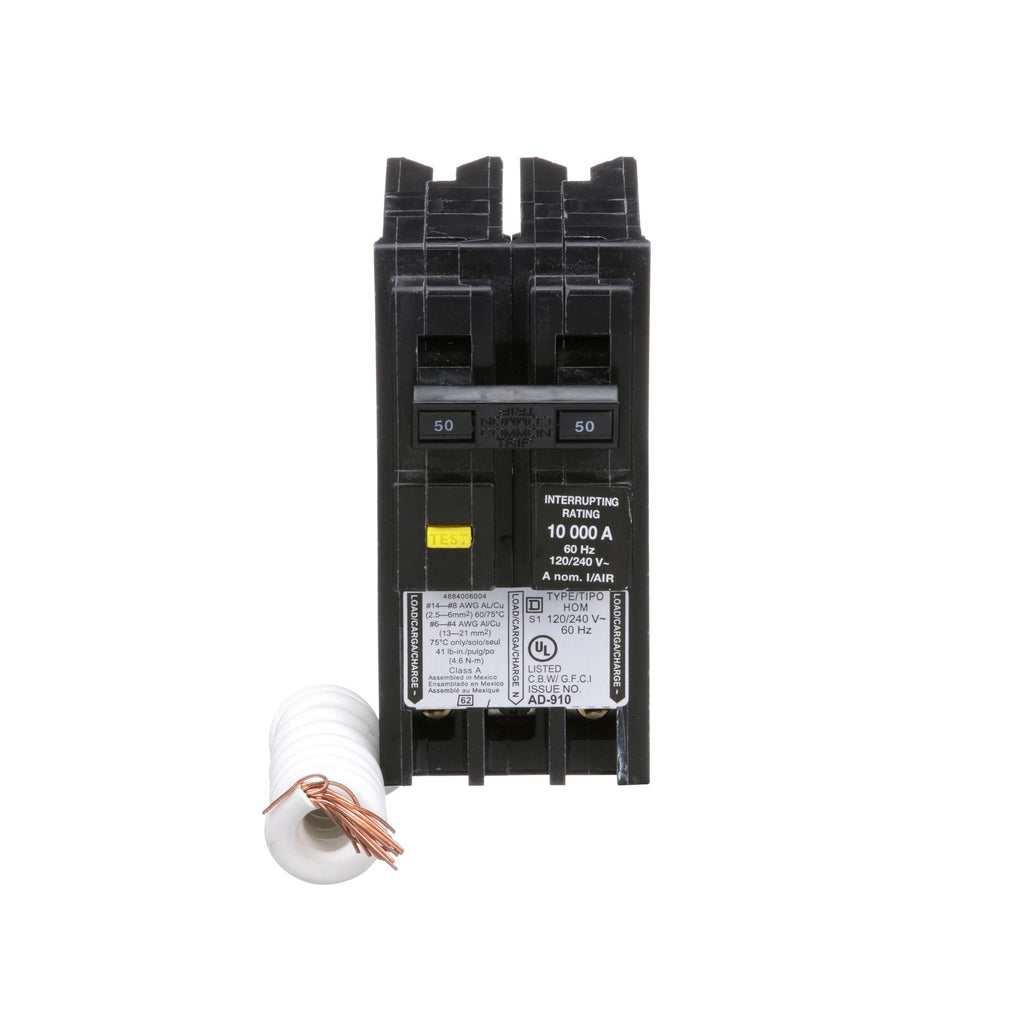

HOM250GFI - Square D 50 Amp 2 Pole 120/240VAC Homeline GFCI Circuit Breaker Plug-In 10kAIC

HOM250GFI

HOM250GFI is a Square D Homeline 2 pole 50 amp ground fault circuit breaker designed for 120/240VAC systems.This plug-in type circuit breaker provides reliable overload, short circuit, and ground fault protection with a 10kA interrupting rating at 240V. It features thermal magnetic trip units with long-time and instantaneous trip functions, suitable for residential and light commercial applications. The breaker is UL listed and HACR rated, compatible with Homeline load centers, and accepts copper or aluminum wire from 14 to 6 AWG.

Key Specifications
• Amperage: 50A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL Listed, HACR Rated
• Ground Fault Protection: Class A GFCI (6mA trip)
• Terminal Connection: Screw Clamp
• Wire Gauge Range: 14 to 6 AWG Copper or Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM250GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901783572
• GTIN : 00785901783572
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 1.22 lb
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 12 to AWG 4, Aluminum, 1x AWG 14 to AWG 6, Copper
