Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description

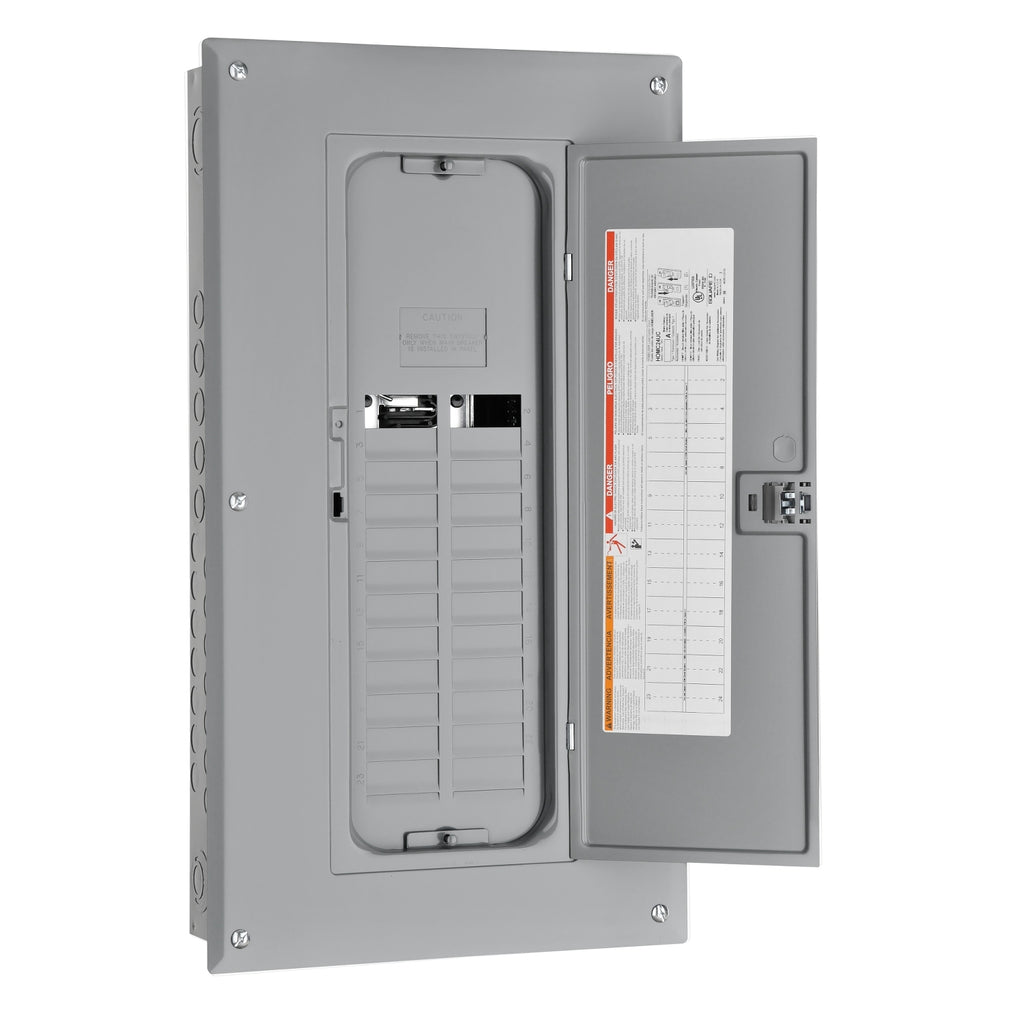

HOM24L125TC
HOM24L125TC is a Square D Homeline load center designed for residential and commercial power distribution with 125 amps and 24 spaces for 24 circuits.
This 1-phase, 120/240V load center features convertible main lugs, a NEMA 1 indoor enclosure, and a 10,000 A interrupt rating for reliable circuit protection. It includes tin and copper plated aluminum bus bars and a ground bar for safe grounding. The unit supports plug-on neutral breakers and is UL listed for safety and performance.
- Key Specifications
- Amperage: 125 Amp
- Voltage: 120/240 V AC
- Poles: 1 Phase, 3 Wire
- Spaces: 24
- Circuits: 24
- Interrupt Rating: 10 kA
- Mounting Type: Indoor, NEMA 1
- Bus Bars: Tin and copper plated aluminum
- Trip Unit: Main lug convertible
- Certifications: UL Listed
- Part Number: HOM24L125TC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 240
- Amperage : 125
- Nema Rating : 1
- Compatible Frames : QOM
- UPC : 047569073216
- Dimensions : 26.02 in (661 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 24.491
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
