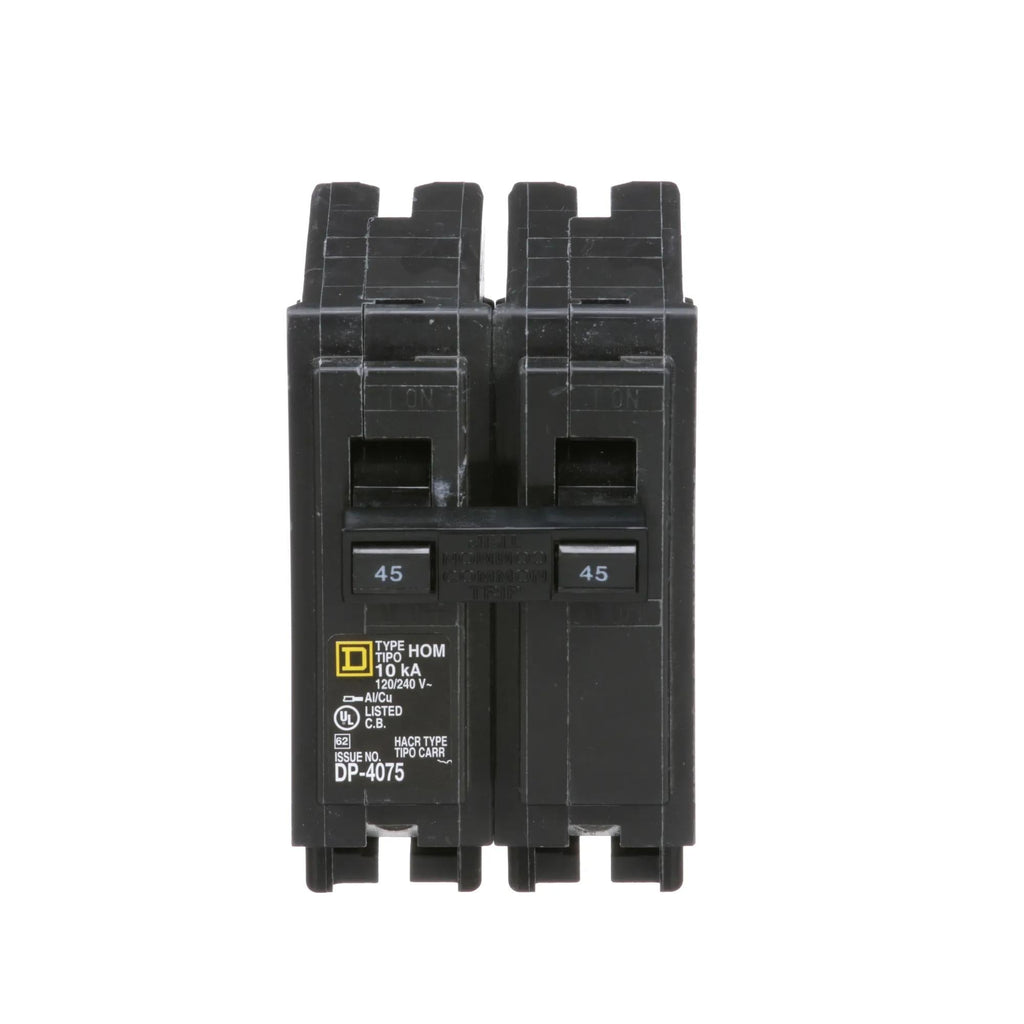

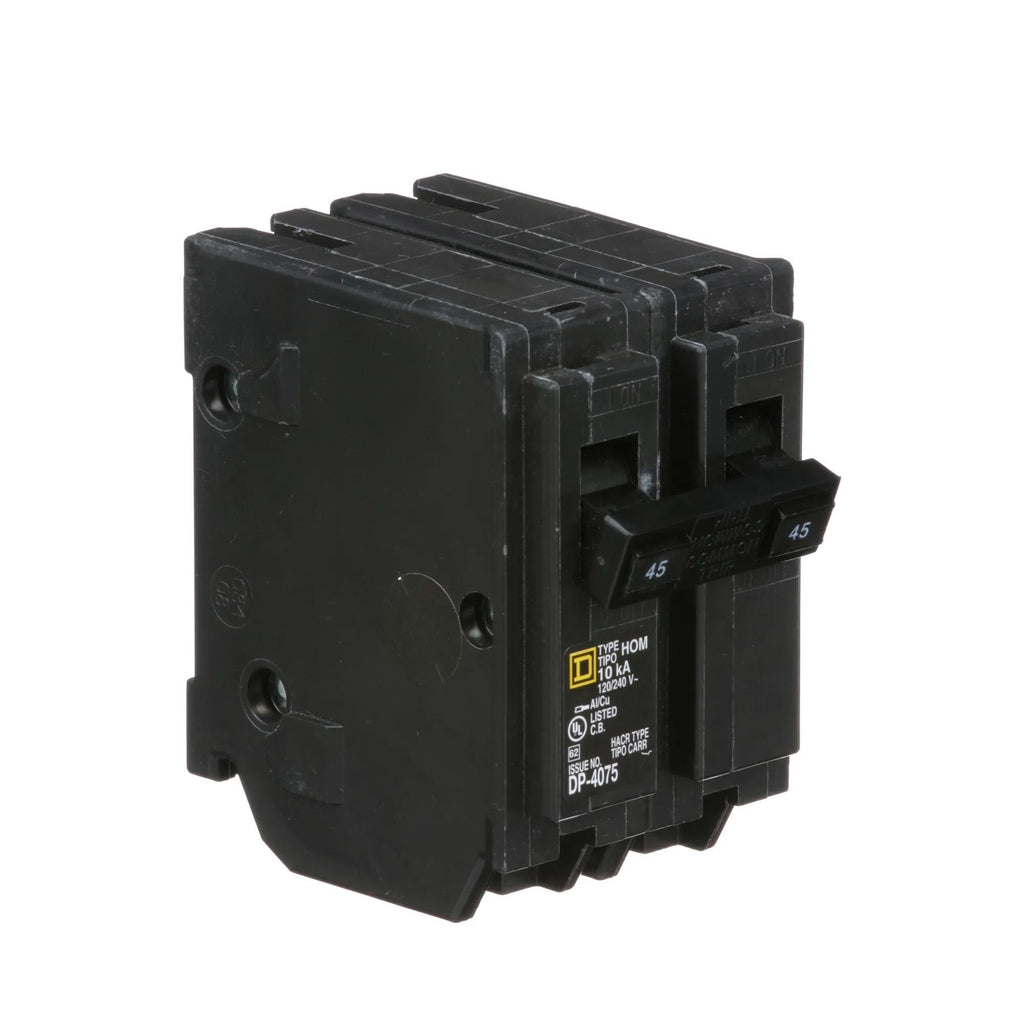

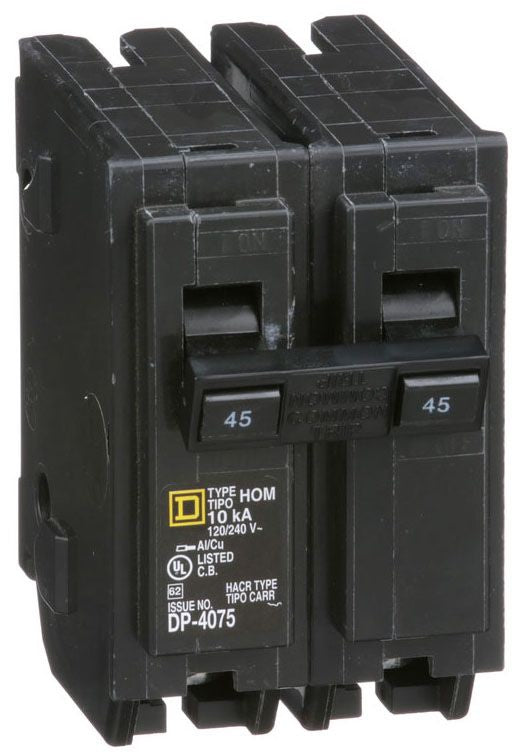

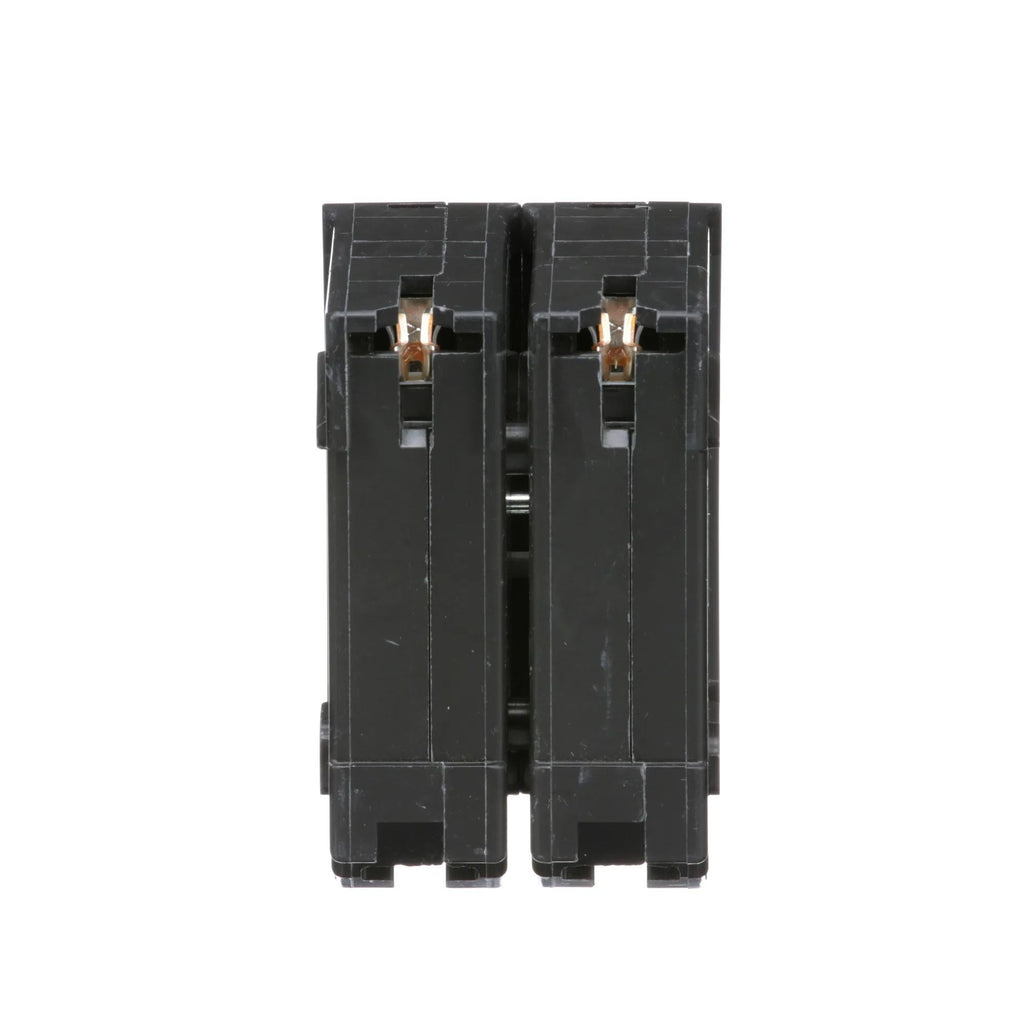

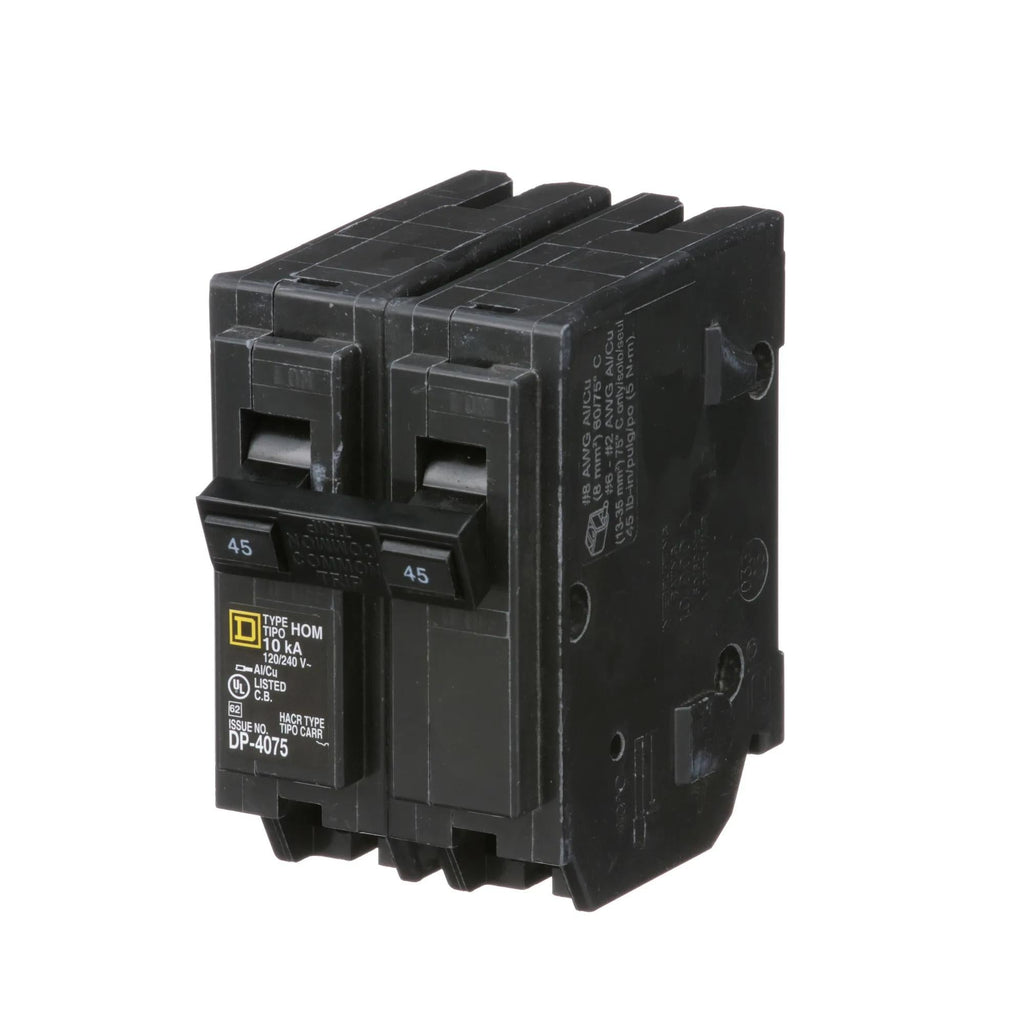

HOM245 - Square D Homeline 45 Amp 2 Pole Mini Plug-On Circuit Breaker, 120/240VAC, 10kA Interrupt, UL Listed

HOM245

HOM245 is a Square D Homeline 2-pole, 45 Amp, 120/240VAC, plug-on miniature circuit breaker designed for residential and commercial electrical protection.

This circuit breaker features a common trip mechanism, plug-in mounting for easy installation in Homeline load centers, and is rated for 10 kA interrupting capacity. It is UL listed, CSA certified, and HACR rated for reliable performance in a wide range of applications. Suitable for use with 8 to 2 AWG copper or aluminum wire.

Key Specifications
• Amperage: 45A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-on
• Interrupt Rating: 10 kA
• Series/Frame: Homeline, Mini
• Trip Unit: Common trip, thermal-magnetic
• Certifications: UL Listed, CSA Certified, HACR
• Wire Size: 8 to 2 AWG (Copper/Aluminum)
• Dimensions: 3.13" H x 2" W x 2.98" D
• Weight: 0.7 lbs
• Operating Temperature: Up to 104°F (40°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM245
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065500
• GTIN : 00785901065500
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.7 lb
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 8 to AWG 2, Aluminum/Copper
