Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HOM235GFI

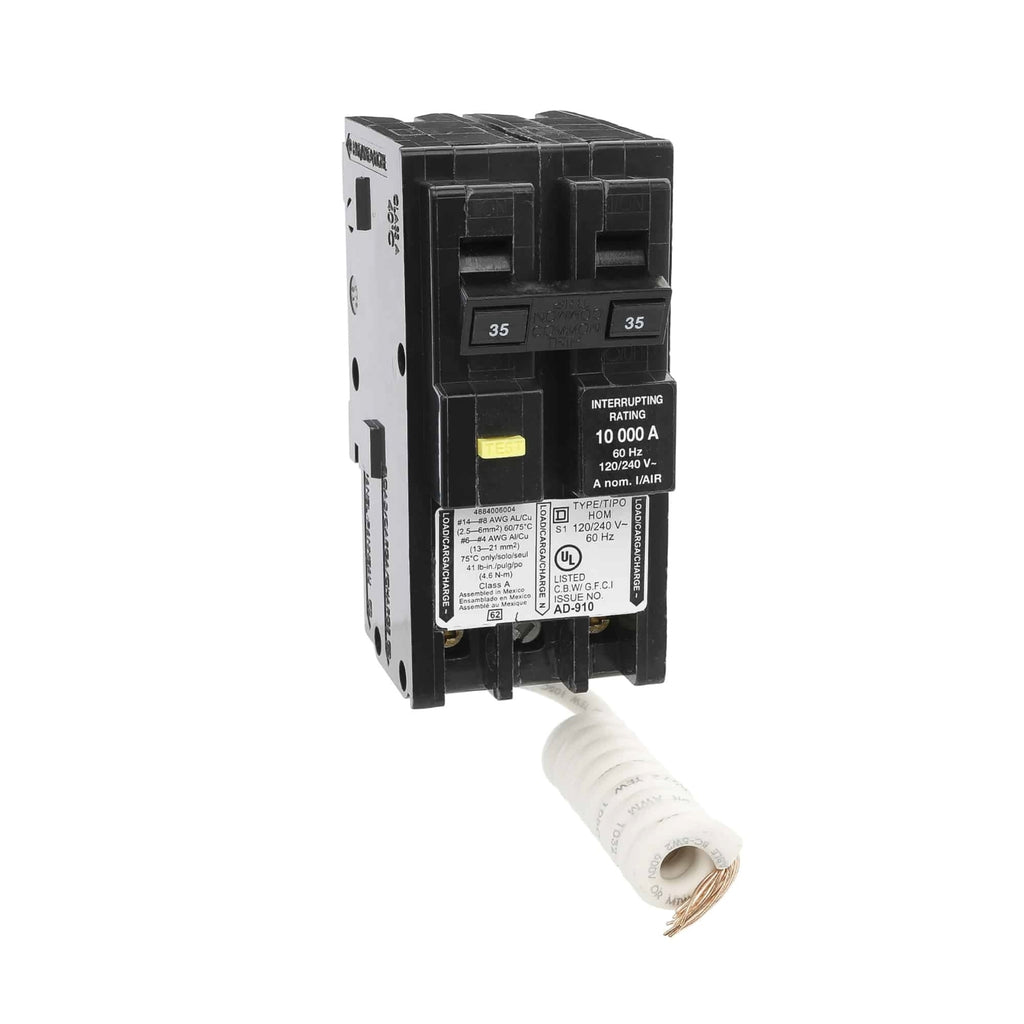

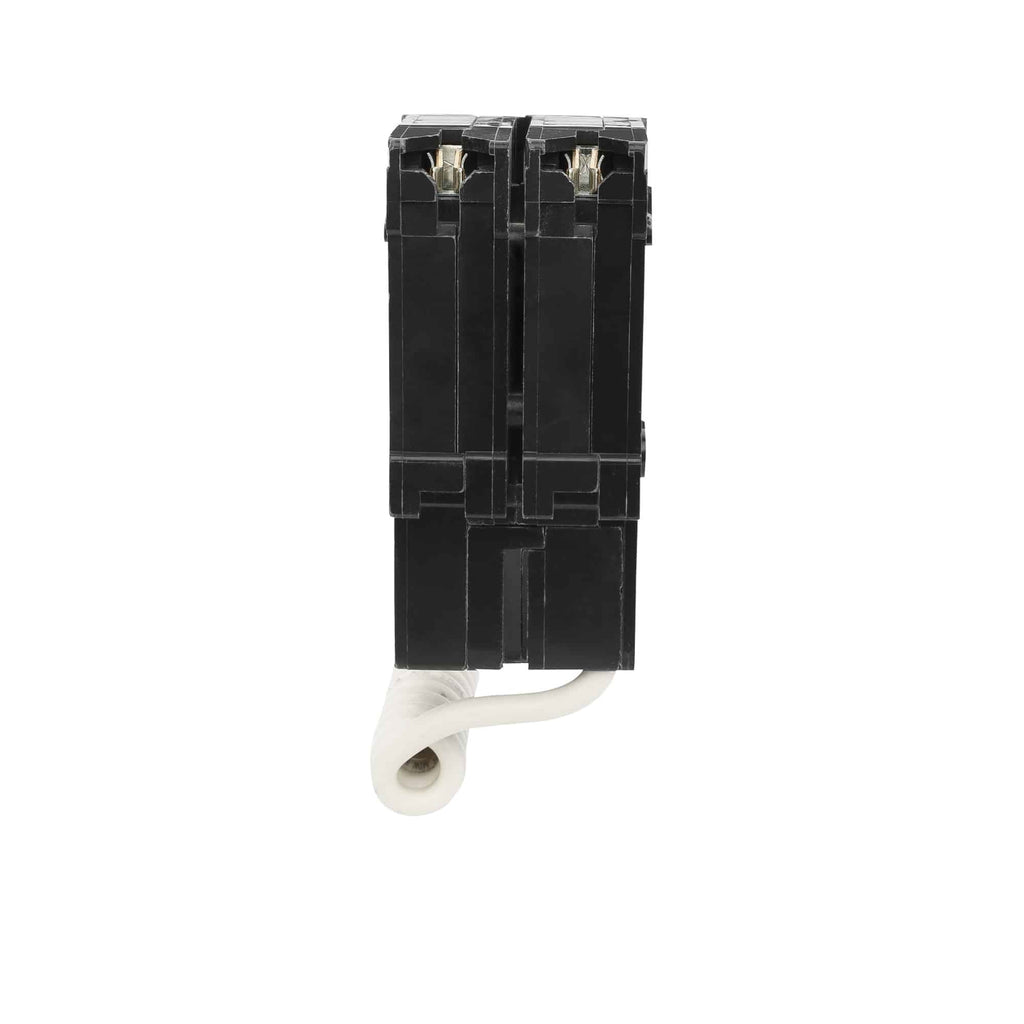

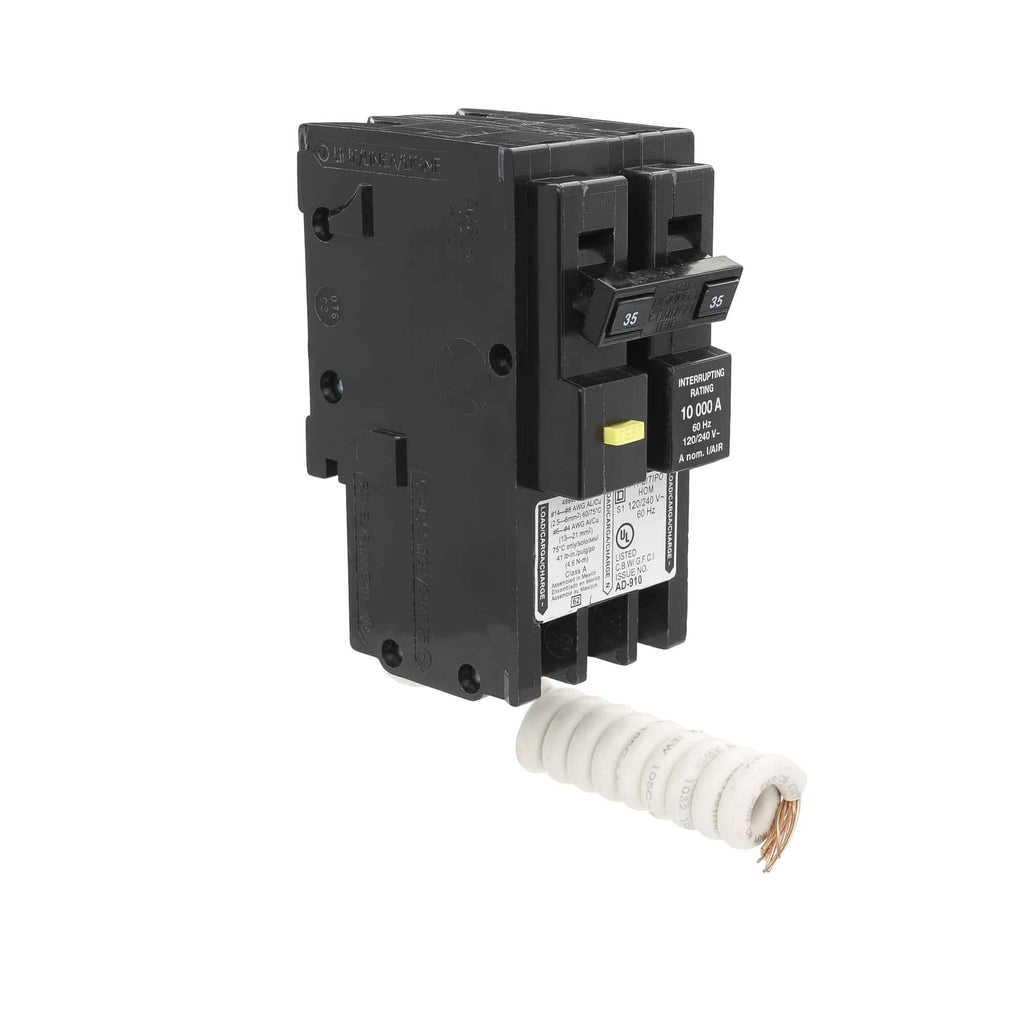

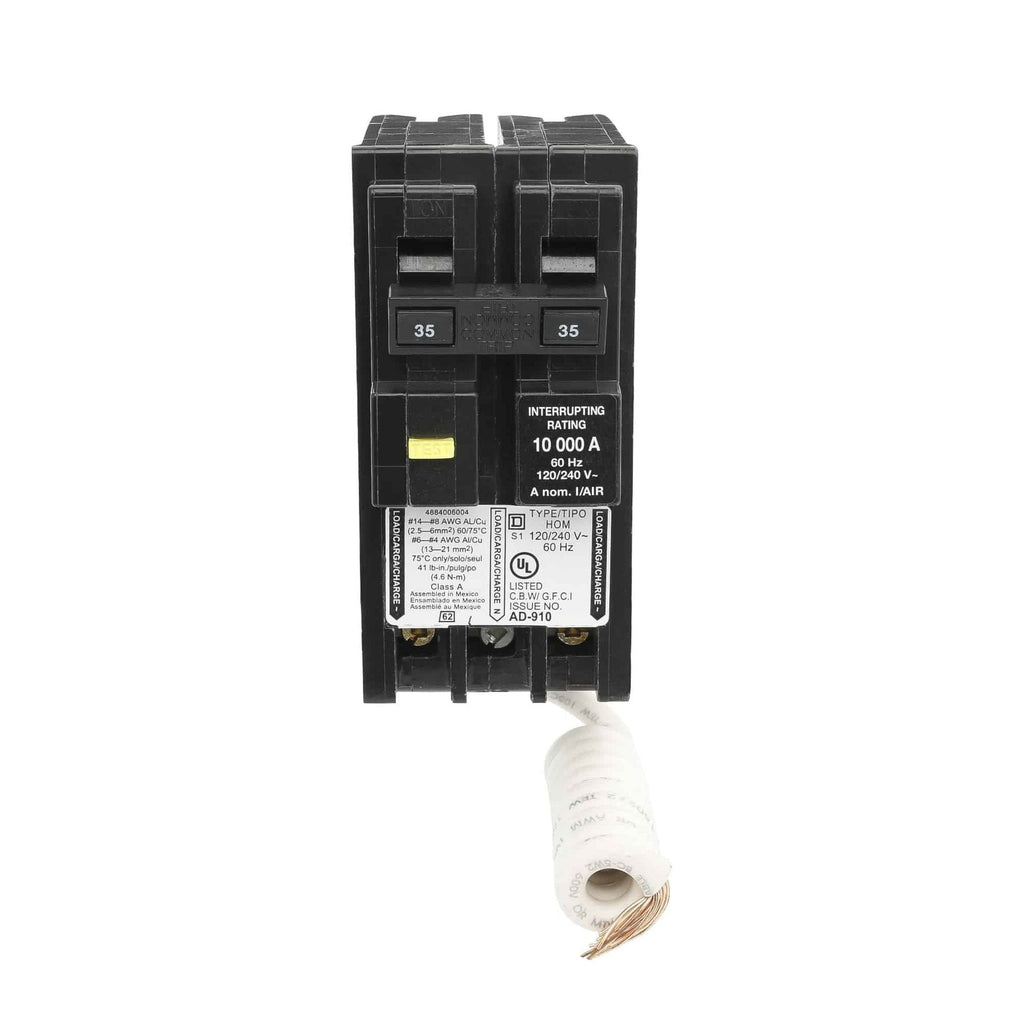

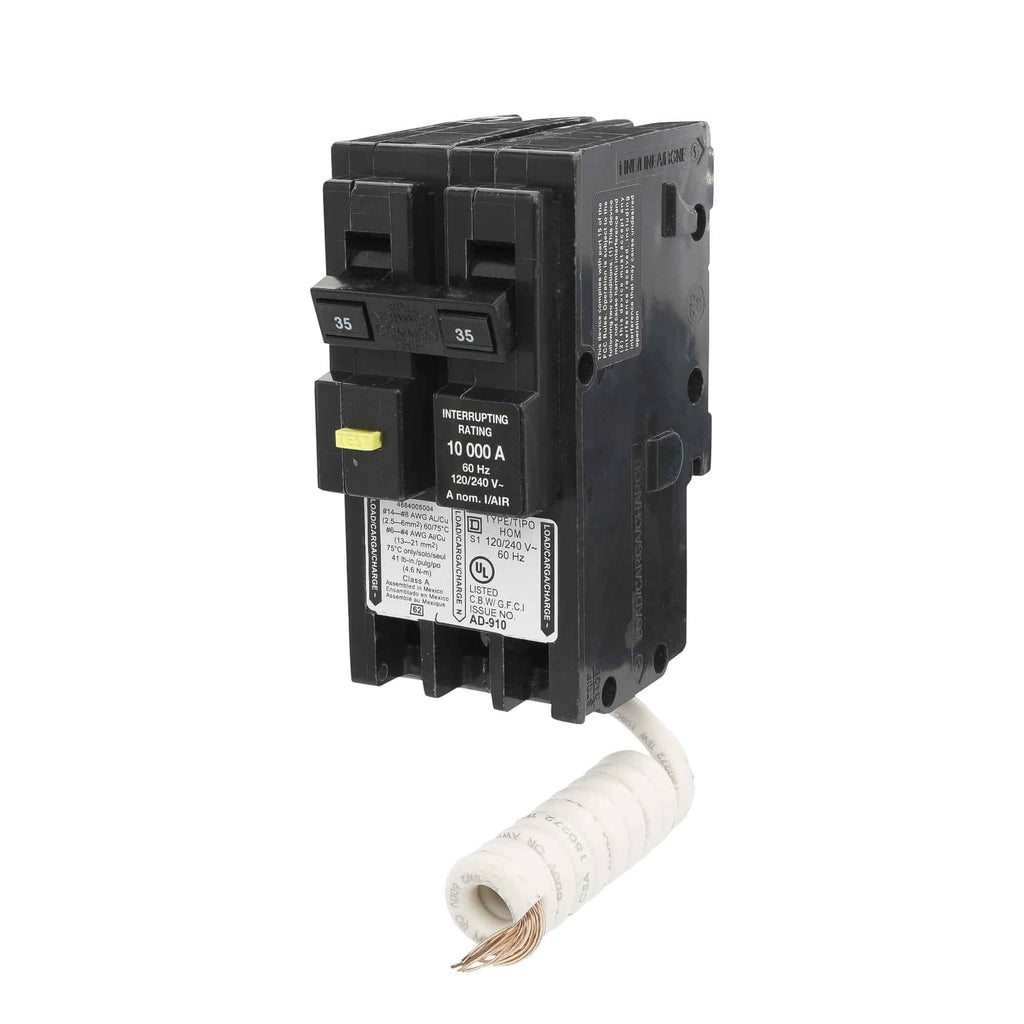

HOM235GFI is a Schneider Electric Square D Homeline 35 Amp 2 Pole Ground Fault Circuit Breaker designed for 120/240VAC applications with a 10kA interrupt rating.This mini circuit breaker features a plug-in mounting type, screw connector wire connection, and ground fault Class A protection. It supports wire sizes from 12 to 4 AWG and is UL and TAA certified, suitable for residential and light commercial electrical panels.
- Amperage Rating: 35 Amp
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Interrupt Rating: 10 kA
- Mounting Type: Plug-In
- Connection Type: Screw Connector
- Wire Size: 12 to 4 AWG
- Ground Fault Protection: Class A
- Series/Frame: Homeline
- Certifications: UL, TAA
- Dimensions: 4.23 in H x 2 in W x 2.98 in D
- Temperature Rating: 104°F
Specifications
- Part Number: HOM235GFI
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Type : HOM
- Voltage : 120/240VAC
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 10kAIC@240V
- Connection : Screw Clamp
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- Compatible Frames : HOM
Product Data
- UPC : 785901976486
- GTIN : 785901508205
- Country of Origin : Mexico
- Dimensions : 4.23 in (107.44 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 1.2
- Standards : HACR, RoHS
- Certification : UL
- Wire Size : AWG 12 to AWG 4 Aluminum
