Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
HOM2040U200TC

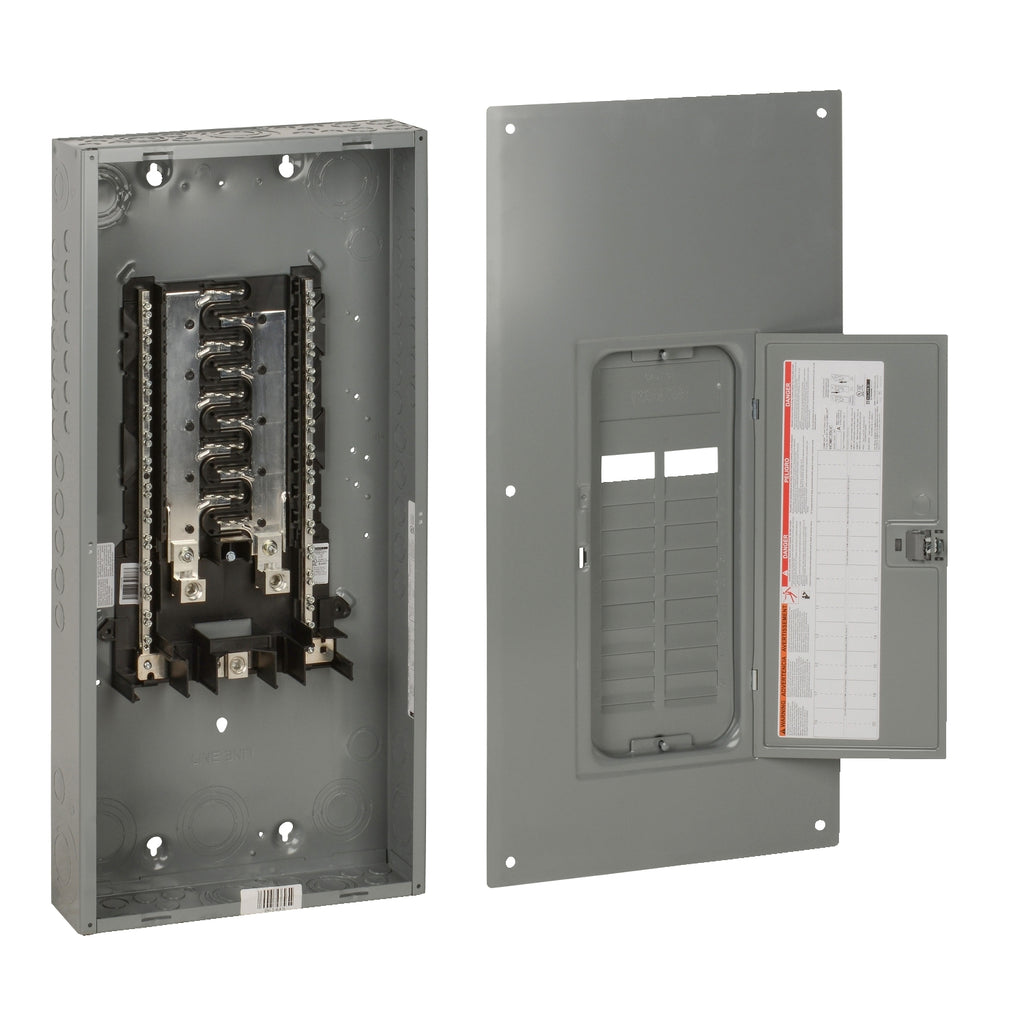

HOM2040U200TC is a Square D Homeline load center designed for 200 Amp, 120/240 Volt single-phase electrical systems with 20 spaces and 40 circuits capacity.This load center features a NEMA 1 indoor-rated enclosure with a universal main breaker, tin-plated aluminum busbars, and is compatible with Homeline plug-on neutral breakers. It supports copper and aluminum conductors from AWG 4 to 250 kcmil and includes a ground bar and combo cover for flexible installation.
- Manufacturer: Square D
- Part Number: HOM2040U200TC
- Amperage: 200 Amp
- Voltage: 120/240 Volt AC
- Phase: Single-phase (1 phase, 3 wires)
- Spaces: 20
- Circuits: 40
- Mounting Type: Indoor NEMA 1 enclosure
- Bus Material: Tin-plated aluminum
- Compatible Breakers: Homeline plug-on neutral breakers
- Conductor Range: AWG 4 to 250 kcmil copper/aluminum
- Includes ground bar and combo cover
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: HOM2040U200TC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : HOMELINE
- Type : HOM
- Voltage : 240
- Amperage : 200
- Compatible Frames : QOM
Product Data
- Country of Origin : United States
- Dimensions : 29.8 in (758 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 27.11
