2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
HOM2040L200TC

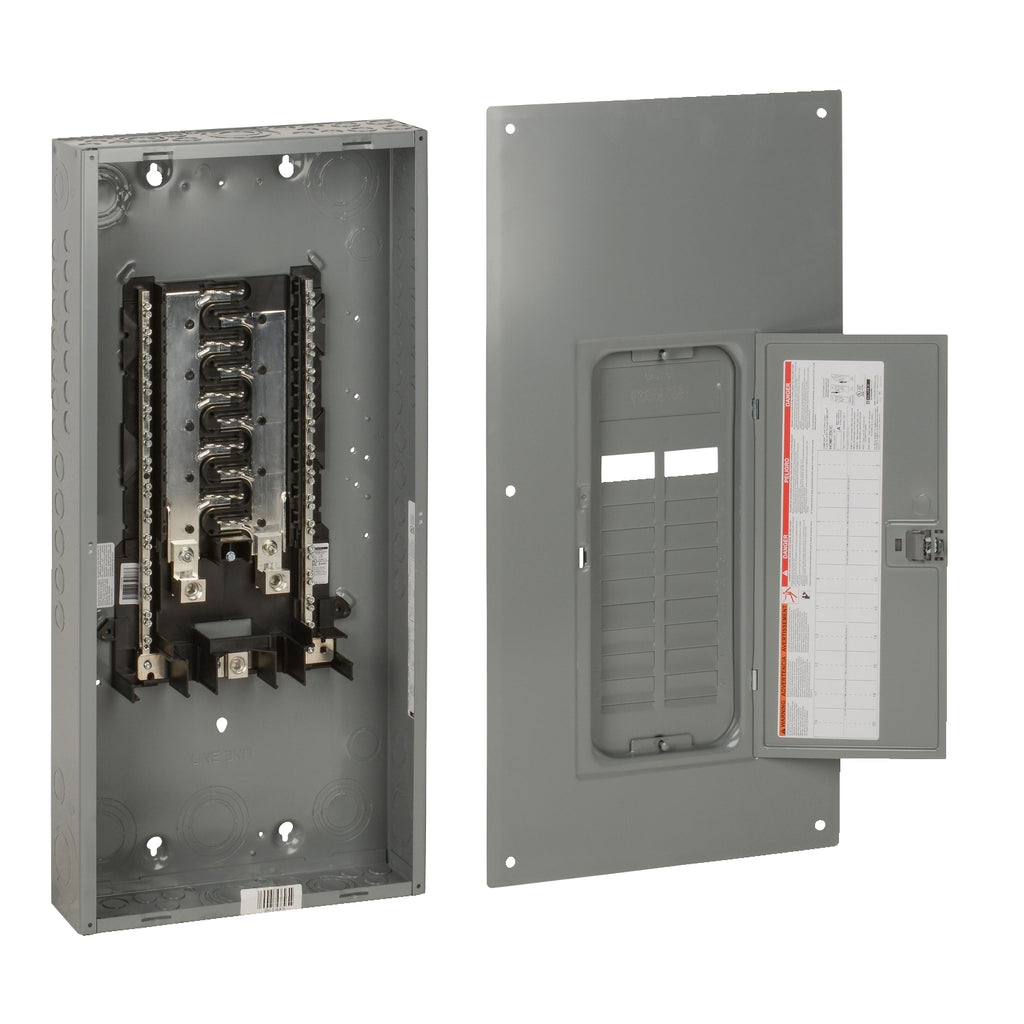

HOM2040L200TC is a Square D load center designed for residential and light commercial electrical distribution.This 1-phase, 3-wire load center features 20 spaces and supports up to 40 circuits with a 200 amp main rating. It has a voltage rating of 120/240 V AC and a maximum short circuit current rating of 10 kA. The enclosure is NEMA 1 rated, suitable for indoor use, and includes a ground bar and combination cover.
- Key Specifications
- Manufacturer: Square D
- Part Number: HOM2040L200TC
- Amperage: 200 A
- Voltage: 120/240 V AC
- Poles: 1 phase, 3 wires
- Number of Spaces: 20
- Number of Circuits: 40
- Interrupt Rating: 10 kA
- Enclosure Type: NEMA 1
- Includes Ground Bar and Combination Cover
- Part Number: HOM2040L200TC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 240
- Amperage : 200
- Nema Rating : 1
- Compatible Frames : QOM
- UPC : 785901307070
- Country of Origin : United States
- Dimensions : 29.8 in (758 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 27.45
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
